Vision Fitness X6600HRT Assembly Manual

Commercial elliptical trainer
Hide thumbs Also See for X6600HRT:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Owner's Manual

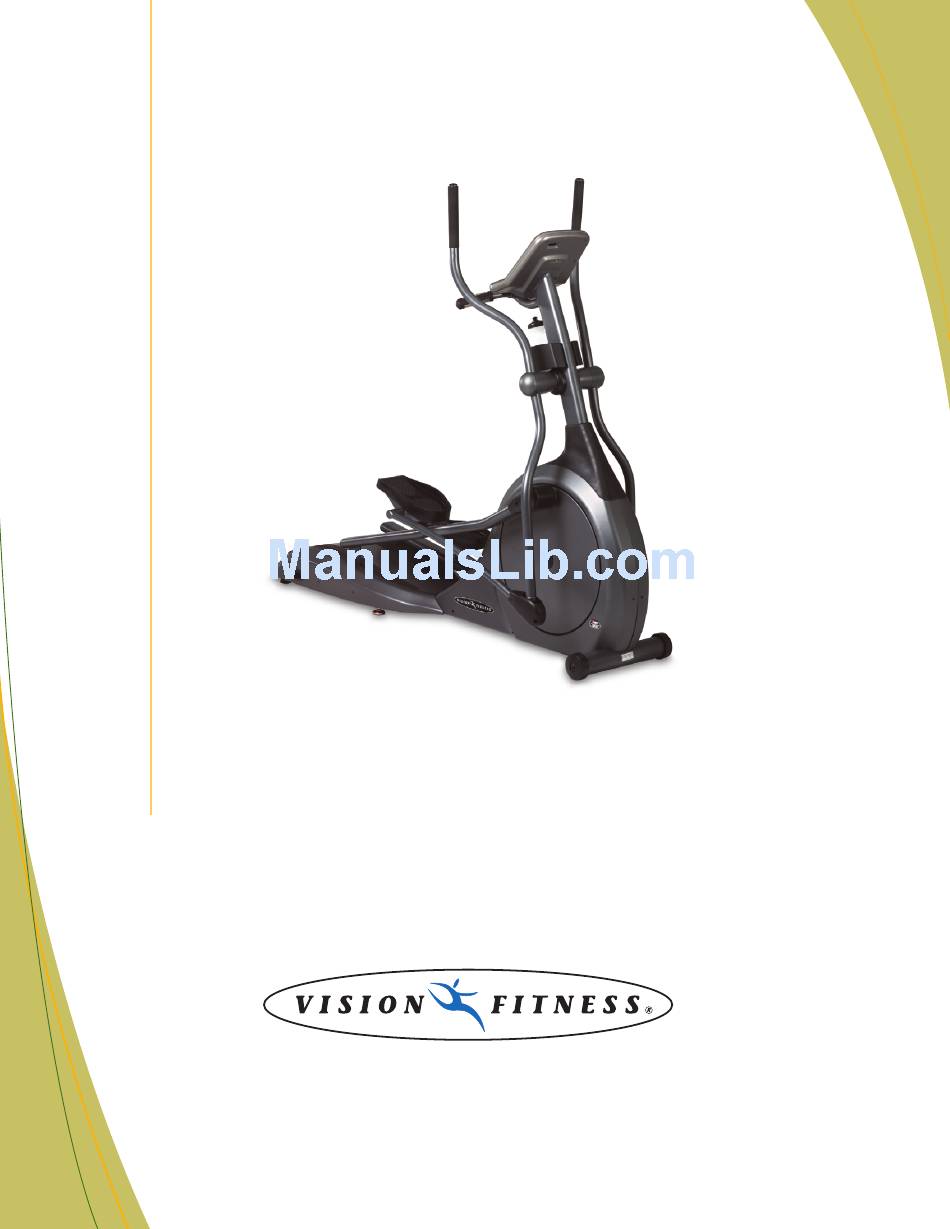

A s s e m b l y
G u i d e
X6600HRT
COMMERCIAL ELLIPTICAL TRAINER

Advertisement

loading

Related Manuals for Vision Fitness X6600HRT

Summary of Contents for Vision Fitness X6600HRT

  • Page 1 A s s e m b l y G u i d e X6600HRT COMMERCIAL ELLIPTICAL TRAINER...
  • Page 2 Also, during each assembly step, ensure that ALL screws are in place and partially threaded in before completely tightening any ONE screw. STEP A s s e m b l y G u i d e X6600HRT COMMERCIAL ELLIPTICAL TRAINER STEP STEP STEP...
  • Page 3 TOOLS & PARTS INCLUDED 6mm T-Handled Wrench 5mm T-Handled Wrench Screwdriver 8mm L-Shaped Wrench 10mm L-Shaped Wrench 17mm Socket Wrench PARTS BOX Console Mast Cover Water Bottle Heart Rate Chest Strap Link Arm Covers, Qty: 2 Pedal Support Brackets, Qty: 2 Dual Action End Caps, Qty: 2 Color-coded Hardware Bags Owner’s Guide...

  • Page 4: Hardware Included

    HARDWARE INCLUDED ORANGE BAG BLUE BAG M8x10L SocketHead CapScrew M10x70L CapScrew Quantity: 4 Quantity: 2 M8x20L Screw M8x80L SocketHead CapScrew Quantity: 2 Quantity: 1 PINK BAG M20x29x1.5T Wavy Washer Quantity: 2 M5x12L Screw M8x20L CapScrew Quantity: 6 Quantity: 8 M10x50L Screw Quantity: 2 M5x10x1T Washer M10 Nut...
  • Page 5 ORANGE BAG STEP • Place the console mast boot on the end of the console mast. • Connect the wire tie that exits the bottom of the console mast to the wire harness that sits in the bracket at the top of the frame.
  • Page 6 STEP BLUE BAG STEP • Place a wavy washer (M20) on the axle located under the foot plate of the right lower link arm. • Slide the axle of the lower link arm into the bracket located on the top of the right pedal arm.
  • Page 7 PINK BAG STEP • Connect the right dual-action arm to the right console mast rotation housing, being sure to line up the holes. Secure the dual-action arm in place with four screws (M8x20L) and tighten with the 6mm T-handled wrench. Snap the dual-action end cap into place.
  • Page 8 Insert the water bottle. 500 South CP Avenue • P.O. Box 280 • Lake Mills. WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com ©2004 Vision Fitness. All Rights Reserved. 6.04 Part #Z66EP67-AG AG18.32PRD REV1...
