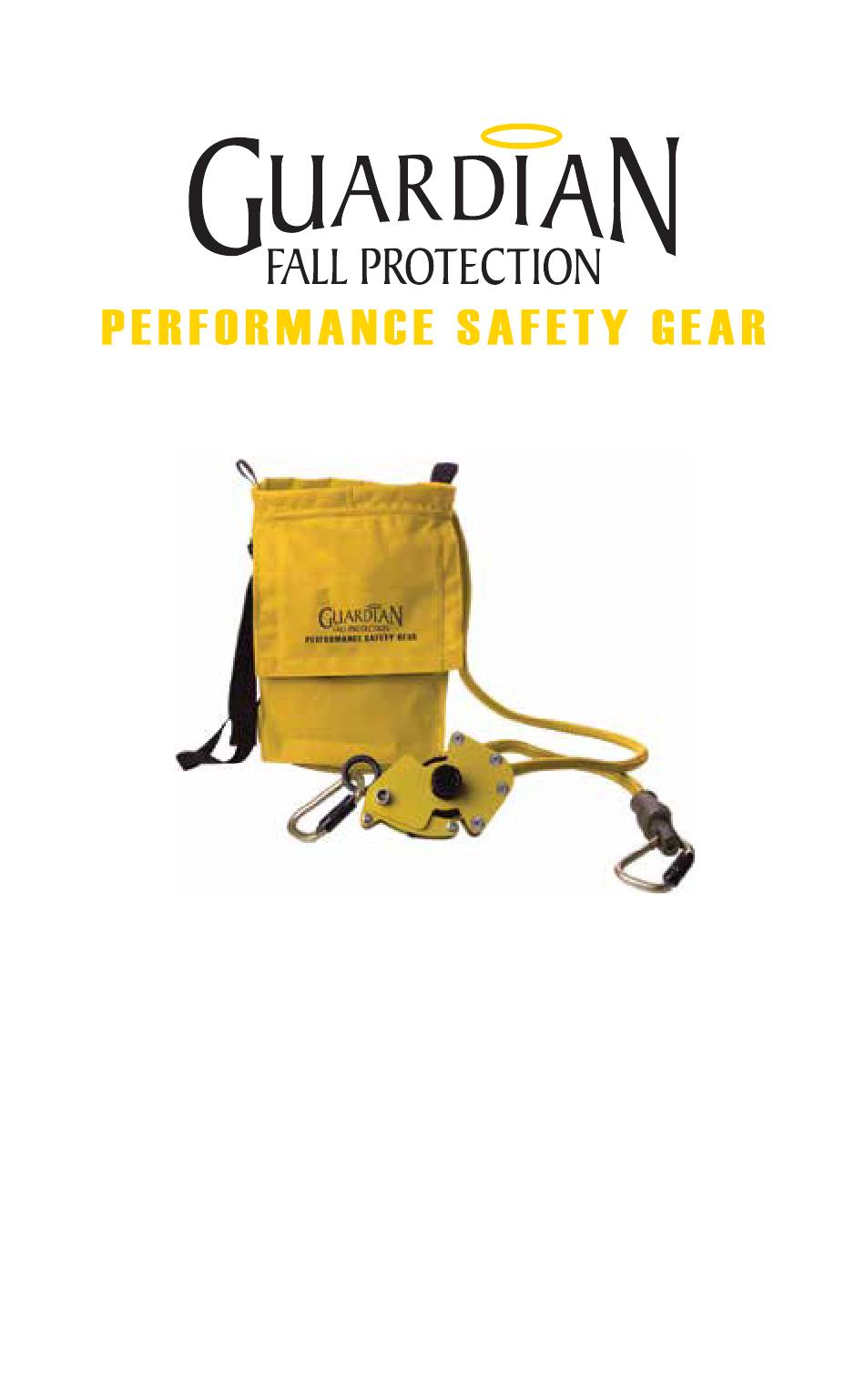

- Page 1 Product Name: 4-Person Rope HLL Part #: 30800 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment!
-
Page 3: Table Of Contents
Notes Introduction Thank you for purchasing a Guardian Fall Protection 4-Person Rope HLL. This manual must be read and understood in its entirety, and used as part of an employee training program as required by OSHA or any applicable state agency. -
Page 4: Applicable Safety Standards
User Information Date of First Use: Serial #: Trainer: User: Applicable Safety Standards When used according to instruction specifications, this product meets or exceeds all applicable OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.1-2007, and ANSI A10.32-2012 standards for fall protection. -
Page 5: Safety Information
Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment. - Page 6 Equipment that fails inspection in any way must immediately be removed from use, or repaired by an entity approved by the manufacturer. No on-site repair of equipment unless explicitly permitted by Guardian Fall Protection. Equipment subjected to forces of fall arrest must immediately be removed from use.
-
Page 7: Maintenance, Cleaning, And Storage
Maintenance, Cleaning, and Storage Repairs to 4-Person Rope HLLs can only be made by a Guardian Fall Protection representative or an entity authorized by Guardian. Contact Guardian for all maintenance and repair needs at: 1-800-466-6385. If a 4-Person Rope HLL fails inspection in any way, immediately remove it from service, and contact Guardian to inquire about its return or repair. -
Page 8: Product Specific Applications
Product Specific Applications Use of equipment in unintended applications may result in serious WARNING injury or death. Maximum 1 attachment per connection point. Personal Fall Arrest: 4-Person Rope HLLs may be used to support a MAXIMUM 4 Personal Fall Arrest Systems (PFAS) for use in Fall Arrest applications. Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs. -
Page 9: Limitations
ONLY. anchorage (19’ total) Height of harness dorsal D-ring from worker’s feet (6’ total) Safety factor (3’ total) 30800 Fall Clearance Table 25’ 24.1’ 23.9’ 23.4’ 22.9’ 22.4’ 21.9’ 21.4’ 20.9’ Minimum 20.4’... - Page 10 Swing Falls: Prior to installation or use, make considerations for eliminating or minimizing all swing fall hazards. Swing falls occur when the anchor is not directly above the location where a fall occurs. Always work as close to in line with the anchor point as possible. Swing falls significantly increase the likelihood of serious injury or death in the event of a fall.
- Page 11 Correct Anchorage Positioning: This chart details allowable working zones required to reduce risk of swing falls and improper side loading. ALWAYS adhere to information specified by chart. Anchor Distance Working Distance Working Angle From Along Roof Edge From Leading Edge (Y) (Either Direction) (X) Perpendicular (Ø) 6’...
-
Page 12: Components And Specifications
Components and Specifications Materials: Polyester and powder-coated aluminum. Drum and Tensioner Housing Rope Bag 16 mm, Low Stretch, Double-Braided, Polyester Rope. Carabiners... -
Page 13: Installation And Use
Installation and Use Prior to use, plan your system: 1. Ensure all PFAS equipment is selected and deemed compatible by a Competent Person. 2. Eliminate or minimize all risk of swing fall. 3. Determine desired location for HLL; ensure location is free of debris, rot, decay, cracking, and hazardous materials. -
Page 14: Labels
Labels 1--3/4” 1--3/4” INSPECTION GRID User must inspect prior to EACH use. Competent Person must complete formal inspection every 6 months. Competent Person to inspect and initial. 1-800-466-6385 6305 S. 231st St. www.guardianfall.com Kent, WA 98032 Date of First Use: __________________. Product lifetime is indefinite as long as Prior to use, read and understand all manufacturer’s instructions provided with... -
Page 15: Inspection Log
Inspection Log User must inspect prior to EACH use. Competent Person other than user must complete formal inspection at least every 6 months. Competent Person to inspect and initial. Date of First Use: __________________. Product lifetime is 5 years from Date of First Use, or, if not recorded, from Date of Manufacture, as long as it passes pre-use and Competent Person inspections.
