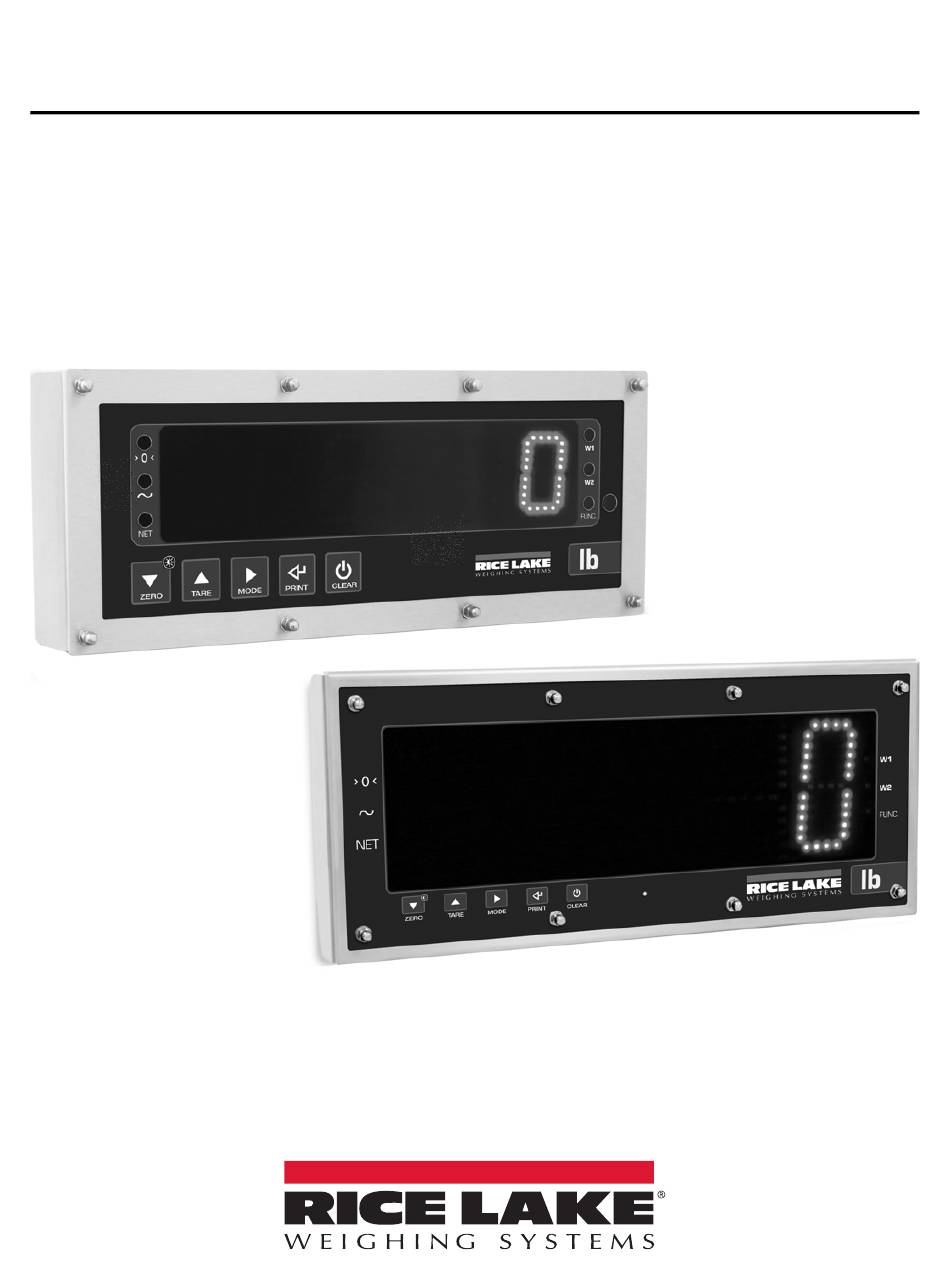

- Page 1 LaserLT-60 and LaserLT-100 Remote Displays Technical Manual LaserLT-60 LaserLT-100 January 29, 2021 PN 193826 Rev F...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
5.0 Specifications ............... . . 12 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 LaserLT-60 and LaserLT-100 Remote Displays Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars www.RiceLake.com Visit our website...
-
Page 5: Introduction
Introduction Introduction The purpose of this manual is to help the technician understand the LaserLT-60 and LaserLT-100 Remote Display’s functioning modes, key functions, display indications, setup and configuration. Manuals and additional resources are available from the Rice Lake Weighing Systems website at www.ricelake.com... -
Page 6: Product Dimensions
LaserLT-60 and LaserLT-100 Remote Displays Product Dimensions Product Dimensions LaserLT-60 410 mm 123 mm 16.14'' 4.84'' 165 mm 6.49'' LaserLT-100 101 mm 430 mm 16.93'' 3.98'' 185 mm 7.28'' Standard Mounting 60.0 mm 10.5 mm Bracket for LaserLT-60 2.36'' 0.41'' and LaserLT-100 10.0 mm... -
Page 7: Product Displays

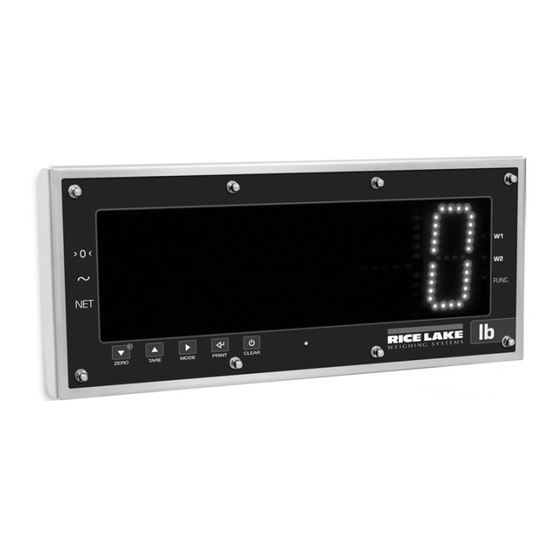

Introduction Product Displays The front panel of the LaserLT-60 Remote Display has a six digit display that is 2.4" high, six LED annunciators and five function keys. The front panel of the LaserLT-100 Remote Display has a six digit display that is 3.9" high, six LED annunciators and five function keys. - Page 8 LaserLT-60 and LaserLT-100 Remote Displays Net, W1 and W2 require setting values in Adv.CEd. The labeled default unit of measurement is pound. Note A kilogram sticker label is provided with the unit to indicate a change in units of measurement.
-
Page 9: Installation
LaserLT-60 and LaserLT-100 Remote Displays Installation This section provides an overview of LaserLT-60 and LaserLT-100 installation. Install the instrument on a stable, vibration free, flat surface. Disconnect from power source to completely power off the instrument. The back mounting bracket is for vertical mounting. An optional side mount for horizontal surfaces is available for the LaserLT-100. -
Page 10: Configuration
Configuration Configuration This section provides an overview of LaserLT-60 and LaserLT-100 configuration. Quick Setup Menu Press when the firmware version is displayed during power on to enter the Setup (Quick Setup) menu. The Quick Setup menu contains options for remote display configuration. -
Page 11: Rs-485/422 And Rs-232 Access
LaserLT-60 and LaserLT-100 Remote Displays RS-485/422 and RS-232 Access Access to RS-485/422 and RS-232 allow for hardware to connect to the LaserLT-60 and LaserLT-100 Remote Displays through the specific port selected. Software selection determines the communication carrier used. RS-232 is the default carrier. -
Page 12: Manual Configuration Using W.repe
W.rEPE is a configurable mode that allows identification and location of data in the strain. The W.rEPE parameter is selected, it allows for the manual configuration of parameters to parse string data. The manual configuration is defaulted to read the Rice Lake continuous format.The Rice Lake continuous format is defined as: Figure 3-3. STR-1 Rice Lake Stream Data Format W.rEPE... -
Page 13: String Example
For example, if the received string is bpwwwwwwwLGS+CR+LF: Received String String Position Figure 3-5. Rice Lake Continuous Data Format Example 3.3.2 Advanced Parsing Parameters Advanced Parsing Parameters utilize logical operators and bit masking to set the individual bits of the string to read the sign, stability, zero and over/under load and units. - Page 14 83 (ASCII code of character S). When character and 255 (character remains unchanged) is equal to ASCII of S (83) the weight is considered stable. An example for standard string parameters of the Rice Lake continuous format: Figure 3-7. STR-1 Rice Lake Stream Data Format <STX><POL><wwwwwww>...
-
Page 15: Semi Auto Learn Using Repe.in
LaserLT-60 and LaserLT-100 Remote Displays Semi Auto Learn Using rEPE.in rEPE.in is a semi-automatic mode to establish the start and end positions of the weight value. rEPE.in has no parameters and does not read annunciators for units, mode, or status. This parameter is in the PCMode. -
Page 16: Troubleshooting
Troubleshooting Troubleshooting This section provides an overview of LaserLT-60 and LaserLT-100 troubleshooting. Diagnostics Menu The diAG (Diagnostics) menu provides device information: F.modE SEtUP diAG PrG.UEr disPLA kEyb CtS.St. SEr.nun S.radio output inputs AN out Figure 4-1. Diagnostics Navigation Menu Parameter Definition Program Version –... -
Page 17: Specifications
Operating Temperature Annunciators for NT, Stability, COZ Legal 14°F–104°F (-10°C–40°C) Operator Interface Industrial -40°F–120°F (-40°C–49°C) Display LaserLT-60 – 2.4'' high (60 mm) Storage Temperature -22°F–179°F (-30°C–80°C) LaserLT-100 – 3.9'' high (100 mm) Humidity 85% (non-condensing) Keypad Five function keys Power... - Page 19 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
