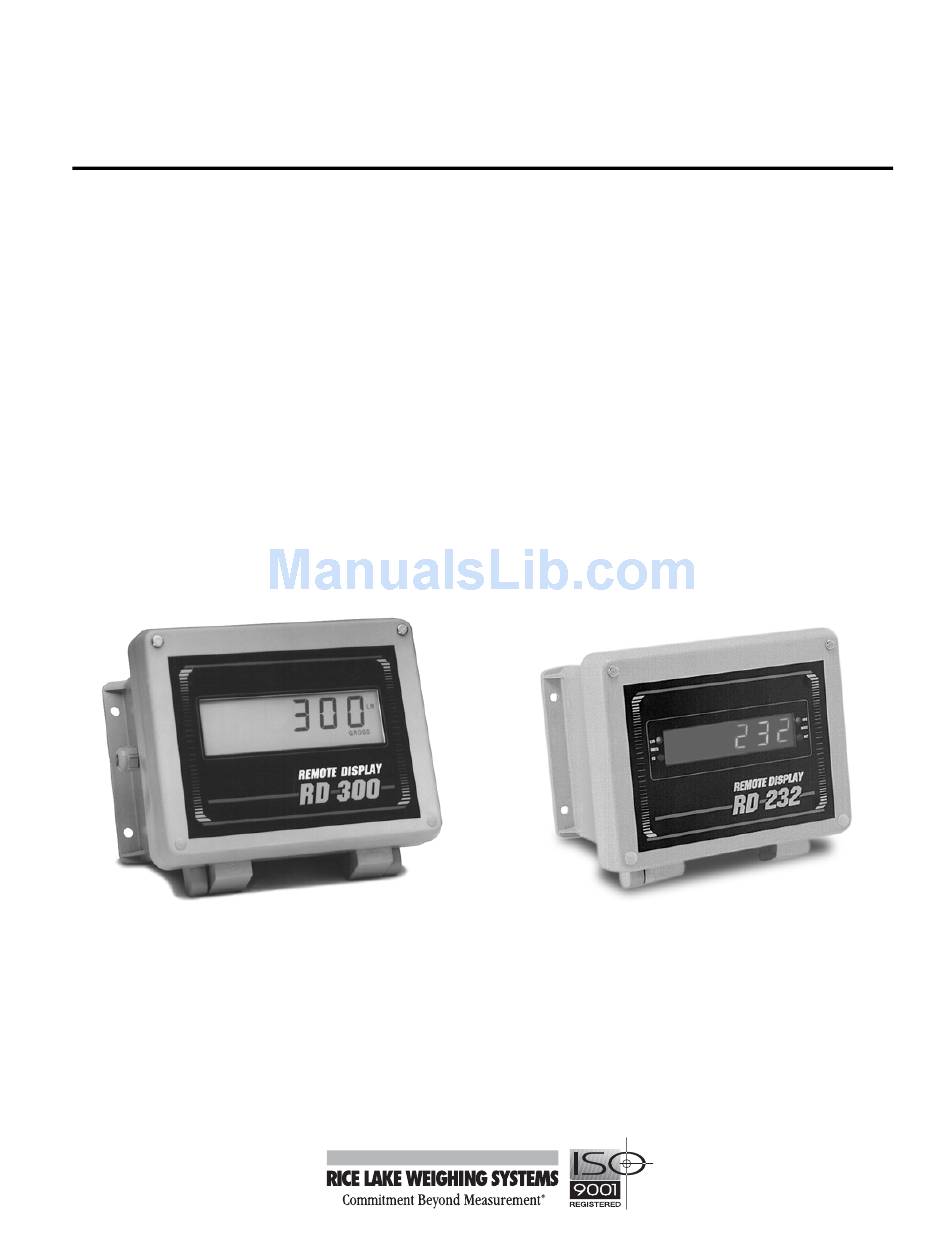

- Page 1 RD-300/RD-232 Remote Displays Version 2.1 Installation/Operation Manual 33210...
- Page 2 920i Installation Manual...
-
Page 3: Table Of Contents
2.5 Powering up With the RD-300/RD-232 ........ - Page 4 RD-300/232 Installation & Operation Manual...
-
Page 5: Introduction
40°C to -25°C (104°F to -13°F). The RD-300 can monitor up to four scales (S1, S2, S3, S4), and is available for either AC or DC power. The following diagram illustrates the front panel of an RD-300 remote display. -
Page 6: Scale Indicator Formats
1.1.2 Standard Hardware The standard RD-300 or RD-232 is comprised of a single circuit board housed in a JIC standard 8" X 6" Fiberglass Reinforced Plastic (FRP) enclosure that is NEMA 4X rated. Standard units are powered by either 117 VAC 50/60 Hz line power or DC voltages of 8.2 - 18 VDC. Voltages as low as 6.0 VDC can be used to power the unit with the addition of one jumper. -
Page 7: Installation
(not furnished) and mount the enclosure securely. The enclosure is hinged on the bottom side of the box. The installation environment is not critical, but the RD-300/RD-232 should be located as far as practical from major sources of electromagnetic interference (EMI) or radio frequency interference (RFI). Also, care must be taken to ensure that the front panel display is easily visible. -
Page 8: Electrical Service Connections
All Models - AC - Service You will need a source of 117 VAC ± 10% 60 Hz. 1 Phase to power the RD-300/RD-232. The standard unit has an 8' #18-3 AWG polarized line cord. This can be plugged into a standard duplex receptacle if the RD-300/RD-232 is used in a dry area. -
Page 9: Indicator Setup
Common indicators are discussed below. • Rice Lake IQ series (600-700), IQ plus series (810 and 310*) - All of the IQ and IQ plus series indicators work with the setup for continuous output and have the Consolidated Controls output. The IQ plus 810 set in the stream mode has the same format as the Condec indicators. - Page 10 03/10/00. Use the Universal receiver for this meter. • Cardinal 738 and 748, Rice Lake IQ plus 310* - These indicators can be set up for either the “current loop” or “RS232”, using the “computer” setting (S3=10001010). The baud rate can be 1200, 2400, 4800, or 9600.
- Page 11 RD-300/RD-232, if , and only if, the output formatting exactly matches what the display has been programmed to accept. If a computer or terminal is going to be used with an RD-300/RD-232, the universal format is probably the easiest to use if the data is sent continuously. Several other meters have been interfaced for use with the RD-300/RD-232.
-
Page 12: Serial Data Inputs
It cannot read data from meters not included in this list unless you use universal mode or the formatting exactly matches one on the list (or you have a custom program). Set up the RD-300 on the bench with the meter you intend to use before taking it to the installation site. -
Page 13: 20 Ma Active Current Loop - Sw2-8 On
5. Insert the wire and release the lever. The 20 mA receiver in the RD-300/RD-232 is an 6. Test the tightness by gently pulling on the HP-4200 high speed current loop receiver. The photo wires. -
Page 14: Configuring The Rd-300/Rd-232
2.4.4 Configuring the RD-300/RD-232 The RD-300/RD-232 must be properly configured. To do this, you must know: • Which indicator? • What Baud Rate? • How does the display handle a loss of signal? • Are you going to use the universal mode? •... - Page 15 Tare weight only Table 2-6. SW2-6/7 Displayed Weight Settings The RD-300/RD-232 will display the data selected by SW2-6 and 7 regardless what is showing on the scale indicator. IF YOU ARE USING ANY OTHER METER SETTING, USE THE FOLLOWING SWITCH DATA ON PAGE 12.
- Page 16 SW2-5, either the last valid weight or all dashes. If no valid data is received after ten seconds, the RD-300/RD-232 initiates a power on reset, clear all data, read the switches, and waits for new data. For these meters SW2-4,5,6 and 7 have the following meanings:...
-
Page 17: Powering Up With The Rd-300/Rd-232
Make sure all wiring is per the manual and is properly terminated. APPLY POWER- The RD-300/RD-232 enters the power on clear mode. All status switches are read at this time and the unit is configured for baud rate, indicator type, and input signal type. The RD-300/RD-232 display goes through a power up sequence which provides valuable information about the operating condition and setup. - Page 18 If the RD-300/RD-232 is located in a wet, damp, or cold environment, it is suggested to use a silica gel desiccant or better yet, an antioxidant “snowball” made by Hoffman Enclosure Company. These products in the enclosure will greatly increase product reliability and performance.
-
Page 19: Mounting Procedure For Panel Mount Rd-300/232
Mounting Procedure for Panel Mount RD-300/232 Use the following procedure if panel mounting the RD-300/232. A template for measuring is shown on page 17. 1. Choose a desired location for mounting the RD-300/232. Make sure there are no AC wires or other obstructions behind the area to be cut out. - Page 20 RD-300/RD-232 Installation & Operation Manual...
- Page 21 Mounting Procedure for Panel Mount RD-300/232...
- Page 22 RD-300/RD-232 Installation & Operation Manual...
-
Page 23: Appendix
Appendix RD-300 Replacement Parts The following table list the replacement parts for the RD-300 remote display. Part Number Description Quantity 32724 " Board, display/CPU RD-300 R2N 1 LCD serial 32725 " Board, display/CPU RD-300 R2B 1 LCD w/ backlight serial 32723 Microprocessor, RD-300/MPU revision 2.1... - Page 24 RD-300/RD-232 Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for one year.
