Rice Lake LaserLight2 ConnexLink 167091 Installation Instructions Manual

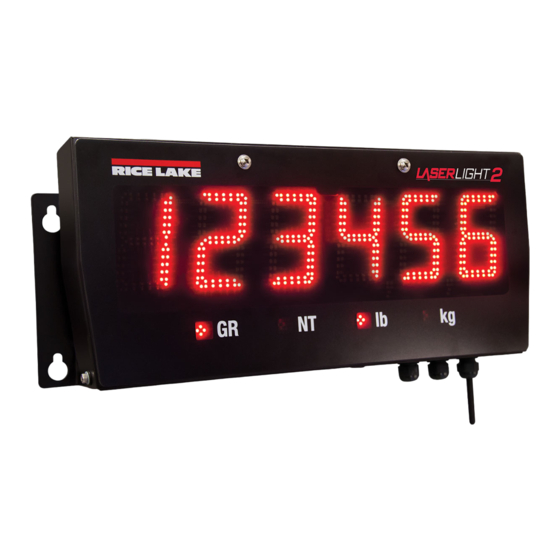

LaserLight2 Remote Display
TM
™
ConnexLink
Available for PNs 167091, 167092 and 167093
The ConnexLink Wireless Radio allows communication between the LaserLight2 Remote Display and an indicator with
matching radio installed.
See the LaserLight2 Installation Manual, PN 175775, for general installation, configuration and calibration information.
Manuals and additional resources are available from the Rice Lake Weighing Systems website at
Warranty information can be found on the website at
The LaserLight2 has no on/off switch. Before opening the unit, ensure the power cord is disconnected from the
WARNING
power outlet.
Item
The ConnexLink Wireless Radio can be installed in the 4", 6" or 4-SG LaserLight Remote Display. Use the following steps to
install the ConnxLink Wireless Radio option;
Some procedures described in this manual require accessing the inside of the remote display enclosure.
These procedures are to be performed by qualified service personnel only.
WARNING
To ensure that the correct radio is installed with the remote display and the indicator, each radio is marked with
either CLIENT and SERVER.
IMPORTANT
Client is to be installed with the remote display and the Server is to be installed with the indicator.
September 2, 2020
Wireless Radio 900 MHZ Installation Instructions

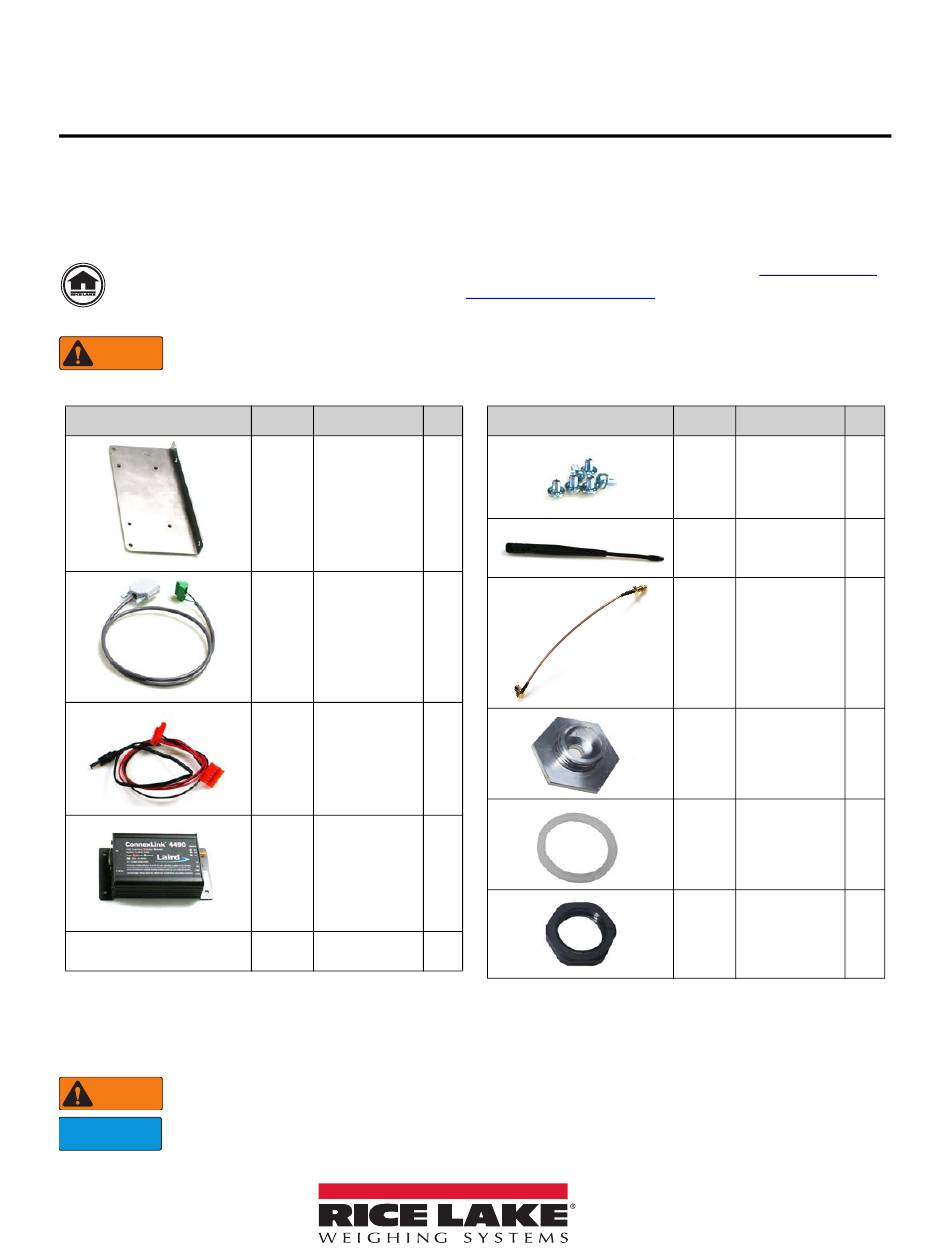

Part No. Description
Bracket Assembly,
175053
ConnexLink Radio
Cable Assembly,
180683
Transceiver RF
Cable Assembly,
180684
Power Supply
Pair Transceivers,
129662
RF
Cable Tie, 3 inch
15631
nylon
Table 1. ConnexLink Wireless Radio Kit (PN 175052) Parts List
www.ricelake.com/warranties
QTY. Item
1
1
1
1
1
www.ricelake.com
Part No. Description QTY.
Screw, Mach 6-
14839
32NCx1/4
102131 Antenna
Antenna Cable
166240
Extension
202131 Bulkhead Adapter
1/2 NPT Nylon
30376
Seal Ring
1/2 NPT, Black
15630
Locknut
PN 180704 Rev A
6
1
1
1
1
1
