WARNING
Electric shock
Death or serious personal injury
- As a precaution, connect the
product only to a properly grounded
receptacle.
- We recommend that you connect
the pump to an electrical circuit
with a Ground Fault Circuit
Interrupter (GFCI) that meets
governing codes and regulations.
The electrical connection must be carried out in
accordance with local regulations and follow the
National Electrical Code (USA) and the Canadian
Electrical Code. The pump must be grounded. The
operating voltage and frequency are marked on the
nameplate. Make sure that the motor is suitable for
the power supply on which it will be used.
Power supply
• 1 x 115 V, 60 Hz
• 1 x 230 V, 60 Hz.
To connect the pump for manual operation, insert the
pump plug into a wall socket. If a float switch is
included for automatic operation, it will be of the
"piggy-back" design. Insert the float-switch plug into
the wall socket, and insert the pump plug into the
back of the float-switch plug.
Wall socket
Float-switch plug
("piggy-back")

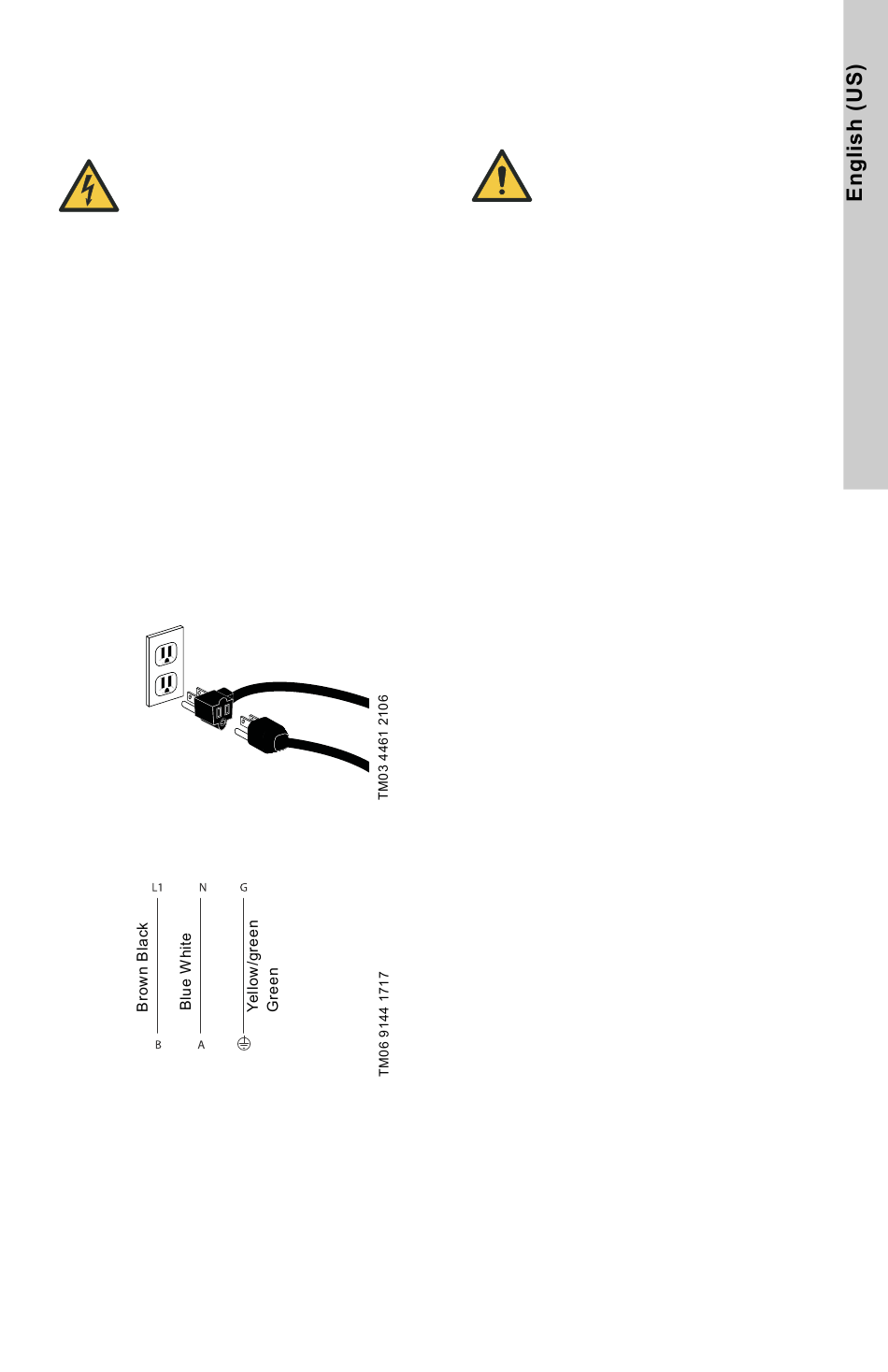

Fig. 6 Pump and float-switch plugs
Power cable leads
Motor connections
Fig. 7 Wiring diagram
Motor protection
The Unilift AP B pumps have built-in thermal
overload protection and require no additional motor
protection. If the motor is overloaded, it stops
automatically. When cooled to normal temperature,
the motor starts automatically.
Pump plug

5. Starting up the product

DANGER
Sharp elements
Death or serious personal injury
- Do not touch the inside of the
pump while the pump is running.
- The inlet strainer must always be
fitted to the pump during operation.
