How to configure an Anybus AS-Interface Master module
SCM-7032-036
Rev 1.02
6.2

Monitoring using ModScan32

To verify that the data is exchanged between the two networks using the Anybus X-gateway, the program
ModScan32 is used.
Note: To use ModScan for testing is it is required that the gateway has an Ethernet connection.

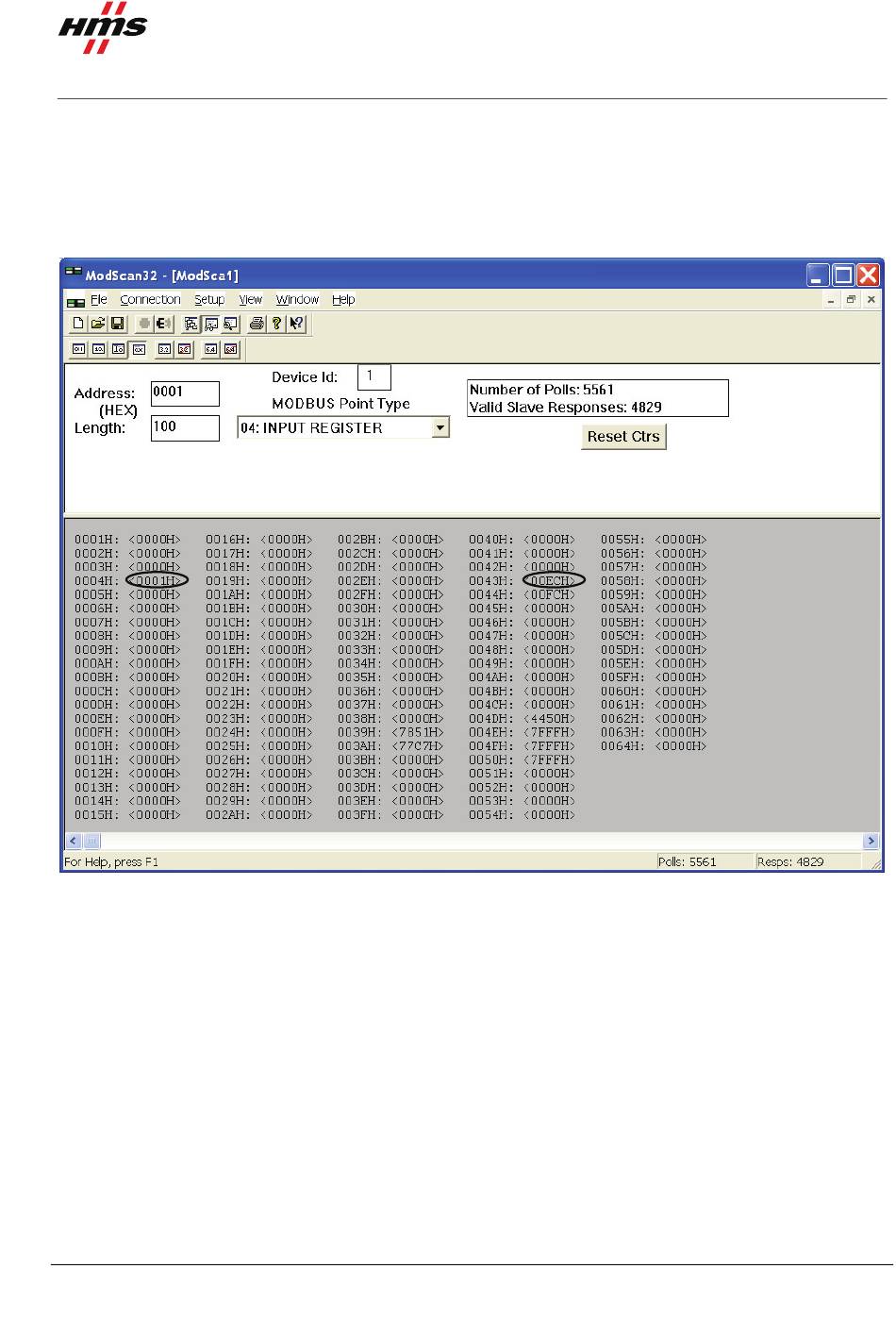

Figure 18 Monitoring the I/O data using ModScan32.
The window above shows the I/O data from the AS-Interface nodes. The marked data is the digital I/O data
of slave 7 (register 0004H) and analogue I/O data from slave 41 (register 0043H). The data values are
corresponding to the data values seen in Figure 16 and Figure 17.
