How to configure an Anybus AS-Interface Master module
SCM-7032-036
Rev 1.02

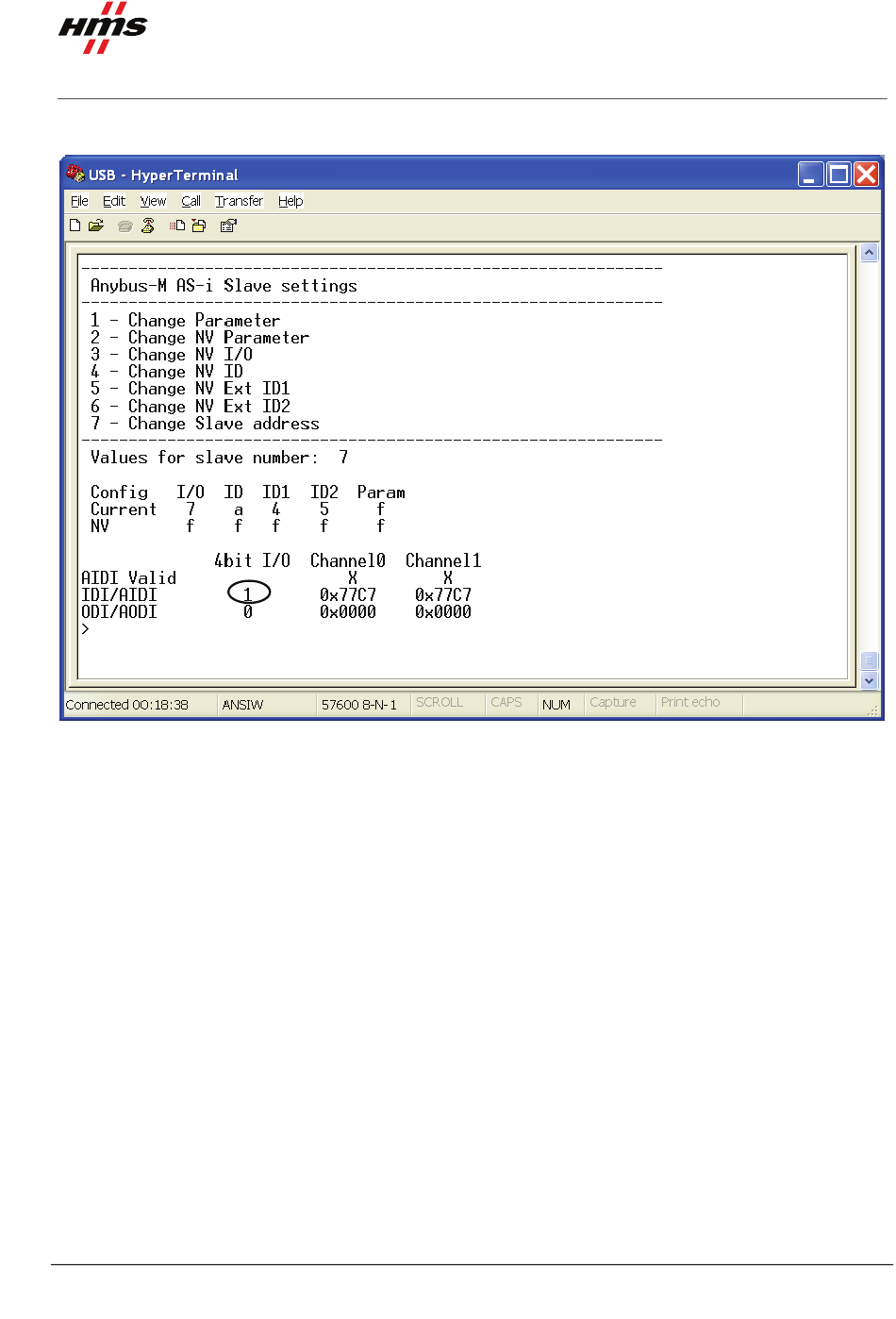

In this case slave 7 is monitored. The marked data is digital input data.
Figure 17 Monitoring digital I/O data Master Terminal Interface.
www.anybus.com
HMS Industrial Networks AB
Page 17 (19)
