3 Changing to Configuration mode
Enter 5 in the main menu and change the mode to Configuration mode.

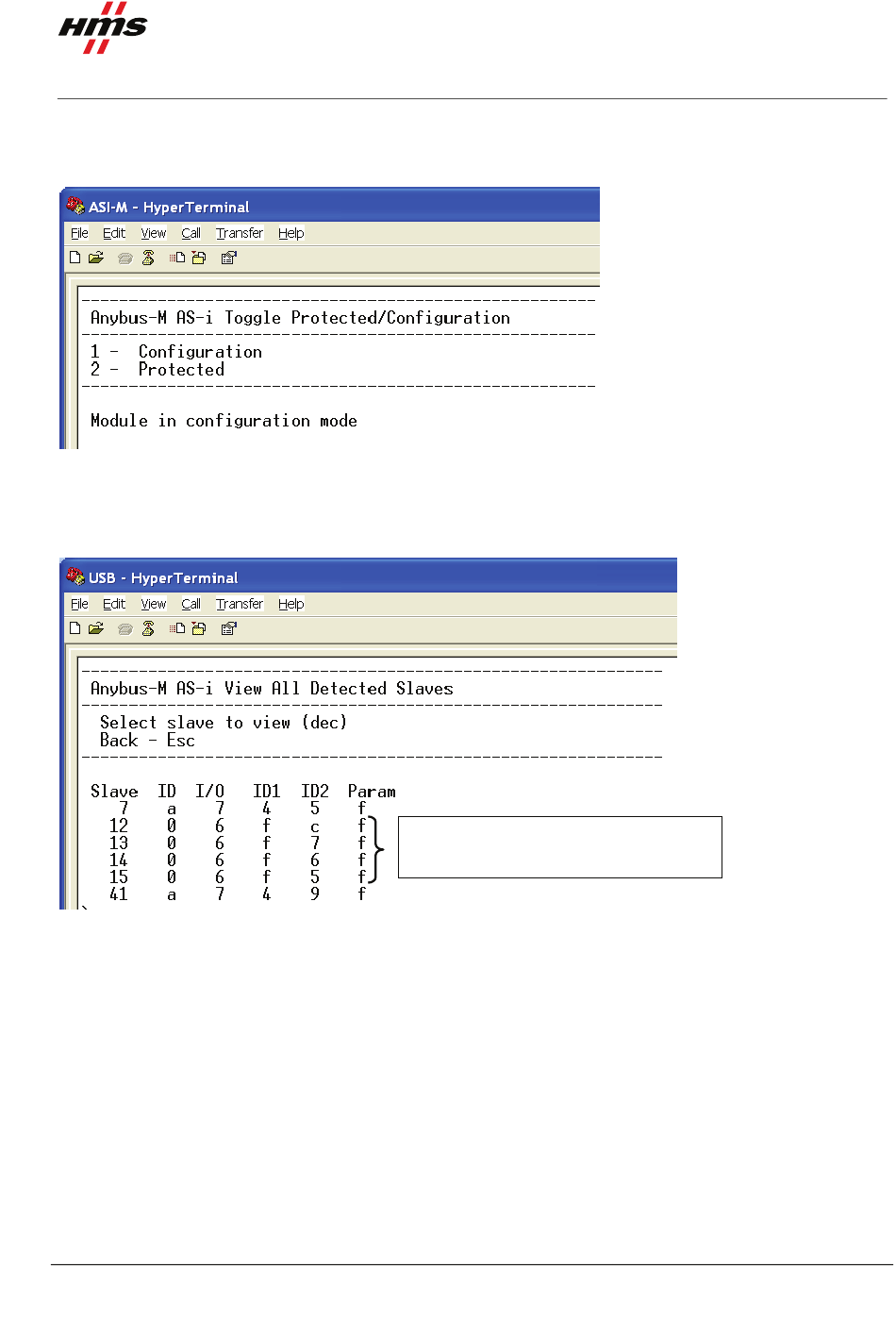

Figure 8 Changing the mode of the AS-Interface Master.
4 Viewing all detected slaves.
Enter 3 in the main menu to view all detected slaves.
Figure 9 Viewing all detected slaves on the AS-Interface network.
In this case 3 slaves are detected. The slaves 7 and 41 use both digital and analogue data. Slave 12 uses
digital data only. Enter the number of the individual slave to view the settings in detail.
