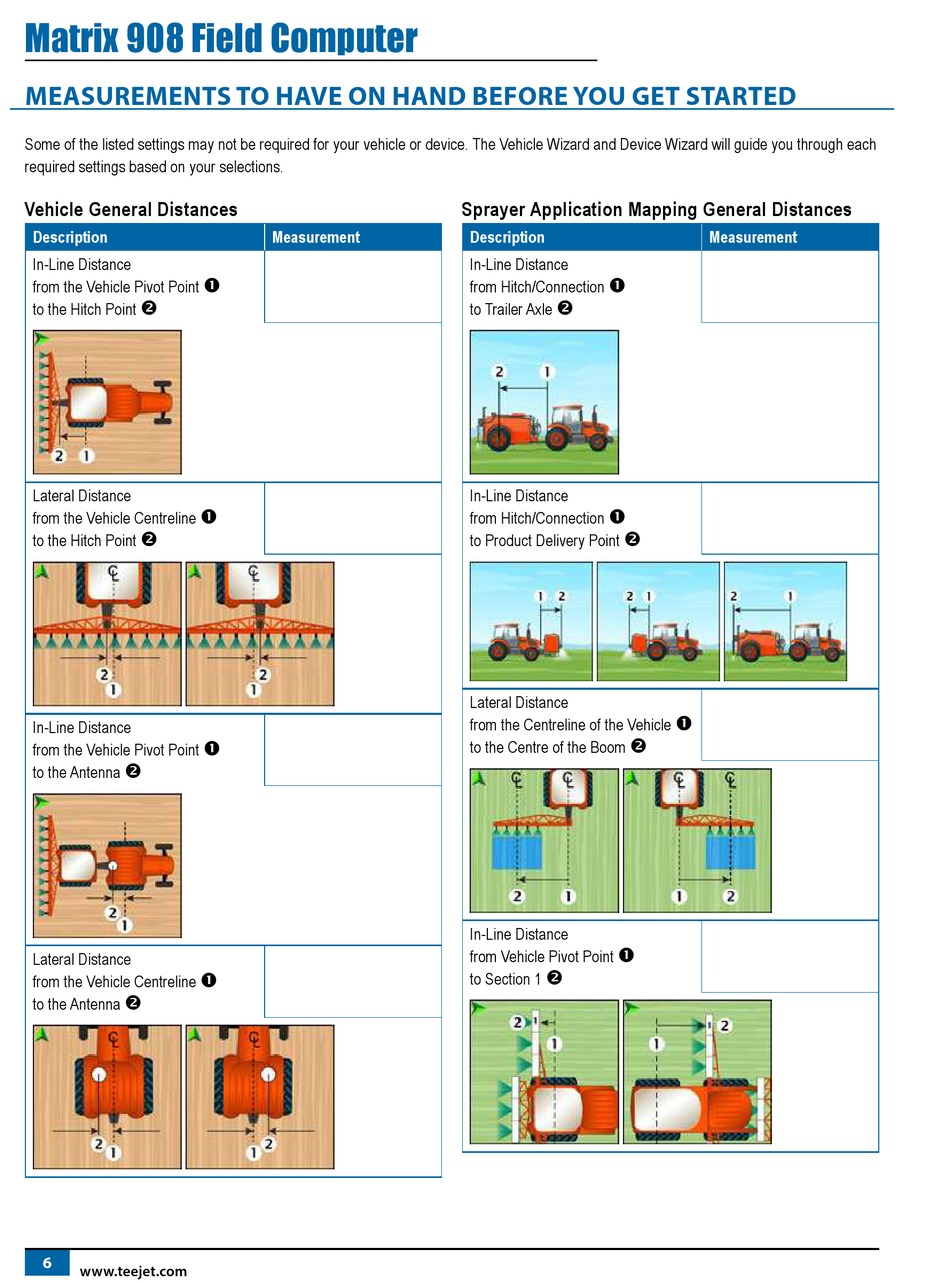

Matrix 908 Field Computer
MEASUREMENTS TO HAVE ON HAND BEFORE YOU GET STARTED
Some of the listed settings may not be required for your vehicle or device. The Vehicle Wizard and Device Wizard will guide you through each
required settings based on your selections.
Vehicle General Distances
Description
In-Line Distance
from the Vehicle Pivot Point
to the Hitch Point
Lateral Distance
from the Vehicle Centreline
to the Hitch Point
In-Line Distance
from the Vehicle Pivot Point
to the Antenna
Lateral Distance
from the Vehicle Centreline
to the Antenna
6
www.teejet.com
Measurement
Sprayer Application Mapping General Distances
Description
In-Line Distance
from Hitch/Connection
to Trailer Axle
In-Line Distance
from Hitch/Connection
to Product Delivery Point
Lateral Distance
from the Centreline of the Vehicle
to the Centre of the Boom
In-Line Distance
from Vehicle Pivot Point
to Section 1
Measurement
