Matrix 908 Field Computer

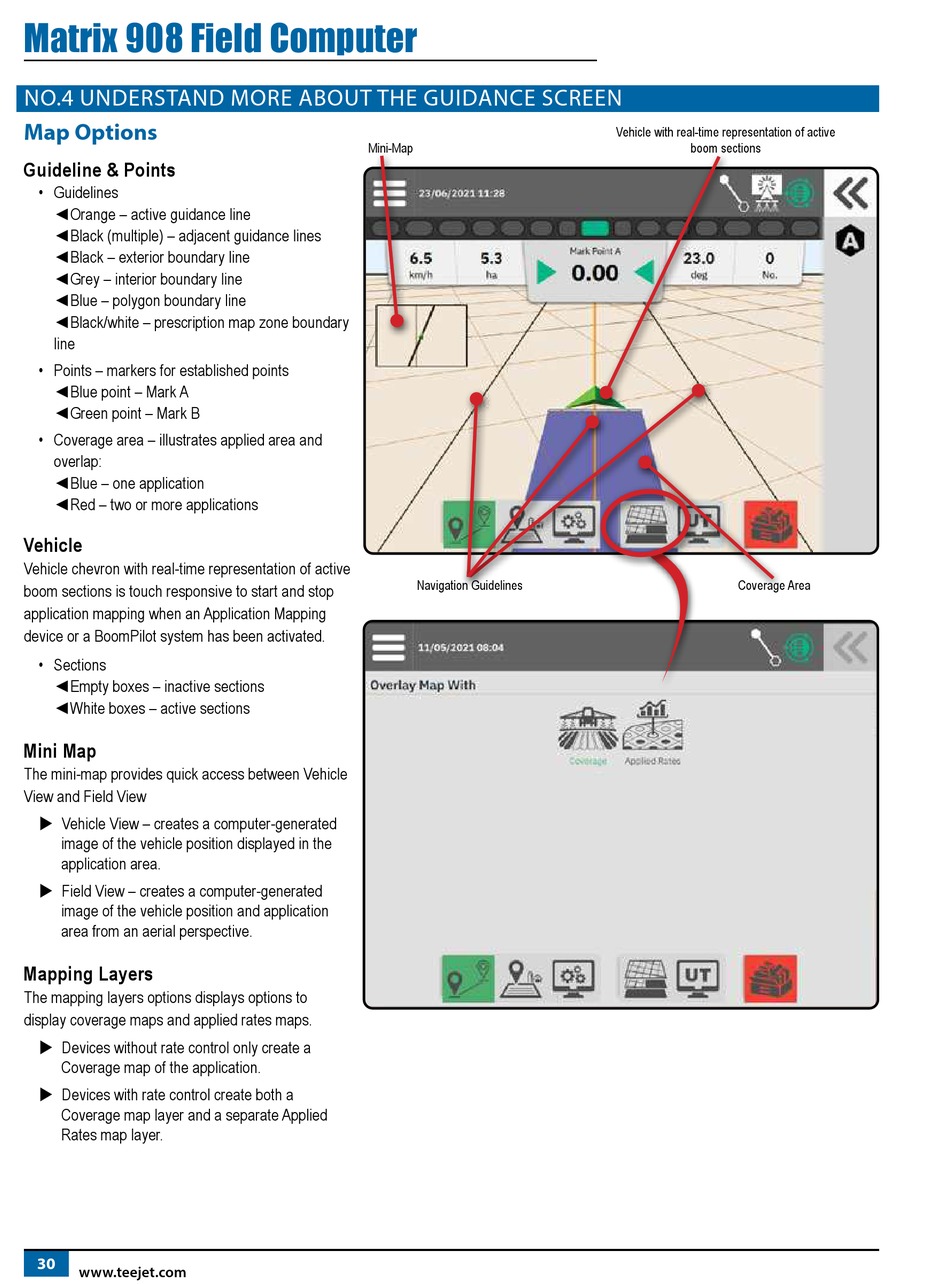

NO.4 UNDERSTAND MORE ABOUT THE GUIDANCE SCREEN
Map Options
Guideline & Points
• Guidelines
◄Orange – active guidance line
◄Black (multiple) – adjacent guidance lines
◄Black – exterior boundary line
◄Grey – interior boundary line
◄Blue – polygon boundary line
◄Black/white – prescription map zone boundary
line
• Points – markers for established points
◄Blue point – Mark A
◄Green point – Mark B
• Coverage area – illustrates applied area and
overlap:
◄Blue – one application
◄Red – two or more applications
Vehicle
Vehicle chevron with real-time representation of active
boom sections is touch responsive to start and stop
application mapping when an Application Mapping
device or a BoomPilot system has been activated.
• Sections
◄Empty boxes – inactive sections
◄White boxes – active sections
Mini Map
The mini-map provides quick access between Vehicle
View and Field View
X Vehicle View – creates a computer-generated
image of the vehicle position displayed in the
application area.
X Field View – creates a computer-generated
image of the vehicle position and application
area from an aerial perspective.
Mapping Layers
The mapping layers options displays options to
display coverage maps and applied rates maps.
X Devices without rate control only create a
Coverage map of the application.
X Devices with rate control create both a
Coverage map layer and a separate Applied
Rates map layer.
30
www.teejet.com
Mini-Map
Navigation Guidelines
Vehicle with real-time representation of active
boom sections
Coverage Area
