Matrix 908 Field Computer

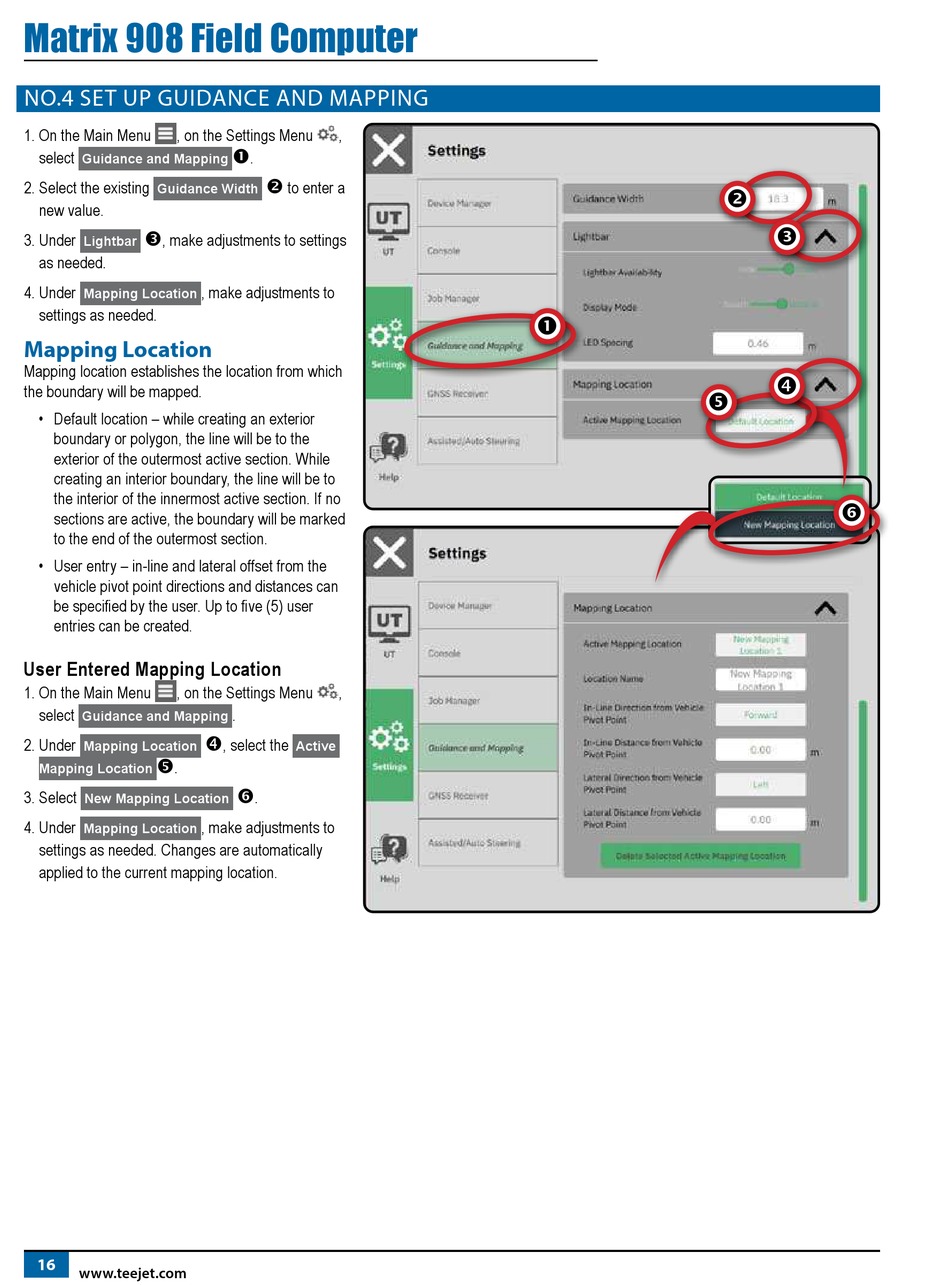

NO.4 SET UP GUIDANCE AND MAPPING
1. On the Main Menu , on the Settings Menu
select
Guidance and Mapping
2. Select the existing
Guidance Width
new value.
 , make adjustments to settings
3. Under
Lightbar
as needed.
, make adjustments to
4. Under

Mapping Location

settings as needed.
Mapping Location
Mapping location establishes the location from which
the boundary will be mapped.
• Default location – while creating an exterior
boundary or polygon, the line will be to the
exterior of the outermost active section. While
creating an interior boundary, the line will be to
the interior of the innermost active section. If no
sections are active, the boundary will be marked
to the end of the outermost section.
• User entry – in-line and lateral offset from the
vehicle pivot point directions and distances can
be specified by the user. Up to five (5) user
entries can be created.
User Entered Mapping Location
1. On the Main Menu , on the Settings Menu
select
Guidance and Mapping
2. Under
Mapping Location

.
Mapping Location
3. Select
New Mapping Location
, make adjustments to
4. Under
Mapping Location
settings as needed. Changes are automatically
applied to the current mapping location.
16
www.teejet.com
,

.

to enter a
,
.

, select the
Active

.






