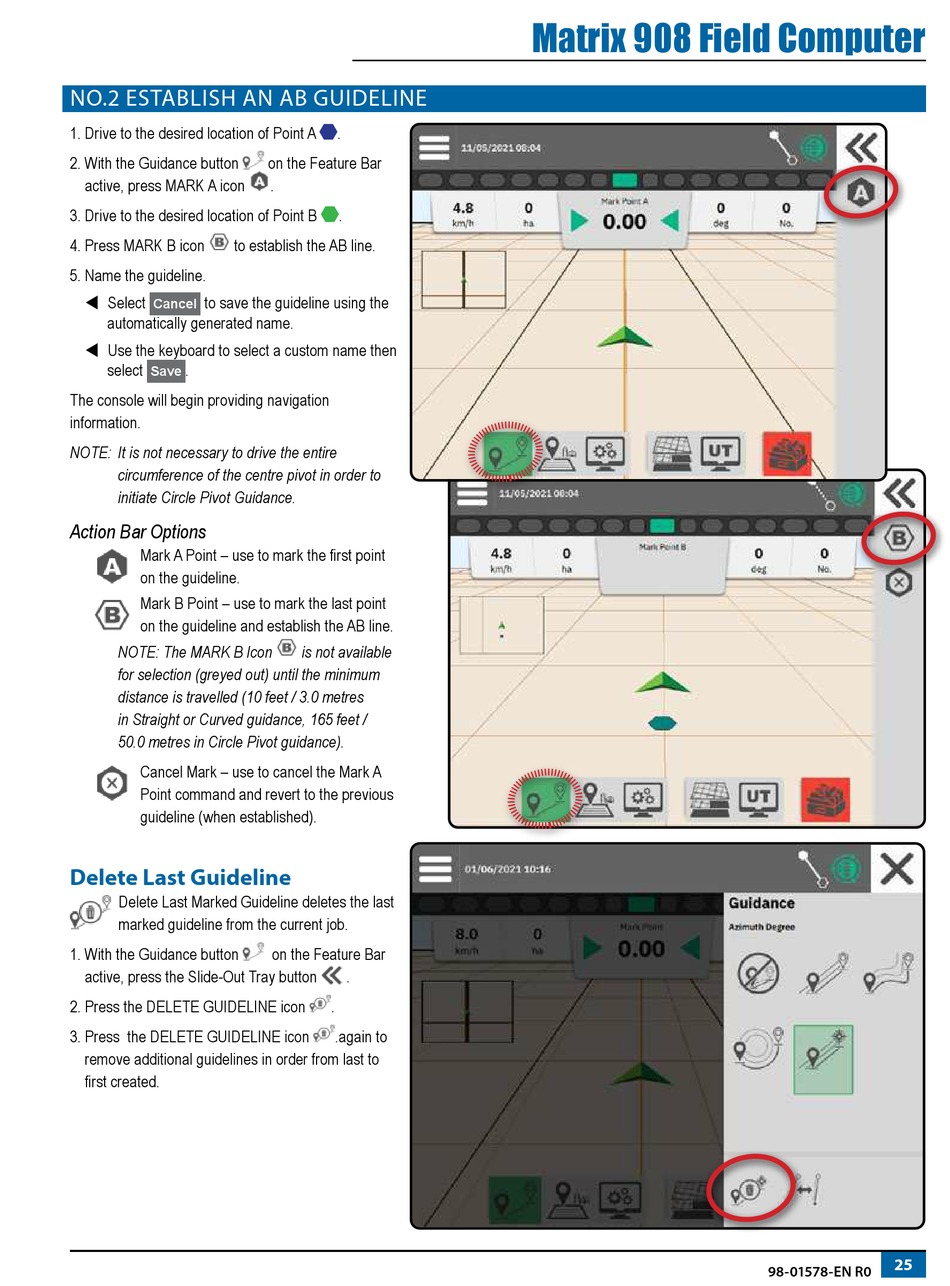

NO.2 ESTABLISH AN AB GUIDELINE
1. Drive to the desired location of Point A
2. With the Guidance button
active, press MARK A icon
3. Drive to the desired location of Point B
4. Press MARK B icon to establish the AB line.
5. Name the guideline.
W Select
to save the guideline using the
Cancel
automatically generated name.
W Use the keyboard to select a custom name then
select .
Save
The console will begin providing navigation
information.
NOTE: It is not necessary to drive the entire
circumference of the centre pivot in order to
initiate Circle Pivot Guidance.
Action Bar Options
Mark A Point – use to mark the first point
on the guideline.
Mark B Point – use to mark the last point
on the guideline and establish the AB line.
NOTE: The MARK B Icon
for selection (greyed out) until the minimum
distance is travelled (10 feet / 3.0 metres
in Straight or Curved guidance, 165 feet /
50.0 metres in Circle Pivot guidance).
Cancel Mark – use to cancel the Mark A
Point command and revert to the previous
guideline (when established).

Delete Last Guideline

Delete Last Marked Guideline deletes the last
marked guideline from the current job.
1. With the Guidance button
active, press the Slide-Out Tray button
2. Press the DELETE GUIDELINE icon
3. Press the DELETE GUIDELINE icon
remove additional guidelines in order from last to
first created.
.
on the Feature Bar
.
.
is not available
on the Feature Bar
.
.
.again to
