Matrix 908 Field Computer

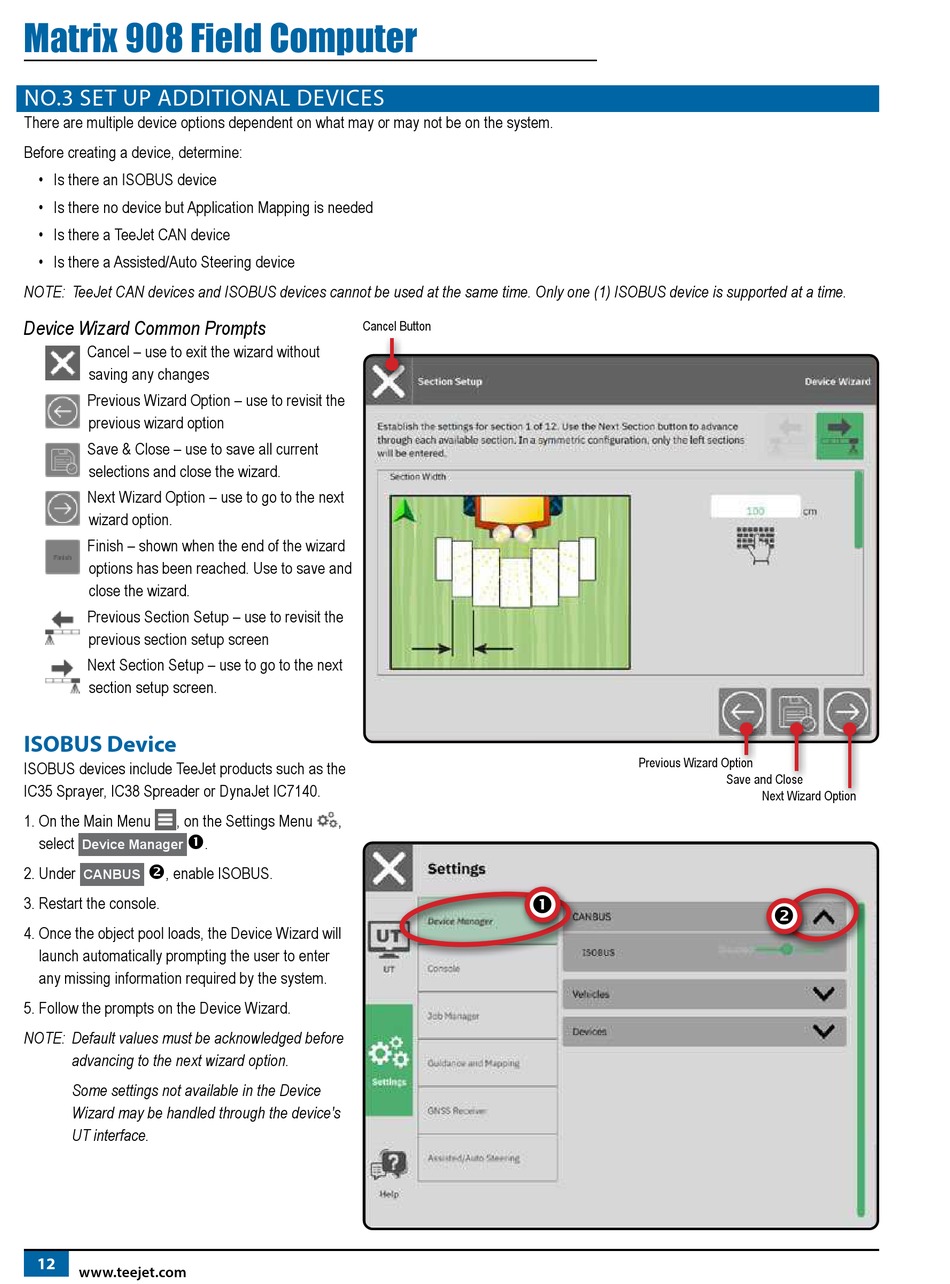

NO.3 SET UP ADDITIONAL DEVICES
There are multiple device options dependent on what may or may not be on the system.
Before creating a device, determine:
• Is there an ISOBUS device
• Is there no device but Application Mapping is needed
• Is there a TeeJet CAN device
• Is there a Assisted/Auto Steering device
NOTE: TeeJet CAN devices and ISOBUS devices cannot be used at the same time. Only one (1) ISOBUS device is supported at a time.
Device Wizard Common Prompts
Cancel – use to exit the wizard without
saving any changes
Previous Wizard Option – use to revisit the
previous wizard option
Save & Close – use to save all current
selections and close the wizard.
Next Wizard Option – use to go to the next
wizard option.
Finish – shown when the end of the wizard
options has been reached. Use to save and
close the wizard.
Previous Section Setup – use to revisit the
previous section setup screen
Next Section Setup – use to go to the next
section setup screen.

ISOBUS Device

ISOBUS devices include TeeJet products such as the
IC35 Sprayer, IC38 Spreader or DynaJet IC7140.
1. On the Main Menu , on the Settings Menu

select
Device Manager

2. Under , enable ISOBUS.
CANBUS
3. Restart the console.
4. Once the object pool loads, the Device Wizard will
launch automatically prompting the user to enter
any missing information required by the system.
5. Follow the prompts on the Device Wizard.
NOTE: Default values must be acknowledged before
advancing to the next wizard option.
Some settings not available in the Device
Wizard may be handled through the device's
UT interface.
12
www.teejet.com
Cancel Button
,
.
Previous Wizard Option

Save and Close
Next Wizard Option

