Information & Status Bar
Job Boundary & Application Details
Select the job name in the Information Bar to see
details on the current job's arable land area.
Status Bar

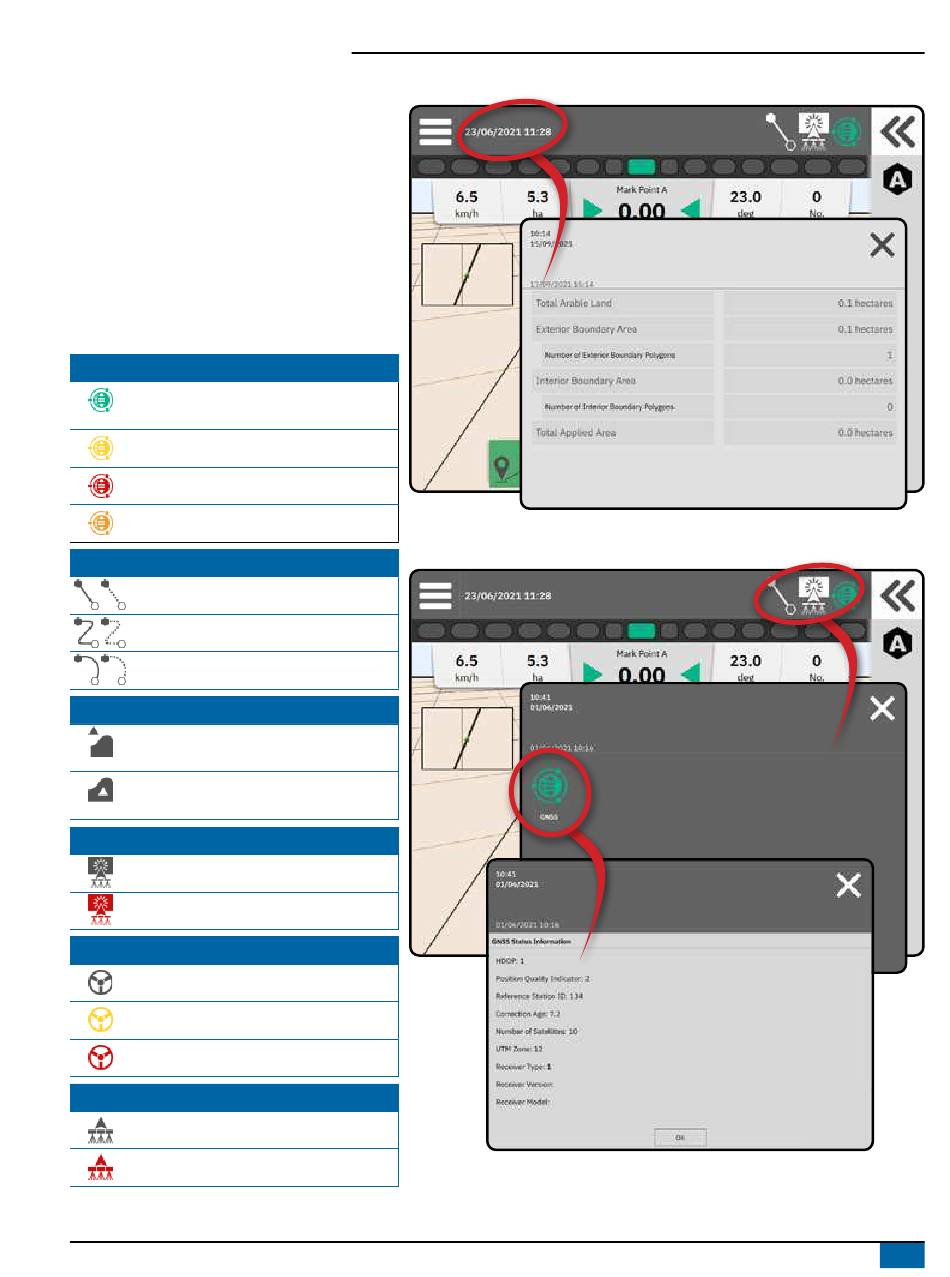

The Status Bar provides information on GNSS status,
guidance mode, arable land area, assisted/auto
steering engagement, and implement control status.
To access related status information, select the Status
Bar to displayed available options.
GNSS Status
Green = GPS, GLONASS, or SBAS (with
or without DGPS Required)
Yellow = GPS only
Red = no GNSS
Orange = Glide/ClearPath
Guidance Mode
Straight AB or Azimuth Guidance
Dynamic Adaptive AB Guidance
Circle Pivot Guidance
Arable Land Area Status
Outside Arable Land Area = traveling
outside arable land area
Inside Arable Land Area = traveling inside
arable land area
Application Mapping Status
Automatic
Red = off/manual
Assisted/Auto Steering Status
Engaged, actively steering
Yellow = enabled
Red = disabled
BoomPilot Status
Automatic
Red = off/manual
