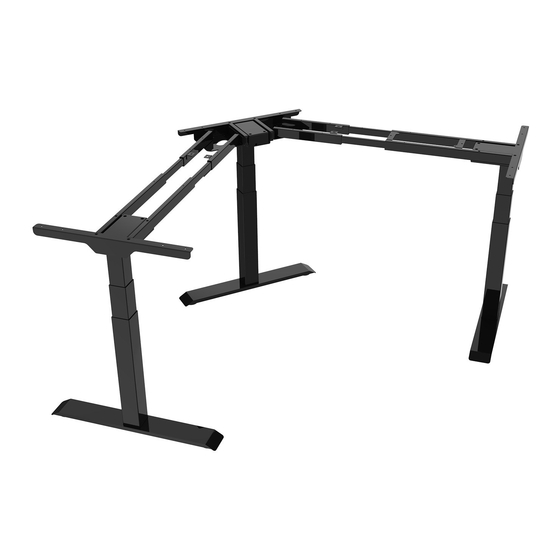

Spacetronik SPE-323T Installation Manual

Model:SPE-323T
Installation guide
Technical data
Column qty
3
150KG
Max Loading capacity
580-1230mm
Height range
Component list
No. Part Qty No. Part Qty
1 3 2 3
Pedestal pad
Lifting column
No. Part Qty No. Part Qty
3 2 4 3
Supporting beam
Supporting plate
No. Part Qty No. Part Qty
5 1 6 1
Left connecting plate Right connecting plate
No. Part Qty No. Part Qty
7 1 8 1
Hand Switch
Control box (Option)
No. Part Qty No. Part Qty
9 1
1 10
Power Plug Cable
Note: This standing desk has three angle installation methods,
namely 90 °, 120 ° and 180 °
Accessory list
Attention: The drawings below are only for reference which might be slightly
different from the actual object, please in kind prevail. Any tools missing or
installation problems, please contact the customer service firstly.
Spec Qty
No. Image
6
A
M6
B 8
M6
C 16
M6
D 12
M6
4
E M8
24
F
St4.2
G 6
St4.2
H Wiring fixing seat 6
Wrench
Wrench
I 1
(with cross)
4x4mm
5x5mm
4
3
6
5
7
2
9
8
10
1
STEP 1
Install left and right connecting plates
C
x4
5
E
x4
6
I
4x4
I
3
5x5
Connect the two supporting beams (3) to the left and
right connecting plates (5) (6) with screws (C) and (E)
respectively. There are three angles to choose at will,
and finally tighten them with a wrench (I)
STEP 2
Install lifting columns
D
x12
120° Installation
I
4x4 2
6
I
D
Connect the lifting columns (2) to the support beam (3)
with screws (D), the middle column (2) to the left and
right connecting plates (5) (6), and the wrench (I) to tighten
the screws; 90° and 180° are installed in the same way as 120°.
STEP 3-1
Install the Feet
C
x12
I
I C
90° and 120° installation
4x4
2
90° Installation
4x4
C
5x5
E
120° Installation
4x4
5x5
C
E
180° Installation
5x5 4x4
C
E
2
2
5
3
1
Install the feet and the lifting column (2)
together, use wrench (I) to tighten the screws (C).
