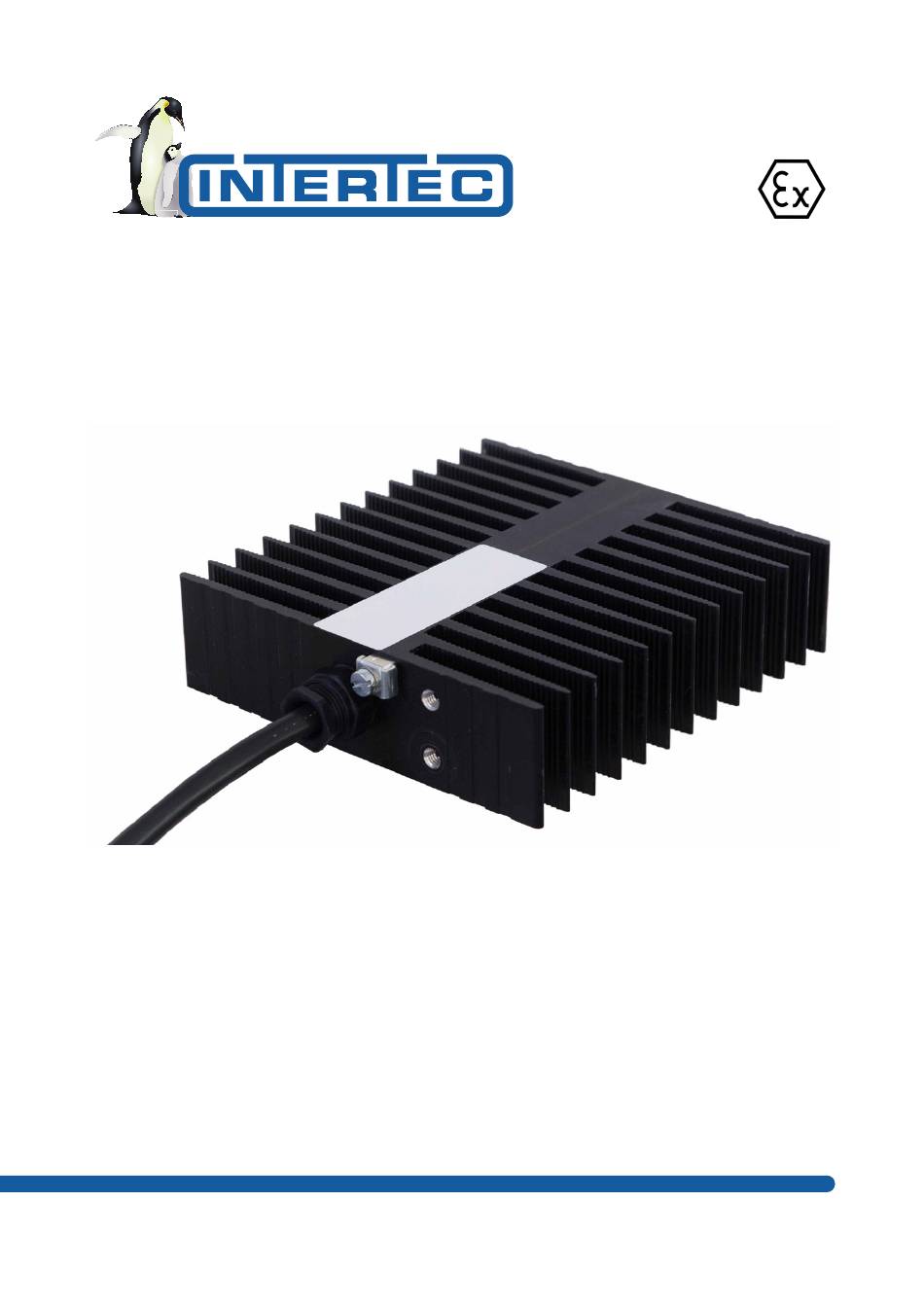

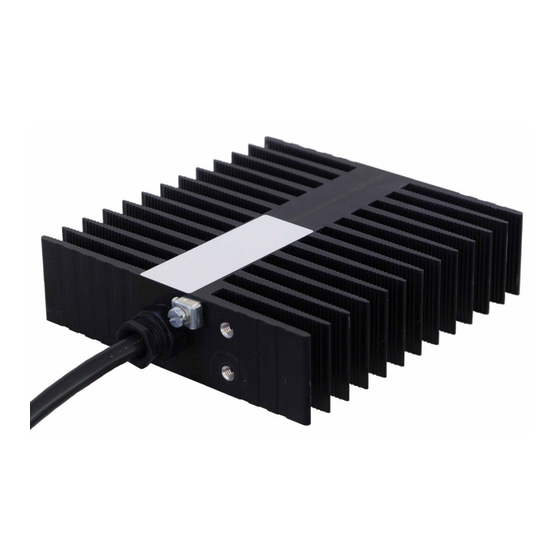

- Page 1 Betriebsanleitung CP HORIZOTHERM DNA HI HOM2594441611en-2 • 11/06/2024...
-
Page 2: Table Of Contents
www.intertec.info Table of contents 1 General .................................. 3 2 Use................................... 3 3 Specific conditions for use ........................... 3 4 Explanation of symbols for warnings and signal words .................. 3 5 Safety information.............................. 4 6 Installation accessories............................ 4 7 Technical Data ................................ 4 8 Installation ................................ -
Page 3: General
Operating Instructions CP HORIZOTHERM DNA HI 1. The connecting lead shall be installed to provide for General permanent wiring and adequate protection against These operating instructions describe the safe and mechanical damage. proper way to work with the device. The safety 2. -
Page 4: Safety Information
Operating Instructions CP HORIZOTHERM DNA HI Piece Description NOTICE Heating unit Angle bracket made of flat steel NOTE Packet of screws containing the following: It is essential to pay attention to this safety advice as you M 6x12 hexagon bolts may otherwise incur material damage. -
Page 5: Installation
Operating Instructions CP HORIZOTHERM DNA HI The connection cable must be permanently installed up Profile type "N" Length x 155 x 152 x 40 to the inlet into the on-site junction box, taking the Width x Height permissible bending radius = 5 x outer diameter into consideration. - Page 6 Operating Instructions CP HORIZOTHERM DNA HI Check heater, supply lines, any thermostats and junction boxes for safety-relevant damage. Consult factory upon any visible damage. The installation is not safe if the following is present: • Insulation and seals are damaged...
-
Page 7: 15 Eu Declaration Of Conformity
Operating Instructions CP HORIZOTHERM DNA HI • Live parts are exposed Disposal according to WEEE 2012/19/EU • Protective earthing is no longer functional All components have to be kept clean and free of dust Disassemble the components of the product, taking the... -
Page 8: 16 Further Information And Service
Operating Instructions CP HORIZOTHERM DNA HI 2813 II 2 G Ex db IIC T6, T5, T4, T3 II 2 D Ex tb IIIC T85°C, T100°C, T135°C, T200°C EC Type Examination Certificate : PTB 02 ATEX 1041 X Neustadt, April 5th, 2024 Dipl.-Ing.
