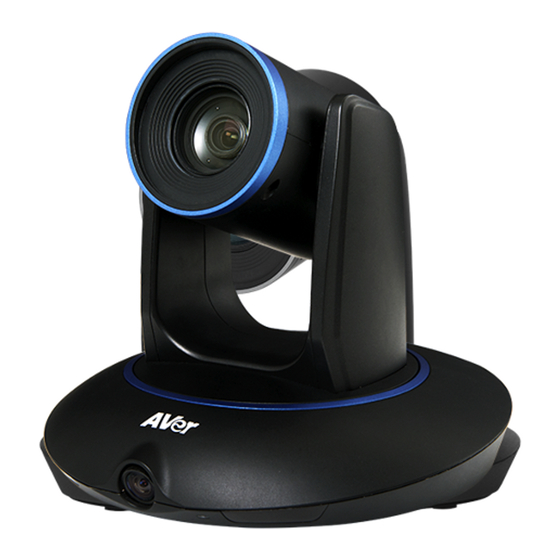

TR530/320 Tracking Camera
Quick Start Guide
Getting Started

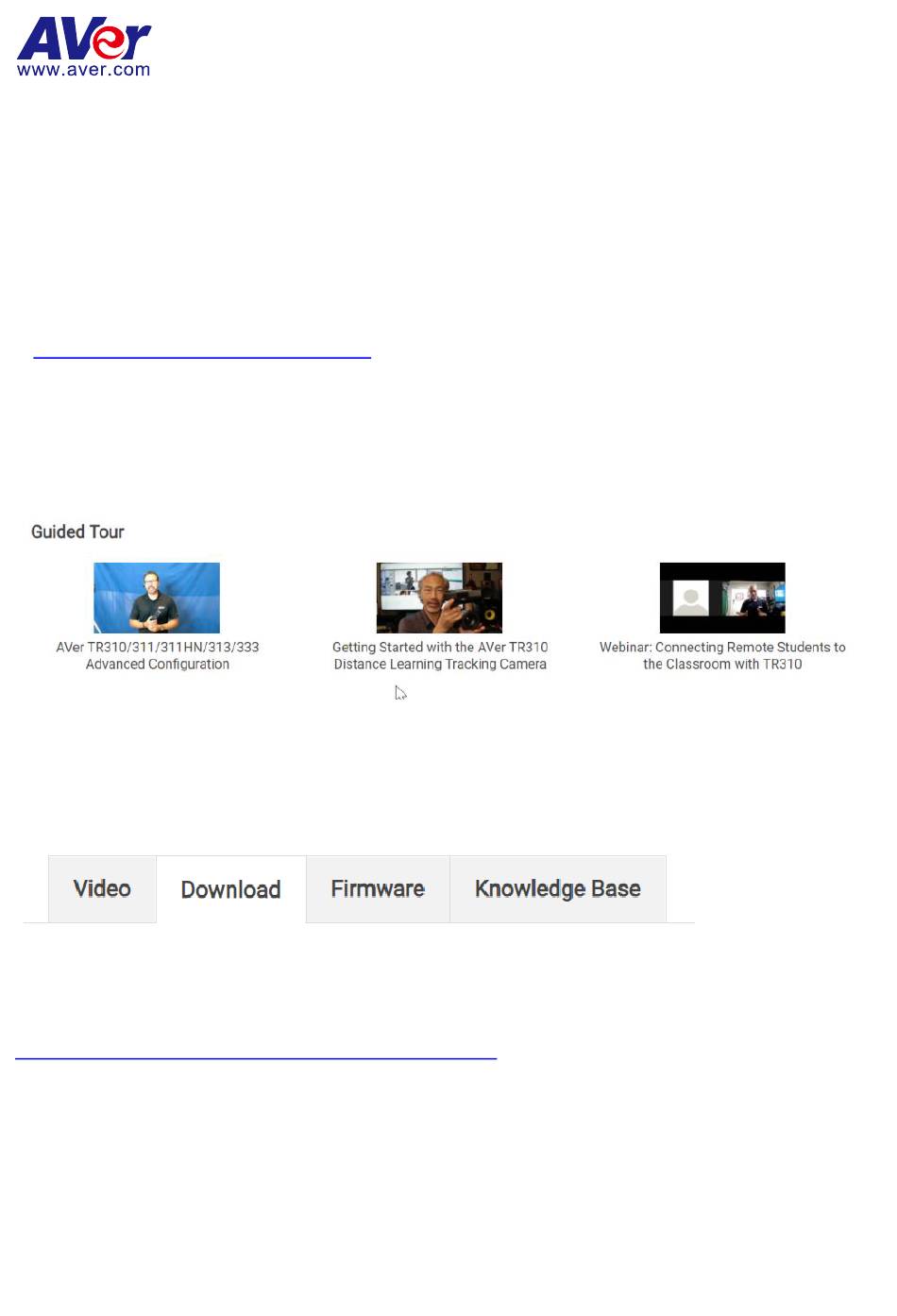

Please visit the following link to learn more about the camera before using it:
https://averusa.com/pro-av/support/
You can find guided video tours like the ones listed below.
You can also find new Firmware, Software, Frequently asked questions and the User
manual as well as a host of guides in the respective tabs below:
To access more help, please submit a trouble shooting tickets here:
https://averusa.force.com/support/s/contactsupport
(Updated 2/11/2021)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR530 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVer TR530

Summary of Contents for AVer TR530

  • Page 1 TR530/320 Tracking Camera Quick Start Guide (Updated 2/11/2021) Getting Started Please visit the following link to learn more about the camera before using it: https://averusa.com/pro-av/support/ You can find guided video tours like the ones listed below. You can also find new Firmware, Software, Frequently asked questions and the User...

  • Page 2: Wall Mount

    Important Camera Setup Installation Suggestion: ◼ Distance from podium: ➢ TR320: 4~10m (13~33 feet) ➢ TR530: 4~15m (13~49 feet) ◼ Install height range (from floor): 2 ~ 3m(6.56~9.84 feet); 2.4m(7.87 feet) is suggested. ◼ Distance range to podium: 4~15m; 8m is suggested.
  • Page 3 D-Sub 9 cable Recording System HDMI cable Control System Projector Power Outlet Audio Mixer Note: AVer Offices an HDMI to USB (Part#:PTCVBU110) or SDI to USB (Part#:PTCVBU111) converter to convert the existing HDMI or SDI output into a USB feedback...

  • Page 4: Setup Ip Address

    Setup IP Address ◼ Before setting the AI function, please set the IP address first. There are two ways to setup IP address of the camera. Please follow the steps below to setup the IP address by connecting the camera to an HDMI display. It is important to get the camera onto the network as this is the only way to properly setup and configure the camera for Auto Tracking.
  • Page 5 Camera Setup Guide • For the best experience, we recommend using the Google Chrome browser to access the camera. If you have difficulty getting proper browser response, please clear the browser cache first. • Key in the Camera IP address into browser and to login into control page. •...
  • Page 6 AVer TR530/TR320 is a professional tracking camera which supports 3 tracking methods, namely: wide area, stage or segment mode. The camera uses body motion and image analysis algorithm to track the intended target; the target subject does not need to wear any signal transmitting device.

  • Page 7: Mode Introduction

    ➢ Regardless if the target is close to or away from TR530 / TR320, the tracking camera will automatically zoom in/out to maintain the appropriate size and proportion, when auto zoom is enabled.
  • Page 8 Application ➢ It’s suitable for a more complicated environment due to the utilization of the absolute motion tracking algorithm. The TR530/TR320 will not be affected by the color of wood furniture or any high bright contrast background. ➢ Suitable for only one person in the tracking zone.
  • Page 9 When your camera is all setup on the network, you can download our free camera control and management software AVer PTZ Management. This software enables complete control of its devices on Windows PCs and laptops. And it offers convenient and simultaneous control of up to 128 cameras.

  • Page 10: Package Contents

    When the hot key takes effect, you will see “tracking on” or “tracking off” on the right bottom side. Enable/Disable AVer Logo Press six times(666666) When the hot key takes effect, you will see “AVer” logo on the right bottom side. Show the tracking indicator Press seven times(7777777) When the hot key takes effect, you will see the tracking indicator on the target face.
  • Page 11 (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries in a safe and proper manner. ©2020 AVer Information Inc. All rights reserved.
