TR320
User Manual
V.1.0.0

Advertisement

Table of Contents
loading

Related Manuals for AVer TR320

Summary of Contents for AVer TR320

  • Page 1 TR320 User Manual V.1.0.0...
  • Page 2 IMPORTANT NOTICE  PLEASE READ THE INSTRUCTIONS IN THIS MANUAL BEFORE INSTALLING THE TR320 TRACKING CAMERA.  DO NOT DISASSEMBLE OR MODIFY THE ITEMS BY YOURSELF. CONTACT THE DEALER FOR HELP WHEN THE ITEMS IS FAILED TO WORK.  CONNECT THE DEVICES WITH PROPER CABLES.
  • Page 3 ©2019 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.

  • Page 4: Table Of Contents

    Wide Area Mode ......................6 WEB SETUP ........................7 Make a Connection to TR320 via Browser ..............7 Make a Connection to TR320 via AVer IPCam Utility.............9 Enable Tracking Function .................... 10 Setup Object Viewing Dimension ................11 Wide Area Mode ......................12 Setup Priority Zone ....................
  • Page 5 OSD SETUP ........................18 Before You Begin ......................18 For the First Time Use ....................18 Trigger OSD Menu ....................18 Setup IP Address..................... 19 OSD Tree Map ......................21 Main ........................21 Tracking ........................21 Camera ........................22 Camera ID ..................... 22 DHCP ......................

  • Page 6: Introduction

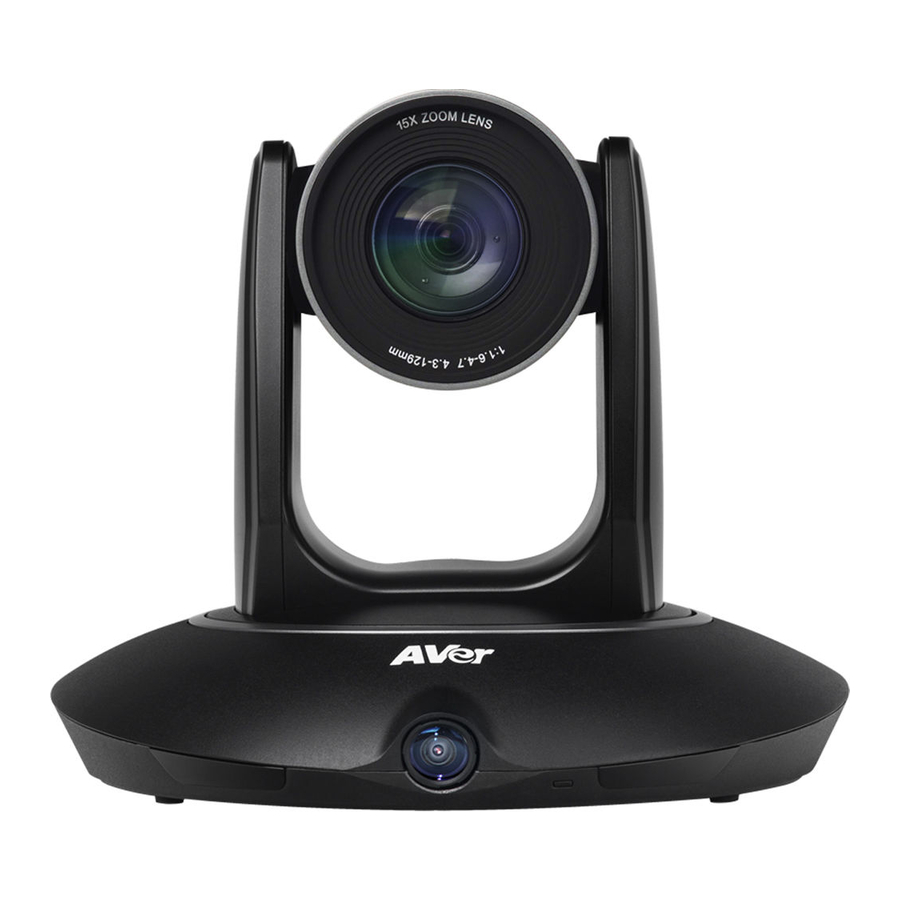

    INTRODUCTION AVer TR320 is a professional tracking camera which supports the wide area tracking mode. The TR320 uses body motion and image analysis algorithm to track the intended target; the target subject does not need to wear any signal transmitting device. The TR320 can communicate with most recording systems through RS232, RS485 or an IP network interface.

  • Page 7: Product Overview

    Product Overview 8 9 10 1. PTZ camera 6. 3G-SDI 1 port(PTZ view) 2. Panoramic camera 7. HDMI port(PTZ view) 3. Power indicator 8. Video in port 4. RJ-45 port 9. RS-232 port 5. 3G-SDI 2 port(Panoramic view) 10. Power jack Dimension...

  • Page 8: Remote Controller

    7. Zoom in/out 8. Exposure compensation 9. Back to zero position(home preset) [Note] Press and hold 3 seconds to turn on or turn off the TR320 unit. Only supported with TR320 FW version 0.0.1000.08 and above. 10. Tracking on/off 11. Number buttons 12.

  • Page 9: Connections

    CONNECTIONS Device Connections...

  • Page 10: Rs232 Pin Definition

    RS232 Pin Definition Definition RS232_DTR RS232_DSR N.C. RS232_TXD RS232_RXD...

  • Page 11: Mode Introduction

    Regardless of the target close to or away from TR320, the tracking camera will automatically zoom in/out to maintain the appropriate size and proportion.  If the tracking target is locked, TR320 will not be affected by the other moving objects.  Limitation ...

  • Page 12: Web Setup

    Make a Connection to TR320 via a Web Browser 1. Find the IP address of TR320: call out OSD menu of the TR320. Use ▲ and ▼ buttons on remote controller to go to “Information” to find the IP address information.
  • Page 13 After login, User should see the main interface of TR320.

  • Page 14: Make A Connection To Tr320 Via Aver Ipcam Utility

    Make a Connection to TR320 via AVer IPCam Utility [Note] The TR320 FW version 0.0.1000.08 and above supports IPCam Utiltiy application. To find the IP address of your cameras, you can execute the IPCam Utility installer. Follow the below steps to find the IP address of camera.

  • Page 15: Enable Tracking Function

    Enable Tracking Function Turn on and off the tracking function. Select > Tracking setting > Tracking on.

  • Page 16: Setup Object Viewing Dimension

    Setup Object Viewing Dimension Please make sure the target person’s face is aligned with the crosslines to ensure high-accuracy tracking. Use the camera zoom and positioning to get the best coverage. Typically you can just use your thumb size as a good yardstick. You should only have to do this once. 1920 1080 To set the object size for tracking select...

  • Page 17: Wide Area Mode

    Setup Priority Zone If the TR320 detects motion in the defined zone it will be triggered to start tracking. If a priority zone isn’t setup, then, the entire panoramic camera view will be the default active zone.

  • Page 18: Setup Shielded Zone

    Setup Shielded Zone Define the area(s) that you don’t want the camera to track. The shielded zone(s) should be within the active zone. 8 shielded zones can be set. [Note] The screen of shielded zone setting is based on panoramic camera view. 1.
  • Page 19 Setup Multi-people Detection Define the area as a multiple people detection area. The camera will move to preset 2 and stop tracking the original object until the multi-people detection mode is stopped. [Note] The effective zone setting is based on the panoramic camera view. 1.
  • Page 20 4. Time to go preset 2: set the time to move the camera to preset 2 after multi-people detection is activated. Time delay before returning to single presenter tracking: set the time period to back to tracking the main presenter after multi-people detection mode is no longer effective...

  • Page 21: Preset Setup

    Preset Setup Define the specific location to view when select preset number (1~255). When TR320 loses tracking, it will back to the preset 1 position. 1. Open the browser and enter the IP address of TR320 to. 2. Select > Preset Setting.

  • Page 22: Firmware Update

    Using RTSP Connect to Camera Use RTSP player connecting to camera; please enter the following RTSP URL in your application such as VLC, PotPlayer, or QuickTime. PTZ camera: rtsp:// IP address of TR320:554/live_st1 For example: rtsp://192.168.1.1:554/live_st1 Panoramic camera: rtsp://IP address of TR320:8554/live_st2...

  • Page 23: Osd Setup

    OSD SETUP Before You Begin Make sure all connections are connected successfully before using the TR320. First Time Use Trigger OSD Menu button on remote controller to call out the OSD menu. Use  to enter sub-menu, use ▲ Press and ▼...

  • Page 24: Setup Ip Address

    Setup IP Address Setup IP address of TR320. There are two ways to setup IP address of TR320. Please follow the steps below to setup the IP address.  Static IP Address Assign a fixed IP address for TR320. 1. After starting-up, press button on remote control to call out OSD menu.
  • Page 25 3. Use ▲ and ▼ buttons go to “Information” to check the IP address information.

  • Page 26: Osd Tree Map

    Information > Display > Tracking  User can enable or disable auto-tracking.  TR320 will not track an object automatically when the feature is disabled.  To enable auto-tracking, please select “On”.  To disable auto-tracking, select “Off”. Tracking Camera >...

  • Page 27: Camera

    > Information > Display > Camera ID To change camera ID, please select Camera > Camera ID. Tracking Camera > Camera ID > TR320 Video Format > DHCP > Advanced Setting > Static IP > Preset > PTZ Camera >...

  • Page 28: Dhcp

    DHCP To enable DHCP, select Camera > DHCP. Tracking Camera > Camera ID > Video Format > DHCP > DHCP10.1.0.1 Advanced Setting > Static IP > Preset > PTZ Camera > Language > Profile > Factory Default > Information > Display >...

  • Page 29: Ptz Camera

    PTZ Camera To adjust the parameters of PTZ camera, select Camera >PTZ Camera. Tracking Camera > Camera ID > Video Format > DHCP > Advanced Setting > Static IP > Preset > PTZ Camera > Language > Camera Mode Full Auto >...
  • Page 30 Camera Mode There are 4 different camera modes, you can select one from Camera > PTZ Camera > Camera Mode. Camera Mode Full Auto > Full Auto > Slow Shutter Full Auto > Shutter Priority > Maximum Gain 24dB Shutter Priority >...
  • Page 31 White Balance To adjust white balance value, select Camera > PTZ Camera > White Balance. Camera Mode Full Auto > Full Auto > Shutter Priority > Iris Priority > Manual > White Balance > Mode Auto Shading Correction > Auto Pan/Tile Speed One Push Zoom Speed...

  • Page 32: Video Format

    Shading Correction To adjust shading correction, select Camera > PTZ Camera > Shading Correction (The option is for the screen corner shadow fixing.) Camera Mode Full Auto > Full Auto > Shutter Priority > Iris Priority > Manual > White Balance >...
  • Page 33 PIP Mode Select picture-in-picture(PIP) mode. To turn off the PIP mode, select mode 0. Tracking Camera > Video Format > 3G-SDI1/HDMI Auto Advanced Setting > 3G-SDI2 Auto Preset > Language > Profile > Factory Default > Information >...

  • Page 34: Advanced Setting

    > Display > Preset TR320 allows you to set 10 preset locations via remote controller.  To set up preset point: 1. Enter OSD and turn off the tracking function. 2. Move camera to the preferred location and zoom distance.

  • Page 35: Language

    Vietnamese Profile TR320 allows you to save 5 profiles. To set the profile, go to OSD menu > Set and use arrow key to assign a number and press enter button. To call the profile, go to OSD menu > Apply and use arrow key to call an assigned number and press enter button.

  • Page 36: Factory Default

    Factory Default To reset the TR320 to default setting, go to OSD menu > Factory Default > Yes and press enter button. Tracking Camera > Video Format > Advanced Setting > Preset > Language > Profile > Factory Default >...

  • Page 37: Display

    Display Enable/disable status message display on screen. Go to OSD menu > Display. Tracking Camera > Video Format > Advanced Setting > Preset > Language > Profile > Factory Default > Information > Status OSD Display >...

  • Page 38: Hot Key

    When the hot key takes effect, you will see “tracking on” or “tracking off” on the right bottom side. Enable/Disable AVer Logo Press six times(666666) When the hot key takes effect, you will see “AVer” logo on the right bottom side. Show the tracking indicator Press seven times(7777777) When the hot key takes effect, you will see the tracking indicator on the target face.

  • Page 39: Faq

    WebUI PTZ > PTZ > power up ACT. 5. Are Presets 2 ~ 9 used for anything related to tracking? If you turn off tracking, the TR320 becomes a regular PTZ camera. User can manipulate it to assign position via center control system command.
