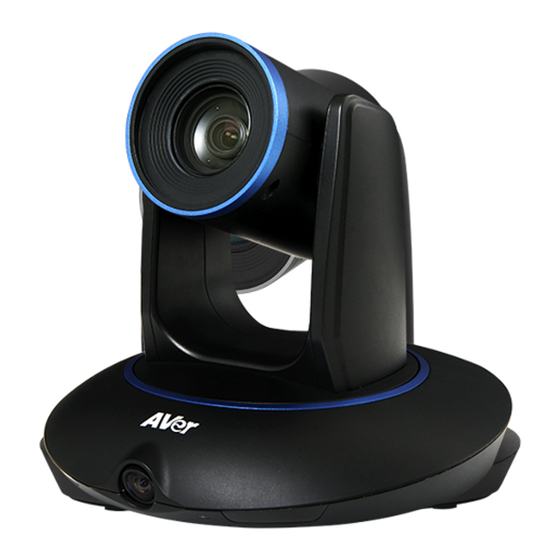

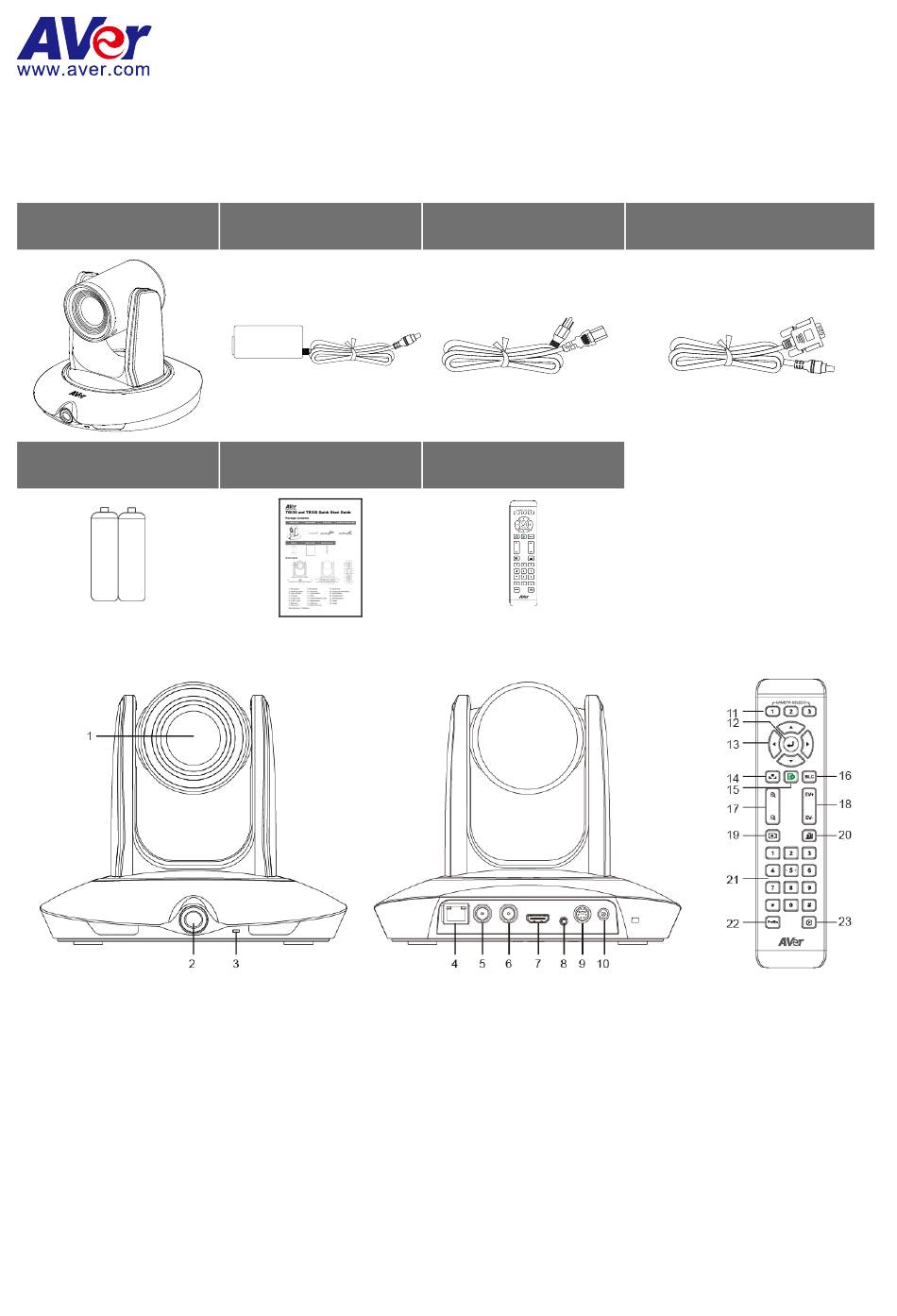

TR530/320 Tracking Camera Quick Start Guide
Package Contents
Camera unit
Battery
AAA
AAA
Overview
1. PTZ camera
2. Panoramic camera
3. Power indicator
4. RJ-45 port
5. 3G-SDI 2 port
6. 3G-SDI 1 port
7. HDMI port
8. Audio in port*
*Audio input level: 1Vrms(max.)
Power adapter
Quick Guide
9. RS-232 port
10. Power jack
11. Camera select
12. Enter
13. Camera direction control
14. White balance
15. OSD menu
16. Back light control
Power cord
Remote Controller
17. Zoom in/out
18. Exposure compensation
19. Home position
20. Tracking on/off
21. Number buttons
22. Profile
23. Preset
RS-232 to D-Sub 9 cable
P/N: 300AU9P1-ECV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR530 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVer TR530

Summary of Contents for AVer TR530

  • Page 1 TR530/320 Tracking Camera Quick Start Guide Package Contents Camera unit Power adapter Power cord RS-232 to D-Sub 9 cable Battery Quick Guide Remote Controller Overview 1. PTZ camera 9. RS-232 port 17. Zoom in/out 2. Panoramic camera 10. Power jack 18.
  • Page 2  Install height: 2~3m (6.56~9.84 feet). 2.4m (7.87 feet) is recommended. If the camera height is too low, tracking may be compromised. Please raise the camera to at least 6.56 feet.  Distance from podium:  TR320: 4~10m (13~33 feet)  TR530: 4~15m (13~49 feet) Power RJ-45 cable Adaptor...

  • Page 3: Setup Ip Address

    Setup IP Address There are two ways to setup IP address of the camera. Please follow the steps below to setup the IP address.  Static IP Address After starting-up, press button on remote control to call setup menu. Use ▲ and ▼ buttons to select the Camera > Static IP > IP, then press  button to enter IP address.
  • Page 4 Use ▲ and ▼ buttons go to “Information” to check the IP address information. Camera Setup Guide  For the best experience, we recommend using the Google Chrome browser to access the camera. If you have difficulty getting proper browser response, please clear the browser cache first. ...
  • Page 5 AVer TR530 is a professional tracking camera which supports 3 tracking methods, namely: wide area, stage or segment mode. The TR530 uses body motion and image analysis algorithm to track the intended target; the target subject does not need to wear any signal transmitting device.

  • Page 6: Mode Introduction

    Regardless of the target close to or away from TR530, the tracking camera will automatically zoom in/out to maintain the appropriate size and proportion.  If the tracking target is locked, TR530 will not be affected by the other moving objects.  Limitation ...
  • Page 7 Application  It’s suitable for a more complicated environment due to the utilization of the absolute motion tracking algorithm. The TR530 will not be affected by the color of wood furniture or any high bright contrast background.  Suitable for only one person in the tracking zone.
  • Page 8 When the hot key takes effect, you will see “tracking on” or “tracking off” on the right bottom side. Enable/Disable AVer Logo Press six times(666666) When the hot key takes effect, you will see “AVer” logo on the right bottom side. Show the tracking indicator Press seven times(7777777) When the hot key takes effect, you will see the tracking indicator on the target face.
