3. Operations
Fault mode

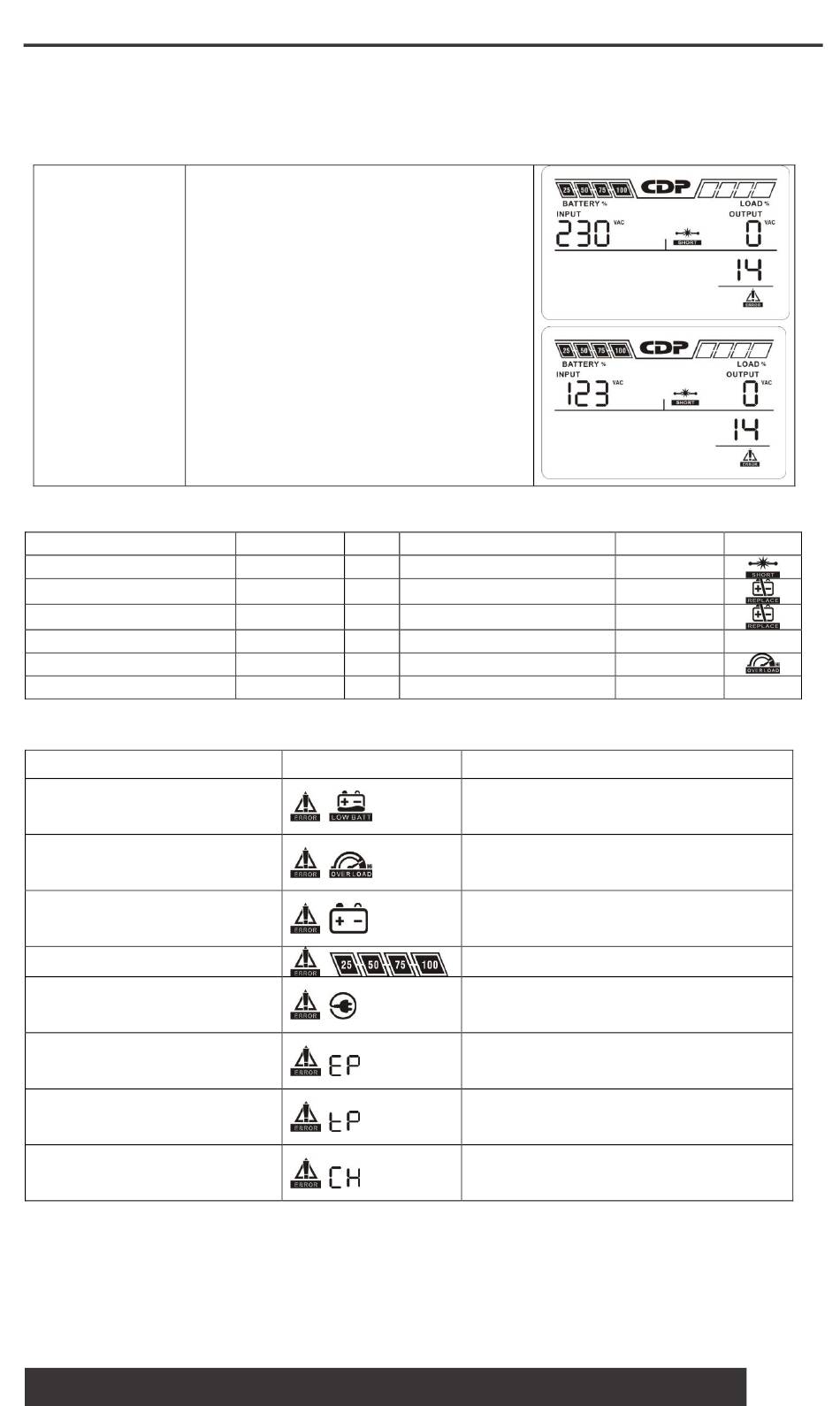

3-7. Faults Reference Code

Fault event
Bus start fail
Bus over
Bus under
Inverter soft start fail
Inverter voltage high
Inverter voltage Low

3-8. Warning indicator

Warning
Low Battery
Overload
Battery is not connected
Over Charge
Site wiring fault
EPO enable
Over temperature
Charger failure
UPO11-1/1.5/2/3 AX Online UPS
When a fault has occurred, the ERROR
icon and the fault code will be displayed.
Fault code Icon
01
02
03
11
12
13
Icon (flashing)
Fault event
x Inverter output short
x Battery voltage too high
x Battery voltage too low
x Over temperature
x Overload
x Charger failure
Sounding every 2 seconds
Sounding every second
Sounding every 2 seconds
Sounding every 2 seconds
Sounding every 2 seconds
Sounding every 2 seconds
Sounding every 2 seconds
Sounding every 2 seconds
User Manual
Fault code Icon
14
27
28
41 x
43
45 x
Alarm
19
