3. Operations
Battery information
Input & battery voltage information

3-3. Audible Alarm

Battery Mode
Low Battery
Overload
Fault
Bypass Mode

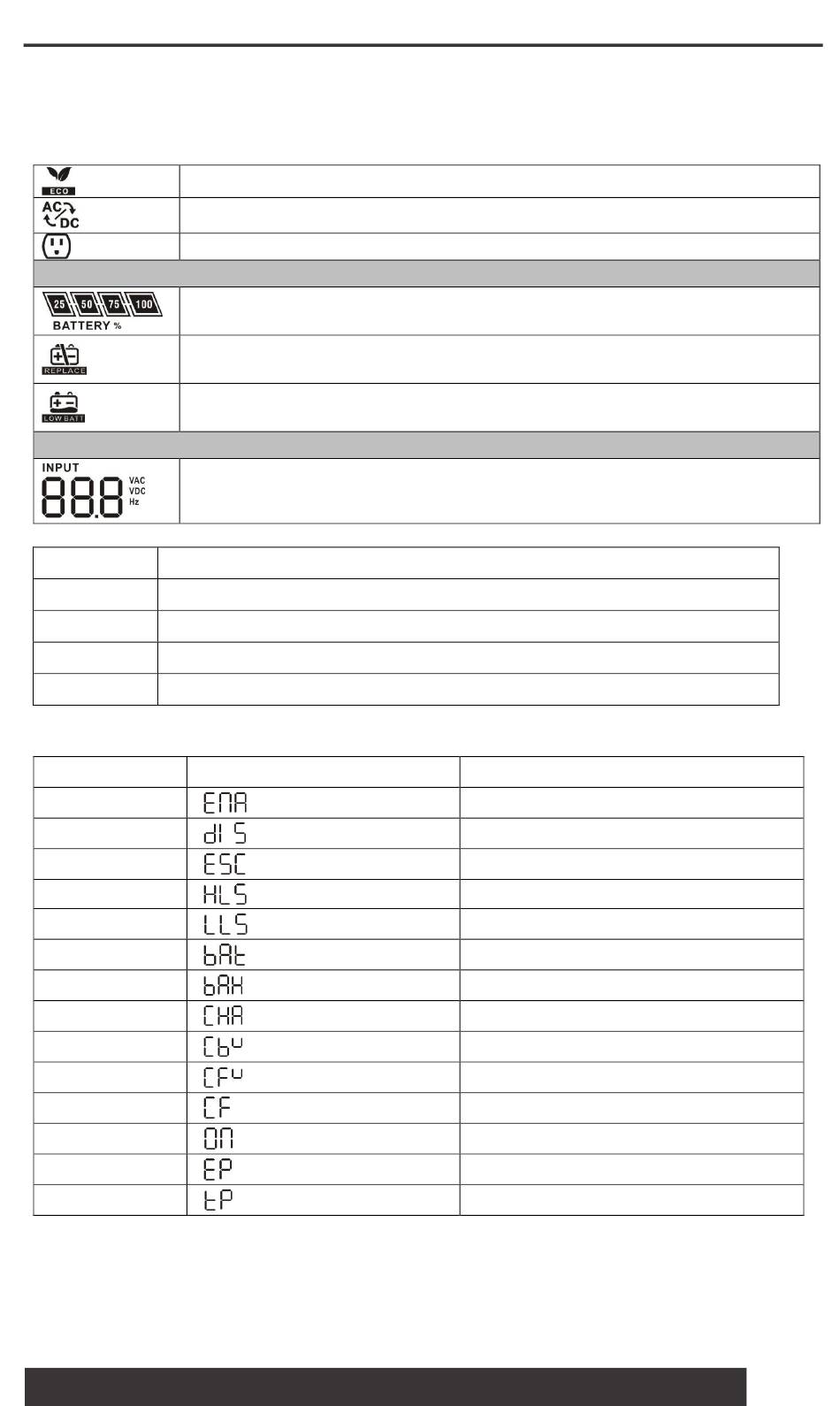

3-4. LCD display wordings index

Abbreviation
ENA
DIS
ESC
HLS
LLS
BAT
BAH
CHA
CBV
CFV
CF
ON
EP
TP
UPO11-1/1.5/2/3 AX Online UPS
Indicates the ECO mode is enabled.
Indicates the inverter circuit is working.
Indicates the output is working.
Indicates the battery level by 0-24%, 25-49%, 50-74%, and 75-100%.
Indicates the battery is fault.
Indicates low battery level and low battery voltage.
Indicate the input voltage, input frequency and battery voltage.
Vac: AC voltage, Vdc: DC voltage, Hz: frequency
Display content
Sounding every 5 seconds
Sounding every 2 seconds
Sounding every second
Continuously sounding
Sounding every 10 seconds
Meaning
Enable
Disable
Escape
High loss
Low loss
Battery
Battery AH
Charger current
Charger boost voltage
Charger float voltage
Converter
ON
EPO
Temperature
