3. Operations
CH
FU
EE
BR

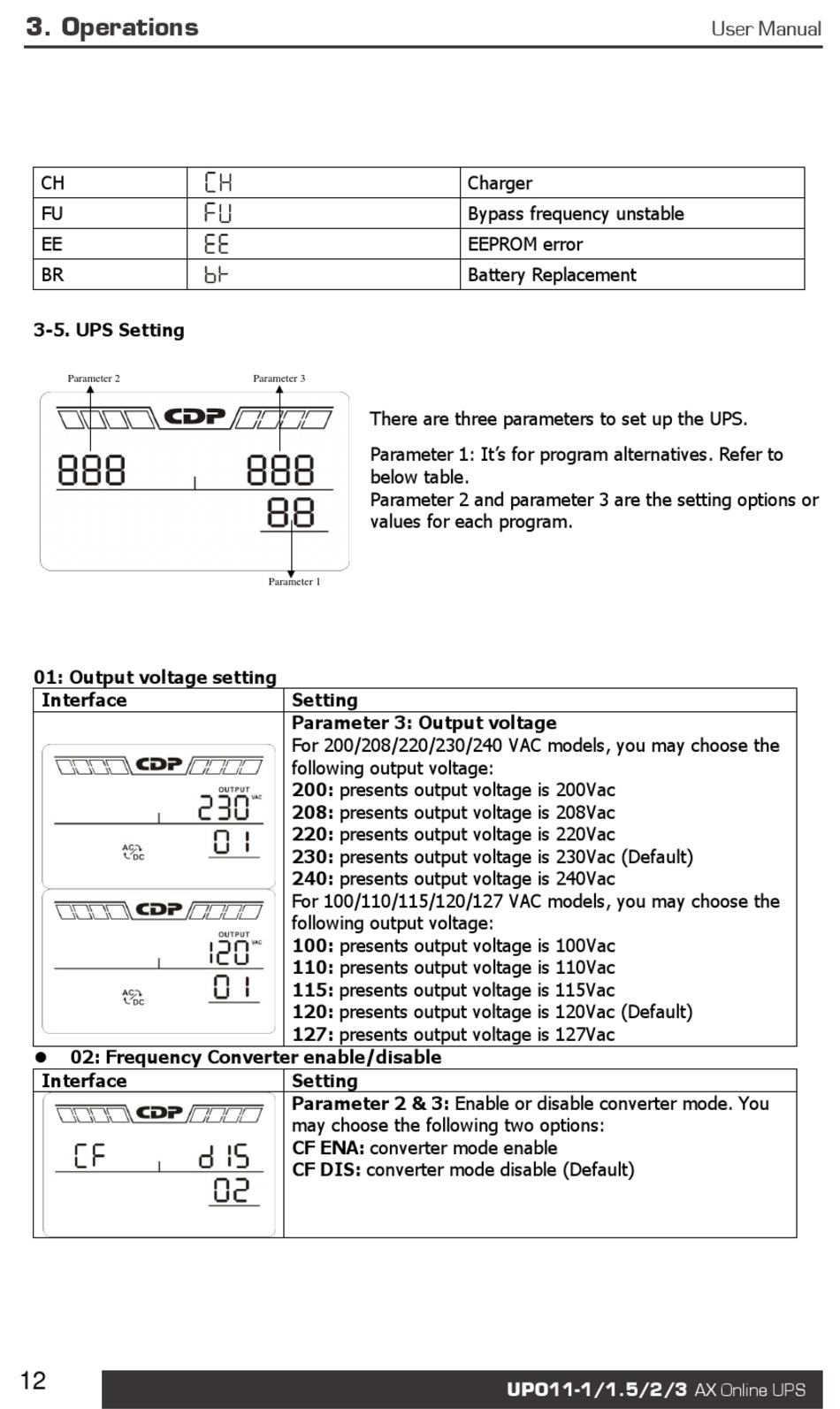

3-5. UPS Setting

Parameter 2
01: Output voltage setting
Interface
02: Frequency Converter enable/disable

Interface
12
Parameter 3
There are three parameters to set up the UPS.
Parameter 1: It's for program alternatives. Refer to
below table.
Parameter 2 and parameter 3 are the setting options or
values for each program.
Parameter 1
Setting
Parameter 3: Output voltage
For 200/208/220/230/240 VAC models, you may choose the
following output voltage:
200: presents output voltage is 200Vac
208: presents output voltage is 208Vac
220: presents output voltage is 220Vac
230: presents output voltage is 230Vac (Default)
240: presents output voltage is 240Vac
For 100/110/115/120/127 VAC models, you may choose the
following output voltage:
100: presents output voltage is 100Vac
110: presents output voltage is 110Vac
115: presents output voltage is 115Vac
120: presents output voltage is 120Vac (Default)
127: presents output voltage is 127Vac
Setting
Parameter 2 & 3: Enable or disable converter mode. You
may choose the following two options:
CF ENA: converter mode enable
CF DIS: converter mode disable (Default)
Charger
Bypass frequency unstable
EEPROM error
Battery Replacement
UPO11-1/1.5/2/3 AX Online UPS
User Manual
