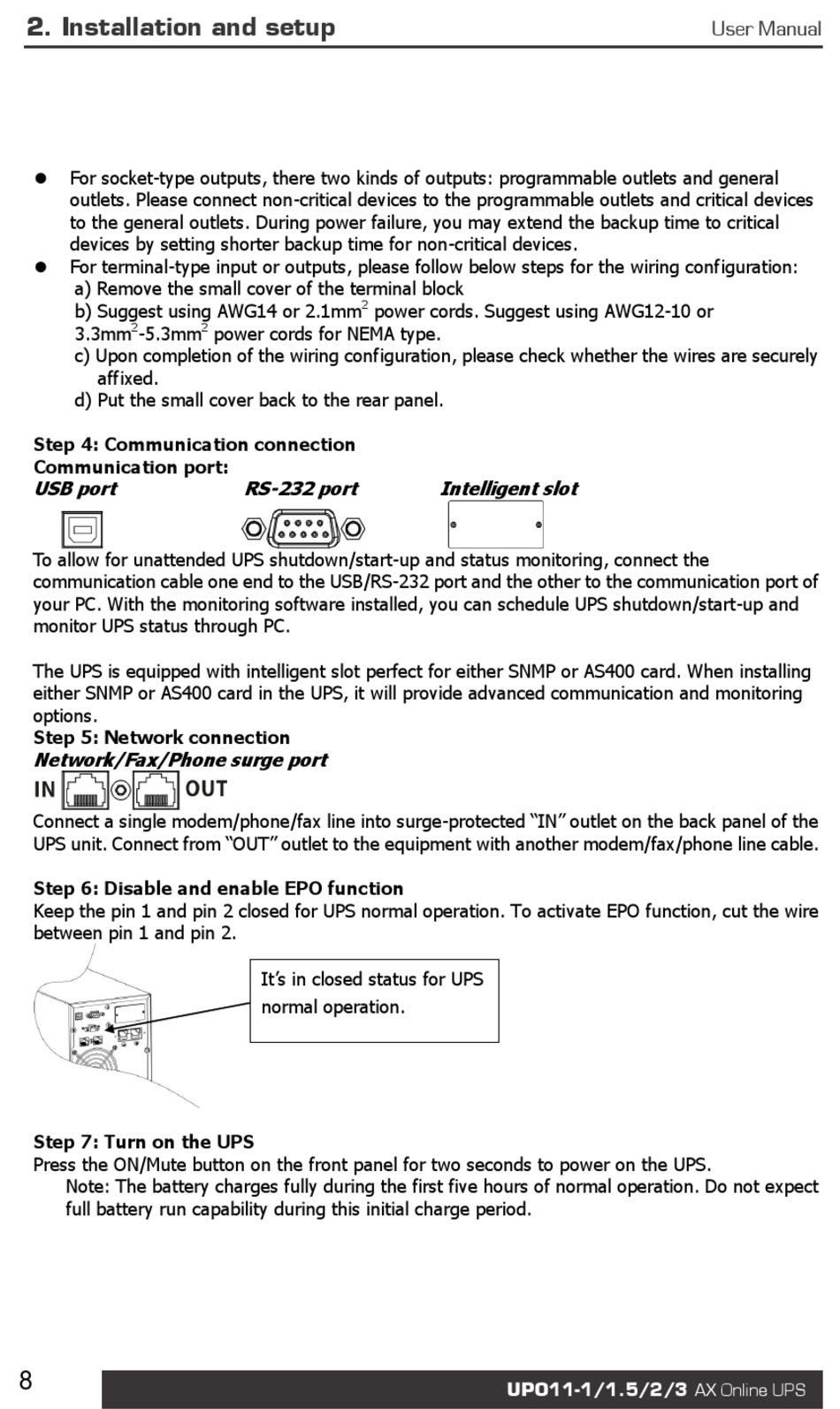

2. Installation and setup
For socket-type outputs, there two kinds of outputs: programmable outlets and general

outlets. Please connect non-critical devices to the programmable outlets and critical devices
to the general outlets. During power failure, you may extend the backup time to critical
devices by setting shorter backup time for non-critical devices.
For terminal-type input or outputs, please follow below steps for the wiring configuration:

a) Remove the small cover of the terminal block
b) Suggest using AWG14 or 2.1mm
2
3.3mm -5.3mm
c) Upon completion of the wiring configuration, please check whether the wires are securely
affixed.
d) Put the small cover back to the rear panel.
Step 4: Communication connection
Communication port:
USB port
To allow for unattended UPS shutdown/start-up and status monitoring, connect the
communication cable one end to the USB/RS-232 port and the other to the communication port of
your PC. With the monitoring software installed, you can schedule UPS shutdown/start-up and
monitor UPS status through PC.
The UPS is equipped with intelligent slot perfect for either SNMP or AS400 card. When installing
either SNMP or AS400 card in the UPS, it will provide advanced communication and monitoring
options.
Step 5: Network connection
Network/Fax/Phone surge port
Connect a single modem/phone/fax line into surge-protected "IN" outlet on the back panel of the
UPS unit. Connect from "OUT" outlet to the equipment with another modem/fax/phone line cable.
Step 6: Disable and enable EPO function
Keep the pin 1 and pin 2 closed for UPS normal operation. To activate EPO function, cut the wire
between pin 1 and pin 2.
Step 7: Turn on the UPS
Press the ON/Mute button on the front panel for two seconds to power on the UPS.
Note: The battery charges fully during the first five hours of normal operation. Do not expect
full battery run capability during this initial charge period.
8
2
power cords for NEMA type.
RS-232 port
It's in closed status for UPS
normal operation.
2
power cords. Suggest using AWG12-10 or
Intelligent slot
UPO11-1/1.5/2/3 AX Online UPS
