Summary of Contents for CDP BA-PC 1200AX

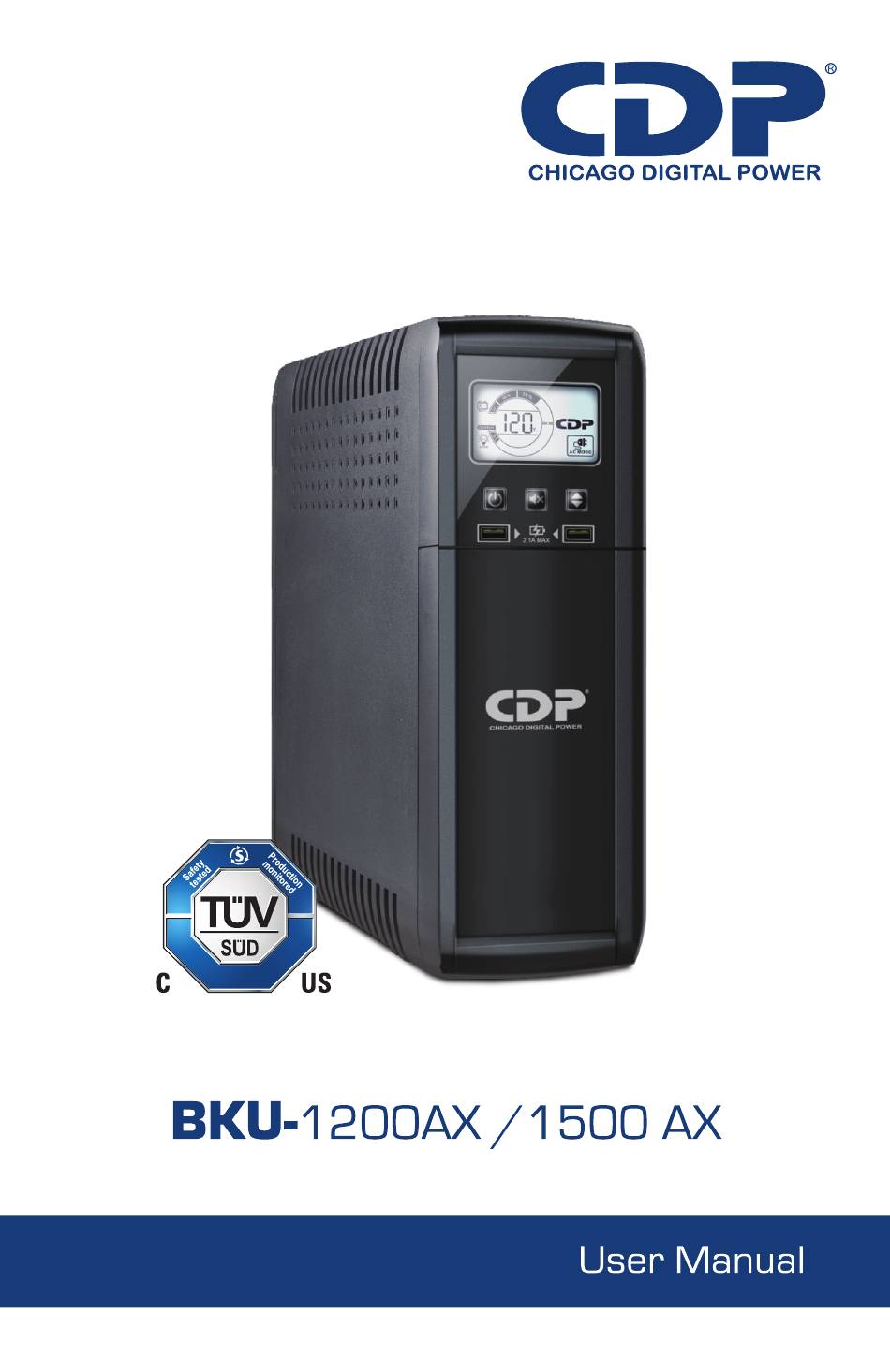

- Page 1 TESTED TO UL1778...
-
Page 3: Safety Instruction
SAFETY INSTRUCTION CAUTION! SAVE THESE INSTRUCTION-This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. Caution -risk of electric shock. The battery circuit is not isolated from the input voltage. Hazardous voltages may occur between the battery terminals and the ground. Before touching, please verify that no voltage is present!. - Page 4 Unplug the UPS prior to cleaning and do not use liquid or spray detergent. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 5: Package Contents
1. Introduction This product is an intelligent line interactive UPS (Uninterruptible Power Supply) which is designed to protect your personal computer or sensitive electronic equipment from all forms of power interference, including complete power failure. 2. Package Contents You should have received the following items inside of package: ... -
Page 6: Installation And Operation
4. Installation and Operation NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. 1) Placement & Storage Conditions Install the UPS in a protected area that is free of excessive dust and has adequate air flow. Please place the UPS at least 20 cm away from other electronic equipment to avoid interference. -
Page 7: Battery Replacement
6) Turn On/Off the Unit Turn on the UPS unit by pressing the power switch. Turn off the UPS unit by pressing the power switch again. 7) Software Download & Installation Please follow steps below to download and install monitoring software: 1. - Page 8 AC Mode Press button to switch displayed information. Output voltage Output frequency Input voltage Input frequency Output power in W Output power in VA Estimated backup time When Boost is functioning, icon will flash every second. Overload in When overload occurs, alarm AC mode will beep every 0.5 second.
- Page 9 Output power in W Output power in VA If alarm is mute, icon will be on. Alarm will beep every When battery level is low, icon will flash second. This alarm can not every second. be mute. Overload in When overload occurs, alarm battery mode will beep every 0.5 second.
-
Page 10: Troubleshooting
6. Trouble Shooting Use the table below to solve minor problems. Problem Possible Cause Solutions Nothing is displayed The UPS is not on. Press the power switch again to turn on the LCD screen. on the UPS. Battery voltage is too low. Charge the battery at least 6 hours.
