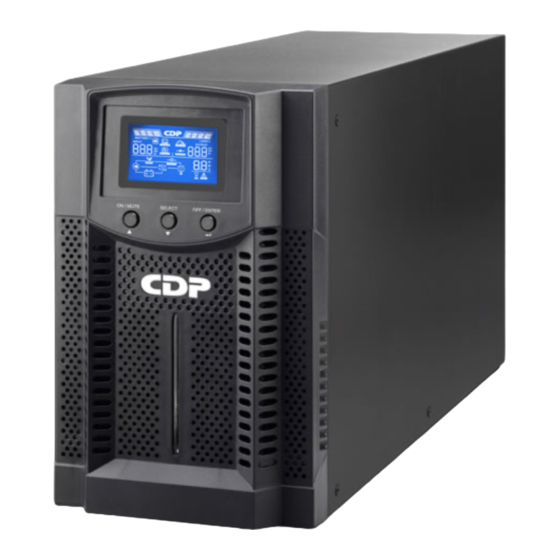

CDP UPO 11-1 User Manual

Customer made - colombia rack/tower online ups
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual

UPO 11-1-1.5-2-3 (AX) UPO 11-1RT,
1.5RT, 2RT, 3RT PF1.0
Customer Made - COLOMBIA
Rack/Tower Online UPS
Uninterruptible Power Supply System
Version: 1.0 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UPO 11-1 and is the answer not in the manual?

Questions and answers

Related Manuals for CDP UPO 11-1

Summary of Contents for CDP UPO 11-1

  • Page 1: User Manual

    User Manual UPO 11-1-1.5-2-3 (AX) UPO 11-1RT, 1.5RT, 2RT, 3RT PF1.0 Customer Made - COLOMBIA Rack/Tower Online UPS Uninterruptible Power Supply System Version: 1.0 2017...

  • Page 2: Table Of Contents

    Table of Contents 1. Important Safety Warning..............1 1-1. Transportation..................1 1-2. Preparation....................1 1-3. Installation....................1 1-4. Operation....................1 1-5. Maintenance, service and faults..............2 2. Installation and setup................4 2-1. Rear panel view..................4 2-2. Operating principle..................5 2-3. Install the UPS...................6 2-4. Setup the UPS....................7 2-5. Battery Replacement..................9 2-6 Battery Kit Assembly (option)..............11 3.

  • Page 3: Important Safety Warning

    1. Important Safety Warning Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully. 1-1.

  • Page 4: Maintenance, Service And Faults

     In order to fully disconnect the UPS system, first press the OFF/Enter button to disconnect the mains. Prevent no fluids or other foreign objects from inside of the UPS system. 1-5. Maintenance, service and faults The UPS system operates with hazardous voltages. Repairs may be carried out only by qualified maintenance personnel.
  • Page 5 Manufacture Type Rated Toplite (Guangzhou) NPW45-12 12V dc, 9.0 Ah Technology Battery Co Ltd UXW460-12 12V dc, 9.0 Ah (MH29104) NPW36-12 12V dc, 7.2 Ah UXW360-12 12V dc, 7.2 Ah NPW45-12 FR 12V dc, 7.0 Ah UXW460-12 / FR 12V dc, 7.0 Ah NPW36-12 FR 12V dc, 7.0 Ah CSB Battery Co Ltd...

  • Page 6: Installation And Setup

    2. Installation and setup NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. OPTIONAL: If the end user wants other cases for application outdoor, it is posible to change the cases; consult your dealer.

  • Page 7: Operating Principle

    RT Models 1. Programmable outlets: connect to non-critical loads. 2. Output receptacles: connect to mission-critical loads. 3. AC input 4. Network/Fax/Modem surge protection 5. USB communication port 6. RS-232 communication port 7. SNMP intelligent slot 8. Emergency power off port (EPO) 9.

  • Page 8: Install The Ups

    2-3. Install the UPS(Only for RT Models) For safety consideration, the UPS is shipped out from factory without connecting battery wires. Before install the UPS, please follow below steps to re-connect battery wires first. This UPS can be either displayed on the desk or mounted in the 19” rack chassis. Please choose proper installation to position this UPS.

  • Page 9: Setup The Ups

    2-4. Setup the UPS Before installing the UPS, please read below to select proper location to install UPS. 1. UPS should be placed on the flat and clean surface. Place it in an area away from vibration, dust, humidity, high temperature, flammable liquids, gases, corrosive and conductive contaminants.
  • Page 10 When connecting external battery packs, please be sure to connect polarity correctly. Connect positive pole of battery pack to positive pole of external battery connector in UPS and negative pole of battery pack to negative pole of external battery connector in UPS. Polarity misconnection will cause UPS internal fault.

  • Page 11: Communication Port

    The UPS is equipped with intelligent slot perfect for either UPO SNMP or SNMP web card box or CDP AS400 card (dry contacts). When installing either UPO SNMP or SNMP web card box or CDP AS400 card (dry contacts) in the UPS, it will provide advanced communication and monitoring options.

  • Page 12: Battery Replacement

    Step 8: Install software For optimal computer system protection, install UPS monitoring software to fully configure UPS shutdown. Use supplied RS-232 or USB communication cable to connect RS-232/USB port of UPS and RS-232/USB port of PC. Then, follow below steps to install monitoring software.

  • Page 13: Battery Kit Assembly (Option)

    2-6 Battery Kit Assembly (option) NOTICE:Please assemble battery kit first before installing it inside of UPS. Please select correct battery kit procedure below to assemble it.
  • Page 14 2-Battery kit 3-Battery kit...
  • Page 15 4-Battery kit 5-Battery kit...

  • Page 16: Operations

    3.Operations 3.1. Button Operation Button Function ON/Mute  Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds Button to turn on the UPS.  Mute the alarm: After the UPS is turned on in battery mode, press and hold this button for at least 3 seconds to disable or enable the alarm system.

  • Page 18: Audible Alarm

    3.3.Audible Alarm Battery Mode Sounding every 5 seconds Low Battery Sounding every 2 seconds Overload Sounding every second Fault Continuosly sounding Bypass Mode Sounding every 10 seconds 3.4.LCD Display wordings index 3.5.UPS Settings There are three parameters to set up the UPS. Parameter 1: It´s for program alternatives.
  • Page 19 01: Output voltaje setting  Interface Setting Parameter 2: Output voltaje For 200/208/220/230/240 VAC models, you may choose the following output voltage: 200: presents output voltage is 200Vac 208: presents output voltage is 208Vac 220: presents output voltage is 220Vac 230: presents output voltage is 230Vac (Default) 240: presents output voltage is 240Vac For 100/110/115/120/127 VAC models, you may choose the...
  • Page 20 04: ECO enable/disable  Interface Setting Parameter 2: Enable or disable ECO function. You may choose the following two options: ENA: ECO mode enable DIS: ECO mode disable (Default) 05: ECO voltaje range setting  Interface Setting Parameter 2: Set the acceptable high voltage point and low voltage point for ECO mode by pressing Down key or Up key.
  • Page 21 07: Bypass voltaje range setting  Interface Setting Parameter 2: Set the acceptable high voltage point and acceptable low voltage point for Bypass mode by pressing the Down key or Up key. HLS: Bypass high voltage point For 200/208/220/230/240 VAC models: 230-264: setting the high voltage point in parameter 3 from 230Vac to 264Vac.
  • Page 22 09: Programmable outlets enable/disable  Interface Setting Parameter 2: Enable or disable programmable outlets. ENA: Programmable outlets enable DIS: Programmable outlets disable (Default) 10: Programmable outlets setting  Interface Setting Parameter 2: Set up backup time limits for programmable outlets. 0-999: setting the backup time limits in minutes from 0-999 for programmable outlets which connect to non-critical devices on battery mode.
  • Page 23 13: Maximum charger current setting  Interface Setting Parameter 2: Set up the charger maximum current. For low voltage model with 24/36/48VDC 1/2/4/6/8: setting the charger maximum current 1/2/4/6/8 in Ampere. (Default: 2A) For high voltage model with 24/36/48VDC 1/2/4/6/8/10/12: setting the charger maximum current 1/2/4/6/8/10/12 in Ampere.
  • Page 24 16: EPO Logic setting  Interface Setting Parameter 2: Set up the EPO function control logic. AO: Active Open (Default). When AO is selected as EPO logic, it will activate EPO function with Pin 1 and Pin 2 in open status. AC: Active Close.

  • Page 25: Operating Mode Description

    19: Acceptable input voltaje range setting  Interface Setting Parameter 2: Set the acceptable high voltage point and acceptable low voltage point for input voltage range by pressing the Down key or Up key. HLS: Input high voltage point For 200/208/220/230/240 VAC models: 280/290/300: setting the high voltage point in parameter 2.

  • Page 26: Operating Mode

    Operating Mode Description LCD Display ECO mode Energy saving mode: When the input voltaje is whitin voltaje regulation range, UPS will bypass voltaje to output for energy saving. The UPS will also charge the battery at ECO mode. Frequency Converter When input frequency is within 40Hz mode to 70Hz, the UPS can be set at...

  • Page 27: Faults Reference Code

    Bypass mode When input voltaje is within aceptable range but UPS is overload, UPS will enter bypass mode or bypass mode can be set by front panel. Alar mis sounding every 10 seconds Standby mode UPS is powered off and no output supply power, but still can charge batteries.

  • Page 28: Warning Indicator

    3.8.Warning indicator NOTE: “Site Wiring Fault” function can be enabled / disabled via software. Please check software manual for details.

  • Page 29: Troubleshooting

    4.Troubleshooting If the UPS system does not opérate correctly, please solve the problema by using the table below: Symptom Possible Cause Remedy No indication and alarm even The AC input power is not Check if input power cord though the mains is normal. connected well.

  • Page 30: Storage And Maintenance

    Symptom Possible Cause Remedy Fault code is shown as 14 and The UPS shut down Check output wiring and if automatically because short connected devices are in short the icon is lighting on circuit occurs on the UPS circuit status. LCD display.

  • Page 31: Specifications

    6.Specifications – Tower Models MODEL UPO 11-1(AX) UPO 11-1.5(AX) UPO 11-2(AX) UPO 11-3(AX) CAPACITY* 1000VA/1000W 1500VA/1500W 2000VA/2000W 3000VA / 3000W INPUT Low Line 80VAC/70VAC/60VAC/55VAC ± 5 % Transfer (based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)
  • Page 32 Optional SNMP / Dry Contacts Power management from SNMP manager and web browser / CDP AS400 Card * Derate capacity to 80% of capacity in Frequency converter mode and to 80% when the output voltage is adjusted to 100VAC. ** Product specifications are subject to change without further notice.
