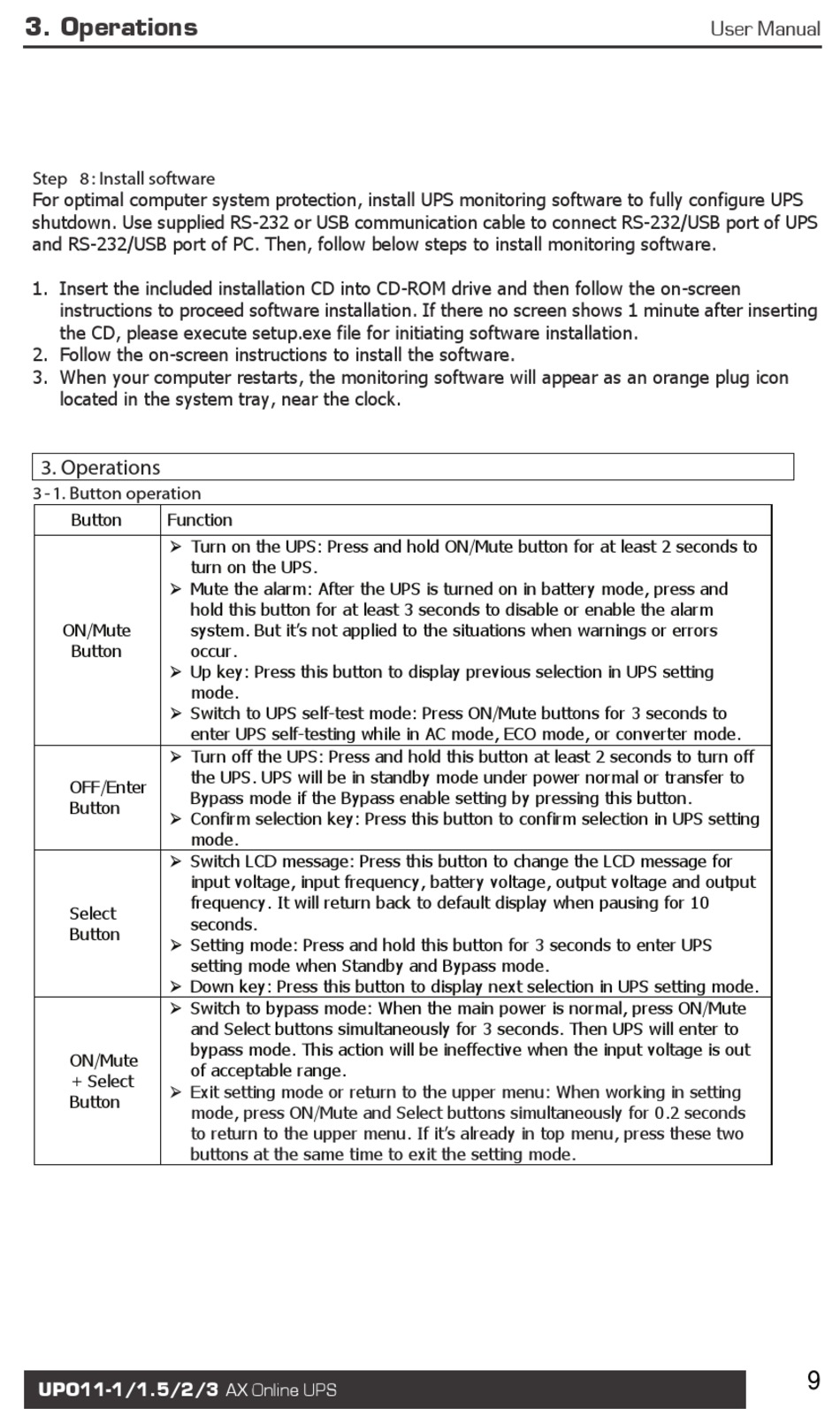

3. Operations

Step 8 : Install software
For optimal computer system protection, install UPS monitoring software to fully configure UPS
shutdown. Use supplied RS-232 or USB communication cable to connect RS-232/USB port of UPS
and RS-232/USB port of PC. Then, follow below steps to install monitoring software.
1. Insert the included installation CD into CD-ROM drive and then follow the on-screen
instructions to proceed software installation. If there no screen shows 1 minute after inserting
the CD, please execute setup.exe file for initiating software installation.
2. Follow the on-screen instructions to install the software.
3. When your computer restarts, the monitoring software will appear as an orange plug icon
located in the system tray, near the clock.
3. Operations

3 - 1. Button operation

Button Function
 Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds to
 Mute the alarm: After the UPS is turned on in battery mode, press and
ON/Mute
Button
 Up key: Press this button to display previous selection in UPS setting
 Switch to UPS self-test mode: Press ON/Mute buttons for
 Turn off the UPS: Press and hold this button at least 2 seconds to turn off
OFF/Enter
Button
 Confirm selection key: Press this button to confirm selection in UPS setting
 Switch LCD message: Press this button to change the LCD message for
Select
Button
 Setting mode: Press and hold this button for
 Down key: Press this button to display next selection in UPS setting mode.
 Switch to bypass mode: When the main power is normal, press ON/Mute
ON/Mute
+ Select
 Exit setting mode or return to the upper menu: When working in setting
Button
UPO11-1/1.5/2/3 AX Online UPS
turn on the UPS.
hold this button for at least 3 seconds to disable or enable the alarm
system. But it's not applied to the situations when warnings or errors
occur.
mode.
enter UPS self-testing while in AC mode, ECO mode, or converter mode.
the UPS. UPS will be in standby mode under power normal or transfer to
Bypass mode if the Bypass enable setting by pressing this button.
mode.
input voltage, input frequency, battery voltage, output voltage and output
frequency. It will return back to default display when pausing for 10
seconds.
setting mode when Standby and Bypass mode.
and Select buttons simultaneously for
bypass mode. This action will be ineffective when the input voltage is out
of acceptable range.
mode, press ON/Mute and Select buttons simultaneously for 0.2 seconds
to return to the upper menu. If it's already in top menu, press these two
buttons at the same time to exit the setting mode.
3
3 seconds to enter UPS
3 seconds. Then UPS will enter to
