Aries 2051179 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Easy

Parts List

1 Driver / left running board
1 Passenger / right running board

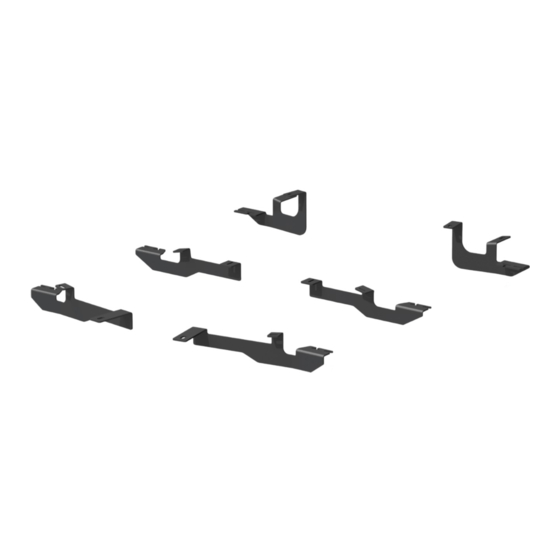

2 Mounting bracket, front
2 Mounting bracket, middle
2 Mounting bracket, rear
4 Hex head screw, M6 x 1.25
4 Flat washer, M6
8 Bolt plate, M10
8 Flat washer, M10
8 Lock washer, M10
8 Hex nut, M10
8 Plastic bolt retainer

Tools Required

Ratchet Socket, 10mm
Torque wrench Socket, 17mm
Flathead screwdriver Level

Torque Specifications

M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
3/8" bolt 16 ft-lbs.
7/16" bolt 20 ft-lbs.
1/2" bolt 28 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM
Product Photo
AeroTread

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
• NEED ASSISTANCE? • 877.287.8634
(not included)
™
Rear
Front
• 2051179-INS-RB • PAGE 1
2051179
Front
Front
Rear
Rear
