Aries 2051181 Installation Manual

INSTALLATION MANUAL

Level of Difficulty

Easy

Parts List

1 Driver / left running board*
1 Passenger / right running board*

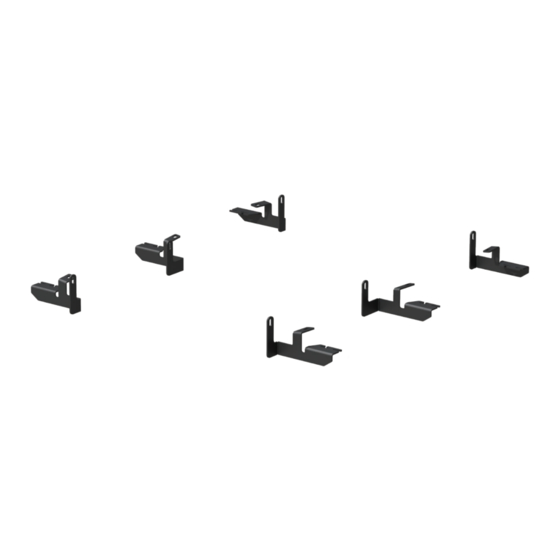

1 Driver / left bracket, front
1 Driver / left bracket, middle
1 Driver / left bracket, rear
1 Passenger / right bracket, front
1 Passenger / right bracket, middle
1 Passenger / right bracket, rear
6 In-pullnut, M8
6 Hex bolt, M8
10 Flat washer, M8
10 Lock washer, M8
4 Hex nut, M8
2 Fishwire, M10
2 Bolt plate, M10
2 Flat washer, M10
2 Lock washer, M10
2 Hex nut, M10
2 Plastic bolt retainer, M10
* Running boards sold separately
Additional Hardware*
12 Hex bolt, M8
12 Flat washer, M8
12 Lock washer, M8
12 Hex nut, M8
* Aluminum side bars are supplied with
additional hardware. Quantities listed are in
addition to the standard supplied hardware.

Tools Required

Ratchet Socket set
Level Wrench
Screwdriver

Torque Specifications

M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM
Product Photo
AeroTread

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.

Product Registration

CURT Group stands behind our products with industry leading warranties.
You can help us continue to improve our product line and help us understand
your needs by registering your purchase by visiting:
warranty.curtgroup.com/surveys
At CURT Group, customer is king. We value your feedback and we use that information to make
improvements on our products. Please, take a minute and let us know how we are doing.
• NEED ASSISTANCE? • 877.287.8634
(not included)
™
Rear
Front
• 2051181-INS-RB • PAGE 1
2051181
Front
Front
Rear
Rear
