Aries 2051158 Installation Manual

INSTALLATION MANUAL

Parts List

1 Driver / left running board
1 Passenger / right running board
2 Mounting bracket, front
2 Mounting bracket, rear
2 Support plate
4 T-bolt, 75mm tab
4 Carriage bolt, 8mm
2 U-bolt, 8mm
8 Flat washer, 8mm
8 Lock washer, 8mm
8 Hex nut, 8mm
2 Bolt retainer, plastic, 8mm
4 Flat washer, 12mm
4 Lock washer, 12mm
4 Hex nut, 12mm
4 Bolt retainer, plastic, 12mm
Additional Hardware*
12 Hex bolt, 8mm
12 Flat washer, 8mm
12 Lock washer, 8mm
12 Hex nut, 8mm
* Running boards are supplied
with additional hardware.
Quantities listed are in addition
to the standard supplied hardware.

Tools Required

Ratchet Socket, 13mm
Level Socket, 16mm
Flathead screwdriver Wrench, 13mm
Level of Difficulty
Easy

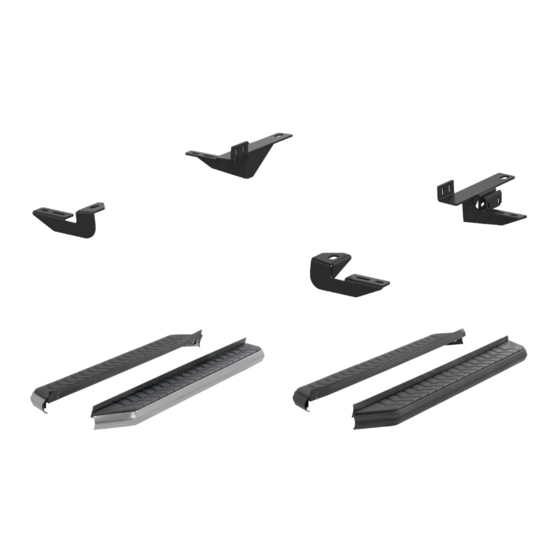

Product Image

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For stainless steel, polish may be used to clear small scratches
and scuffs on the finish. Mild soap may be used also to clean the product.
For black finishes, mild soap may be used to clean the product.
PAGE 1 • 2051158-INS-RB • 877.287.8634 • NEED ASSISTANCE?
Rear
Front
2051158
Scan
for helpful
install tips
Rear
Front
Rear
Front
• ARIESAUTOMOTIVE.COM
