PIN TRIGGERING
For this operation the device is triggered by removing or applying zero volts to input terminals 1-12. No external
pull-up resistors will be required. This is generally achieved via the digital communicator outputs of a control
panel. On receiving an input to the pins terminals the unit will signal alarm conditions and will generate the
relevant messages and forward them via the Gemini Global Platform to the ARC. Installers are advised that the
intended use should avoid situations where the rate of trigger exceeds the rate at which messages are received
at the ARC receiver.

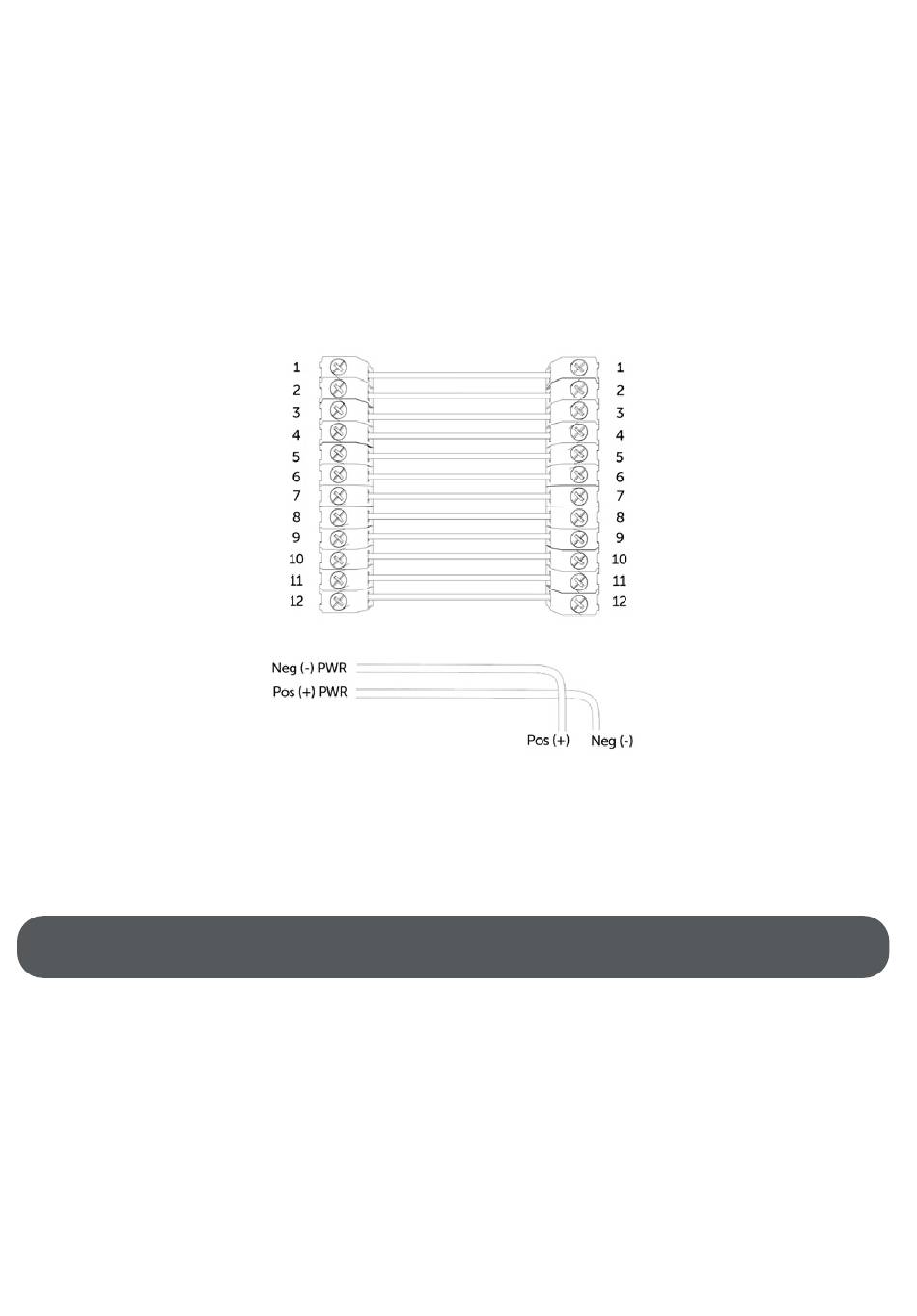

Figure 5 - Example of pin triggering wiring
Control Panel
PIN INPUT CONFIGURATION
•
To self-learn the current panel input status, press button C whilst in quiescent/normal state for 5
seconds. LED 3 will flash red twice once completed.
•
To change the input from negative removed or applied to positive removed or applied,
, change the pin bias via My Base under the Hardware menu button and use the A+ terminal instead
of RTN.
IF YOU CANNOT CHANGE THE PANEL'S POLARITY AND YOU DO NOT HAVE ACCESS TO MY BASE OR
THE WEBSITE, PLEASE SPEAK TO OUR TECHNICAL SUPPORT TEAM
DualCom Pro device general inputs are defined as SIA untyped alarms for pins 1-12 (excluding pin 4)
UA/UR8001 to 8012 on standard product configuration.
Example: [#123456|NUA8001|AChannel 1 Alarm]
[#123456|NUR8001|AChannel 1 Restore]
DualCom Pro device pin 4 Open / Close inputs defined as SIA alarm OP and CL
OP/CL8004 on standard product configuration.
Example: [#123456|NOP8004|ASystem Set]
[#123456|NCLR8004|ASystem Unset]
