Communication Ports

The RUGGEDCOM RMC40 can be equipped with various types of communication
ports to enhance its abilities and performance.
1
2
1
2
3
4

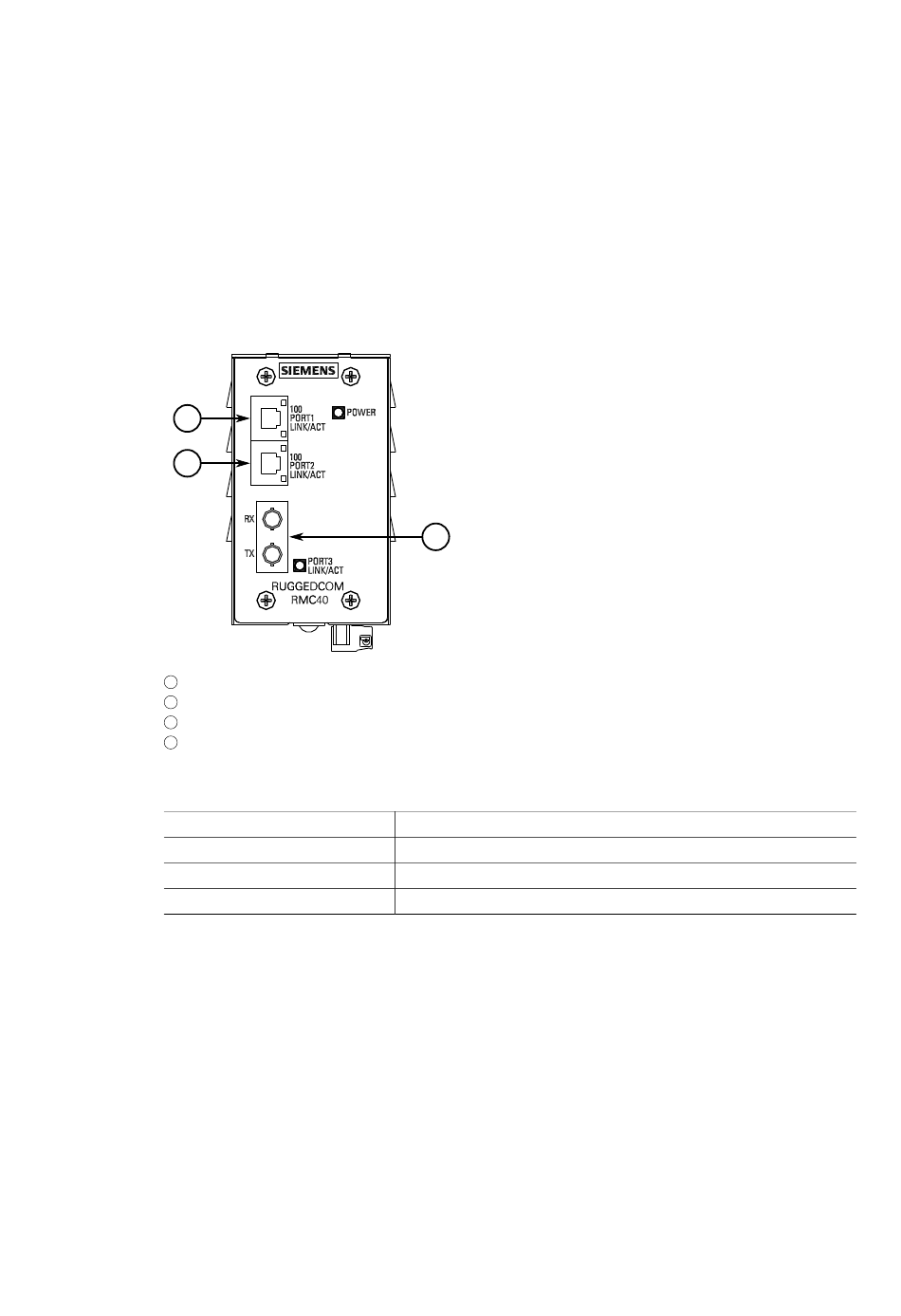

Figure 3.1
3.1

Copper Ethernet Ports

The RUGGEDCOM RMC40 supports two 10/100Base-TX Ethernet ports that allow
connection to a standard Category 5 (CAT-5) unshielded twisted-pair (UTP) cable
with an RJ45 male connector. The RJ45 receptacles are directly connected to the
chassis ground on the device and can accept CAT-5 shielded twisted-pair (STP)
cables.
RUGGEDCOM RMC40
Installation Manual, 04/2021, C79000-G8976-1009-09
Port 1
Port 2
Port 3
Port 4
Port Assignment
Port
1
2
3 to 4
3
Copper Ethernet Port
Copper Ethernet Port
Fiber Optic Ethernet Port
Type
3
