Icom DC-197 Service Manual Addendum page 2

(Replacement page)
July 2016

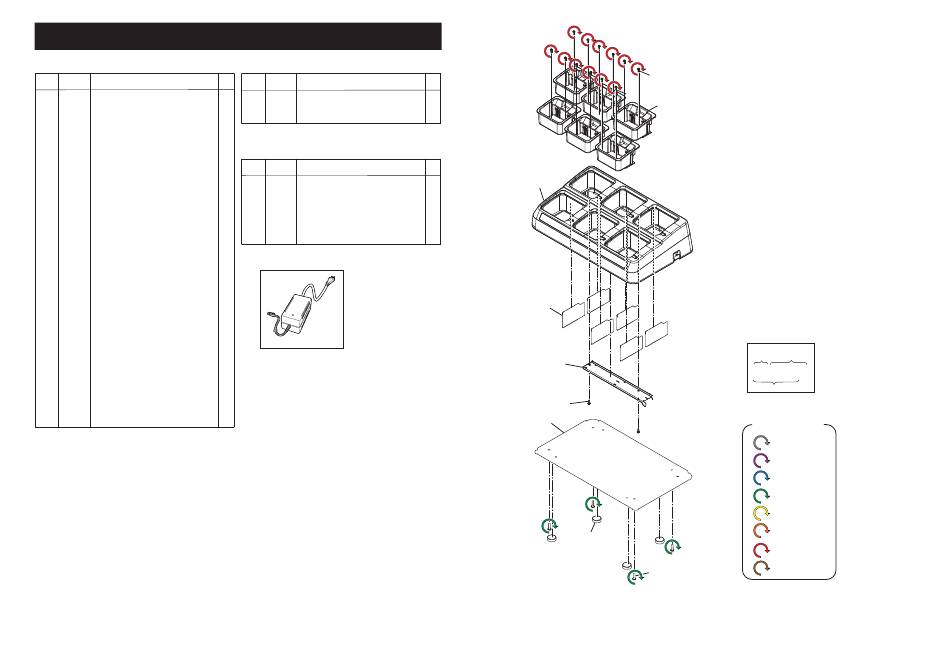

SECTION 3. MECHANICAL PARTS
[CHASSIS PARTS]
REF ORDER
DESCRIPTION
NO. NO.
W1* 8900011312 OPC-1161
EP1 (Option) AD-120 [#01]
(Option) AD-120 [#02]
(Option) AD-120 [#03]
(Option) AD-121 [#11]
(Option) AD-121 [#12]
(Option) AD-121 [#13]
(Option) AD-122 [#21]
(Option) AD-122 [#22]
(Option) AD-122 [#23]
(Option) AD-124 [#26]
(Option) AD-124 [#27]
(Option) AD-124 [#28]
(Option) AD-129 [#31]
(Option) AD-129 [#32]
(Option) AD-129 [#33]
(Option) AD-128 [#36]
(Option) AD-128 [#37]
(Option) AD-128 [#38]
(Option) AD-120 [#50]
(Option) AD-121 [#51]
(Option) AD-122 [#52]
(Option) AD-124 [#53]
(Option) AD-129 [#54]
MP1 8010021920 3325 CASE
MP2 8110009970 3325 COVER
MP3 8930081190 3325 PLATE D
MP4 8930040590 RUBBER LEG (K)/FF-008 (P4060)-AR791
MP5 8810008661 PHBT M3 X 8 NI-ZC3
MP6 8810008661 PHBT M3 X 8 NI-ZC3
MP7 8810009991 PHBT M3 X 8 NI-ZK3 [#01]
8810009991 PHBT M3 X 8 NI-ZK3 [#02]
8810009991 PHBT M3 X 8 NI-ZK3 [#03]
8810009991 PHBT M3 X 8 NI-ZK3 [#11]
8810009991 PHBT M3 X 8 NI-ZK3 [#12]
8810009991 PHBT M3 X 8 NI-ZK3 [#13]
8810009991 PHBT M3 X 8 NI-ZK3 [#21]
8810009991 PHBT M3 X 8 NI-ZK3 [#22]
8810009991 PHBT M3 X 8 NI-ZK3 [#23]
8810009371 PHBT M3 X12 NI-ZK3 [#26]
8810009371 PHBT M3 X12 NI-ZK3 [#27]
8810009371 PHBT M3 X12 NI-ZK3 [#28]
8810009991 PHBT M3 X 8 NI-ZK3 [#31]
8810009991 PHBT M3 X 8 NI-ZK3 [#32]
8810009991 PHBT M3 X 8 NI-ZK3 [#33]
8810009991 PHBT M3 X 8 NI-ZK3 [#36]
8810009991 PHBT M3 X 8 NI-ZK3 [#37]
8810009991 PHBT M3 X 8 NI-ZK3 [#38]
8810009991 PHBT M3 X 8 NI-ZK3 [#50]
8810009991 PHBT M3 X 8 NI-ZK3 [#51]
8810009991 PHBT M3 X 8 NI-ZK3 [#52]
8810009371 PHBT M3 X12 NI-ZK3 [#53]
8810009991 PHBT M3 X 8 NI-ZK3 [#54]
MP9 8310082520 BCS STICKER (BC)
*: Refer to "BOARD LAYOUTS" for the location.
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
[MAIN-A1/-A2/-A3/-A4/-A5/-A6 UNIT]
REF ORDER
QTY.
DESCRIPTION
NO. NO.
1 J2* 6510003391 B3B-EH-S (LF) (SN)
6 DS1* 5040002740 RT3-03HRYG
6
6 W1* 8900019470 OPC-2084
6
6
6
6
6
[ACCESSORIES]
6
6
REF ORDER
6
DESCRIPTION
NO. NO.
6
6
EP1 (Option) BC-157S
6
(Option) BC-157S
6
(Option) BC-157S
6
(Option) BC-157S
6
(Option) BC-157S
6
(Option) BC-157S
6
(Option) BC-157S
6
(Option) BC-157S
6
(Option) BC-157S
6
(Option) BC-157S
6
EP2 (Option) BC-157S
1
1
1
4
4
2
12
EP1
12
12
EP2
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
1
3-1
QTY.
1
1
1
QTY.
MP1(CHASSIS)
[#02] 1
(8010021920)
[#03] 1
[#12] 1
[#13] 1
[#22] 1
[#23] 1
[#27] 1
[#32] 1
[#33] 1
[#38] 1
Only [#28] 1
MAIN UNIT×6
MP3(CHASSIS)
(8930081190)
MP6(CHASSIS)
(8810008661)
MP2(CHASSIS)
(8110009970)
MP4(CHASSIS)×4
(8930040590)
MP7(CHASSIS)×12
(Refer to the list.)
EP1(CHASSIS)×6
(Refer to the list.)
Legend:
Ref. No.
Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
Tightening torque
: <0.8 (N･m)>
: <0.7 (N･m)>
: <0.6 (N･m)>
: <0.5 (N･m)>
: <0.4 (N･m)>
: <0.3 (N･m)>
: <0.2 (N･m)>
: <0.1 (N･m)>
MP5(CHASSIS)×4
(8810008661)
