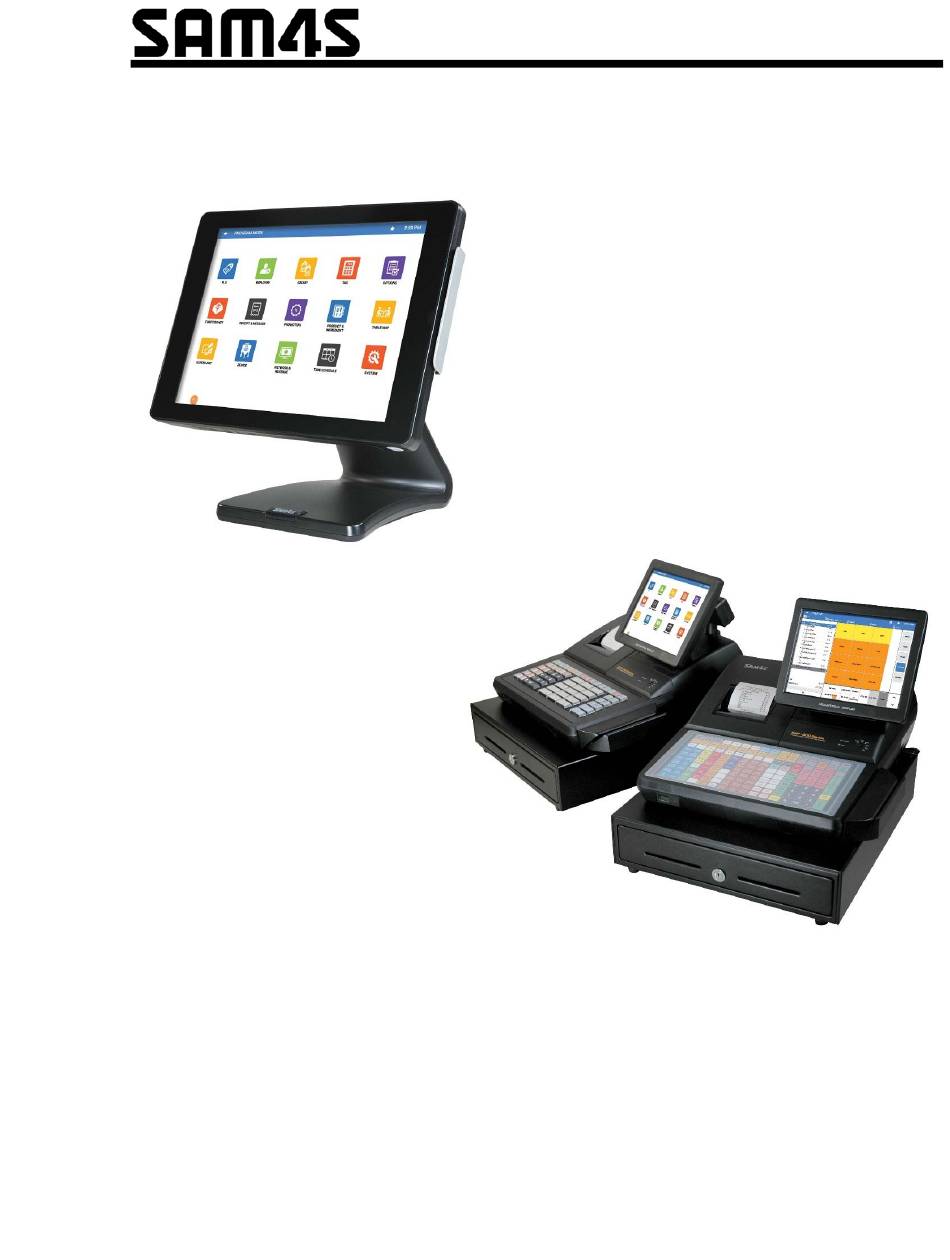

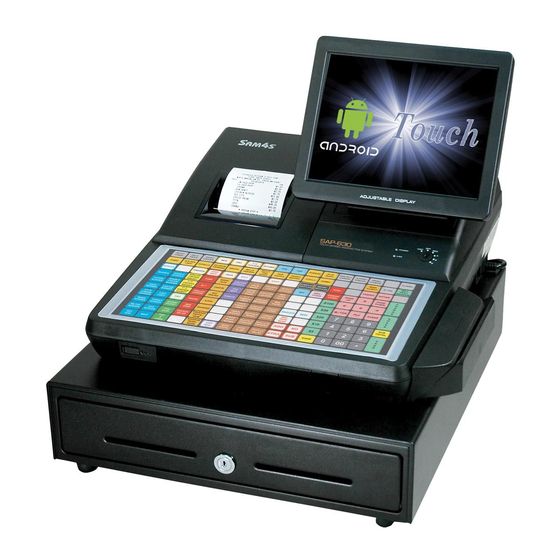

- Page 1 KP Routing Supplement for Sam4POS Sam4POS KP Routing Supplement v2.1 2017, CRS, Inc. All specifications are subject to change without notice.
- Page 2 Sort /Split ..............................22 ETC ................................22 Optional Programming ............................ 23 Receipt / KP Message Programming ......................23 Add a New Receipt/KP Message ......................23 Station Programming ..........................23 Sam4POS KP Routing Supplement v2.1 - 2 - Table of Contents...
- Page 3 KP Route ................................24 KP Route Programming ........................... 24 KP Route Operation ............................. 25 Operation #1 ............................25 Operation #2 ....................Error! Bookmark not defined. Manual Revision History ..........................26 Sam4POS KP Routing Supplement v2.1 - 3 - Table of Contents...
- Page 4 Introduction Overview The printer setup and routing on the Sam4POS terminals is very flexible. We are able to connect Serial or ethernet printers to the terminal. Each station in the system can have printers assigned and mapped. Kitchen printers in a system can be shared by multiple stations.
-
Page 5: Device Programming
Each terminal will have its own device setting programming. To simplify device mapping when multiple terminals are in an IRC network, it is best to program your devices to the same port on each Sam4POS terminal. For example: all Grill Printers on COM2, all Beverage printers on COM1, etcetera. - Page 6 EDIT MODE – Select devices to delete as necessary; Press the X to exit edit mode. • SORT – Sort printers alphabetically. 7. With the new printer added to the list, you can edit the parameters for the printer as necessary. Sam4POS KP Routing Supplement v2.1 - 6 - Table of Contents...
- Page 7 Ethernet COM PORT IP ADDRESS COM1 thru COM4 Type in the IP of the printer (depending on Sam4POS terminal model) (must be in the same range as system) BAUD RATE PORT NUMBER 1200, 2400, 9600, 19200, 38400, 57600, 115200 Type in the PORT number used by the printer...
- Page 8 4. Press OK when complete to add the device mapping or press OK AND CONTINUE to map more printers. Press CANCEL if you want to exit without mapping additional printers to the station. Sam4POS KP Routing Supplement v2.1 - 8 -...
- Page 9 GOTO – Brings up the Device Setting programming. • NEW – To add additional devices. • EDIT – Allows changes to the printer and time period selections. • DELETE – Will delete the selected device assignment. Sam4POS KP Routing Supplement v2.1 - 9 - Table of Contents...
- Page 10 Mode\Time Schedule\KP Time Period. You can add more than one printer/time period for the group. i.e. In an IRC system, you may have KP printers assigned for each station. Sam4POS KP Routing Supplement v2.1 - 10 - Table of Contents...
- Page 11 8. DELETE – Will delete the printer assignment for the selected printer. 9. Press the icon to access the EDIT MODE to select and delete KP Groups or select SORT to sort the KP Groups alphabetically. Sam4POS KP Routing Supplement v2.1 - 11 - Table of Contents...
- Page 12 Printer mapping. The Kitchen Printer area is used to assign printers that will be used on each of the stations in the Sam4POS system. We can configure kitchen printers the same for all station or each individual station. The ability to configure kitchen printers by station was added beginning at v1.0.96.
- Page 13 2. Press OK when complete to add the device mapping or press OK AND CONTINUE to map more printers. Press CANCEL if you want to exit without mapping additional kitchen printers. 3. Your mapped devices will display: Sam4POS KP Routing Supplement v2.1 - 13 - Table of Contents...
- Page 14 EDIT – Allows changes to the settings for the selected Kitchen Printer. You can select an individual printer or multiple printers to edit all at one time. • DELETE – Will delete the selected Kitchen Printer. Sam4POS KP Routing Supplement v2.1 - 14 - Table of Contents...
- Page 15 Select the terminal where the backup device is connected. 2. Press OK when complete to add the device mapping or press CANCEL if you want to exit without mapping additional kitchen printers. Sam4POS KP Routing Supplement v2.1 - 15 - Table of Contents...
- Page 16 OLUMN used for the KP group and selected the time period for the group. 6. When the printer and time period are selected, the KP OPTION selections are displayed. Sam4POS KP Routing Supplement v2.1 - 16 - Table of Contents...
- Page 17 This setting comes from the Device Mapping setting. Press the icon to access the EDIT MODE to select and delete KP Groups or select SORT to sort the KP Groups alphabetically. Sam4POS KP Routing Supplement v2.1 - 17 - Table of Contents...
-
Page 18: Plu Programming
2. Select the PLU you want to program: 3. In the GENERAL section for the selected PLU, select the appropriate PLU STATUS GROUP LINK for the PLU by pressing the green to access the selection dialog: Sam4POS KP Routing Supplement v2.1 - 18 - Table of Contents... - Page 19 5. Pressing the GOTO button in front the PLU/PLU Status Group Link option will bring up the programming for the PLU status group. You can edit the programming for the status group if desired; press the back arrow to return to the PLU programming screen. Sam4POS KP Routing Supplement v2.1 - 19 - Table of Contents...
- Page 20 • EDIT MODE – to select and delete KP Groups or PLU Status Groups • SORT – to sort the KP Groups or PLU Status Groups alphabetically. Sam4POS KP Routing Supplement v2.1 - 20 - Table of Contents...
-
Page 21: Options Programming
REALTIME KV Each item will display at the KV screen when the next item is entered (one item delay). Sam4POS KP Routing Supplement v2.1 - 21 - Table of Contents... - Page 22 PRINT ITEM ONE LINE When selected, KP will only print first line of descriptor. When not selected, KP will print entire descriptor even if it wraps to second line. Sam4POS KP Routing Supplement v2.1 - 22 - Table of Contents...
-
Page 23: Optional Programming
Employee - STATION - Receipt Format programming. Receipt Format is used to assign the receipt message to be used for the selected stations printers. Refer to the appropriate Sam4POS Programming Manual for complete details. 1. Select RECEIPT from the PROGRAM MODE, RECEIPT & MESSAGE menu selections. The receipt programming screen displays. - Page 24 The selected KP Route remains active for the remainder of the transaction, and then returns to the default when the transaction is finalized. STAY DOWN – The selected KP Route will remain active until the next choice. Sam4POS KP Routing Supplement v2.1 - 24 - Table of Contents...
- Page 25 2. The KP Route icon indicates to current route selection: Operation #2 1. Press the KP Route function key located on a MLU or FLU 2. Select the appropriate route from the list: Sam4POS KP Routing Supplement v2.1 - 25 - Table of Contents...
-
Page 26: Manual Revision History
KP Routing updated v2.0 11/7/2018 Release for v1.0.80 and later, new Device Mapping programming Device Mapping \ Kitchen Printer – added configure by station or all v2.1 2/26/2019 stations Sam4POS KP Routing Supplement v2.1 - 26 - Table of Contents...
