Sam4s Titan-560 Installation Guide

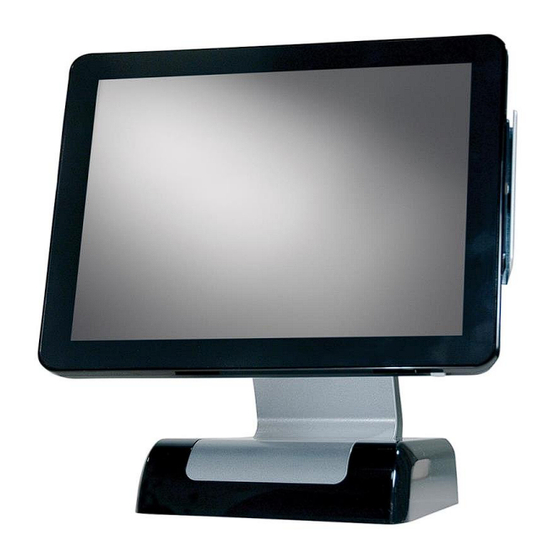

This guide will show you how to setup your Sam4s Titan 560 all in one point of sale terminal. It will show
you where to connect your hardware on the terminal.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sam4s Titan-560
Summary of Contents for Sam4s Titan-560
- Page 1 1-800-PC-AMERICA, 1-800-722-6374 (Voice) 845-920-0800 (Fax) 845-920-0880 Sam4s Titan-560 Installation Guide This guide will show you how to setup your Sam4s Titan 560 all in one point of sale terminal. It will show you where to connect your hardware on the terminal.
- Page 2 64bit. The only Sam4s accessory that has been certified to work with CRE is the Thin Silver MSR. No other optional MSR or external display has been certified to work with CRE. To get a list of supported certified hardware, refer to Supported Hardware Matrix.
- Page 3 Document Version Date Author Description of Changes January 3, 2018 Mathew Piccinich 1st Release...
- Page 4 Connecting the Power Adapter and Routing your peripheral cables 1. To access the ports on the unit, you must remove the plastic cover on the rear of the unit. 2. Locate the handle and lift straight up(not out) to remove the cover. 3.
- Page 5 6. Proceed to route your peripheral’s cable up through the cable routing hole into the cable routing section, similar to how the power adapter cable is routed in the image on the left. 7. Route the cables up through the top of the cable routing section of the terminal, similar to how the power adapter cable is routed in the image in the middle.
- Page 6 9. After connecting all of your peripherals place the port cover and the routing section cover back onto the terminal. 10. Connect the power adapter to an AC outlet 11. Look for the power button on the underside of the terminal display on the right hand side, press it to turn on the terminal.
