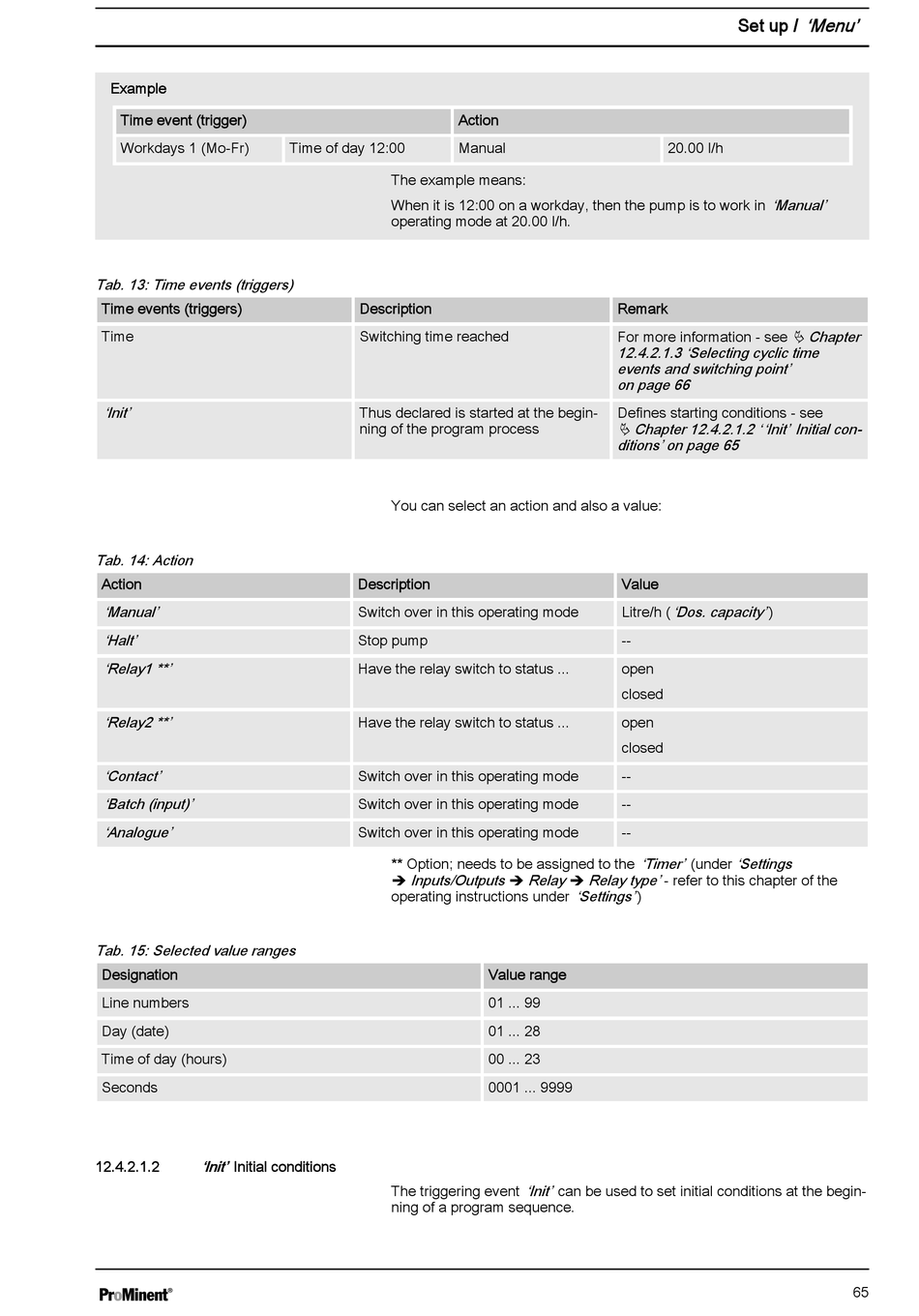

ProMinent DULCO flex Control Operating Instructions Manual page 65

Example
Time event (trigger)
Workdays 1 (Mo-Fr)
Tab. 13: Time events (triggers)
Time events (triggers)
Time
'Init'
Tab. 14: Action
Action
'Manual'
'Halt'
'Relay1 **'
'Relay2 **'
'Contact'
'Batch (input)'
'Analogue'
Tab. 15: Selected value ranges
Designation
Line numbers
Day (date)
Time of day (hours)
Seconds
'Init' Initial conditions
12.4.2.1.2
Action
Time of day 12:00 Manual
The example means:
When it is 12:00 on a workday, then the pump is to work in
operating mode at 20.00 l/h.
Description
Switching time reached
Thus declared is started at the begin‐
ning of the program process
You can select an action and also a value:
Description
Switch over in this operating mode
Stop pump
Have the relay switch to status ...
Have the relay switch to status ...
Switch over in this operating mode
Switch over in this operating mode
Switch over in this operating mode
** Option; needs to be assigned to the
Inputs/Outputs è Relay è Relay type' - refer to this chapter of the
è
operating instructions under
The triggering event
ning of a program sequence.
Remark
For more information - see
12.4.2.1.3 'Selecting cyclic time
events and switching point'
on page 66
Defines starting conditions - see
Ä Chapter 12.4.2.1.2 ' 'Init' Initial con‐
ditions' on page 65
Value
Litre/h (
--
open
closed
open
closed
--
--
--
'Timer' (under 'Settings
'Settings' )
Value range
01 ... 99
01 ... 28
00 ... 23
0001 ... 9999
'Init' can be used to set initial conditions at the begin‐
'Menu'
Set up /
20.00 l/h
'Manual'
Ä Chapter
'Dos. capacity' )
