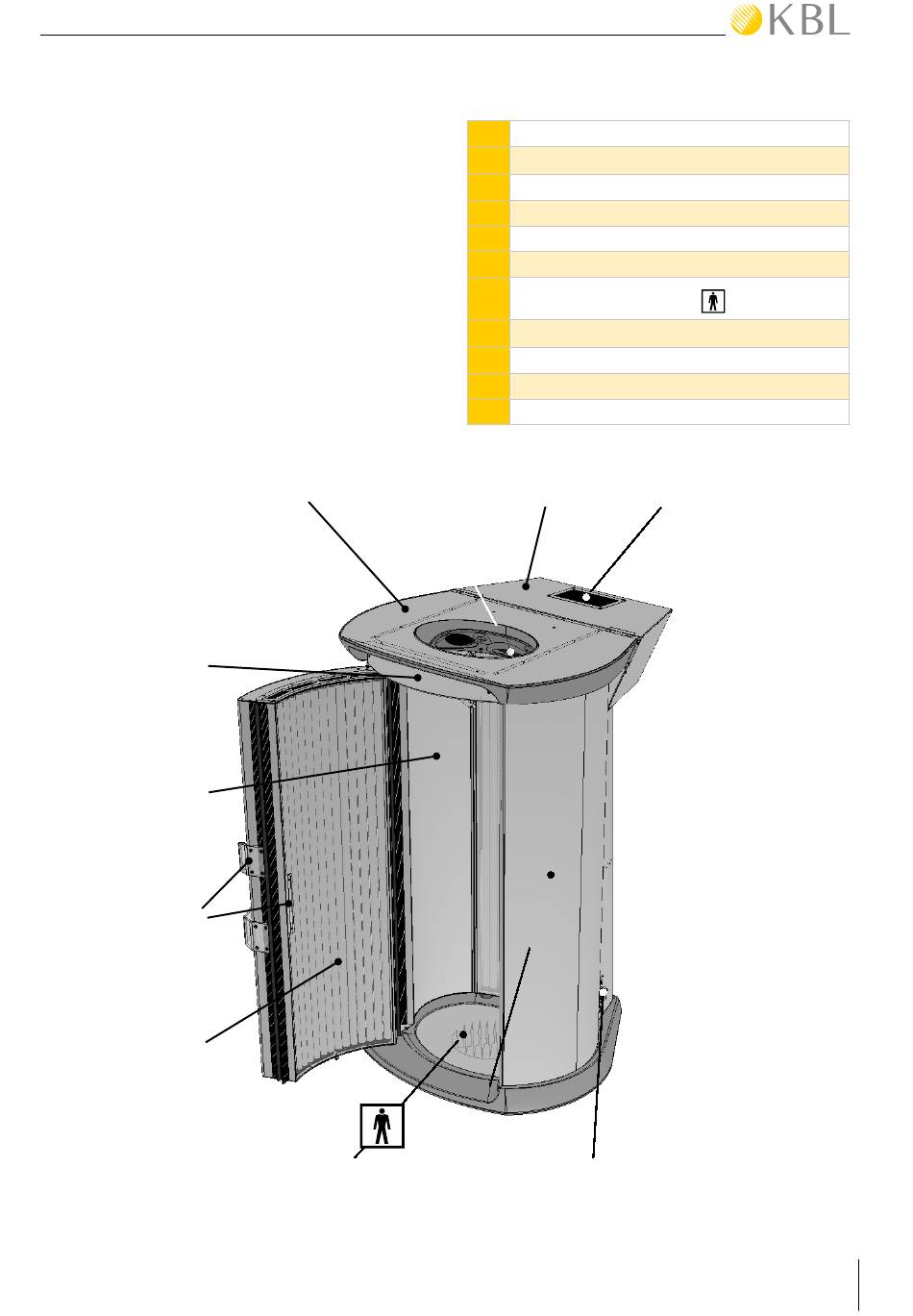

4.2 Components
The device basically consists of the following
components:
• Two side parts, comprising 12 tubes each.
• Rear part including 14 tubes.
• Door including 12 tubes.
• Top crown including interior control panel.
• Base plate.
• Fan casing.
⑪
⑩
⑨
⑧
①
②
⑦
⑥
1
Top crown with ventilation opening
2
Interior control panel
3
Fan casing
4
Exhaust opening
5
Supply connections
6
Lateral part, right-hand side
7
Floor plate or vibraNano
8
Door
9
Door handles
10
Lateral part, left-hand side
11
Facing of unit lighting at top crow
③
⑤
O p e r a t i n g I n s t r u c t i o n s | KBL Tower beautyShaper
