Summary of Contents for Avery Weigh-Tronix ZM205

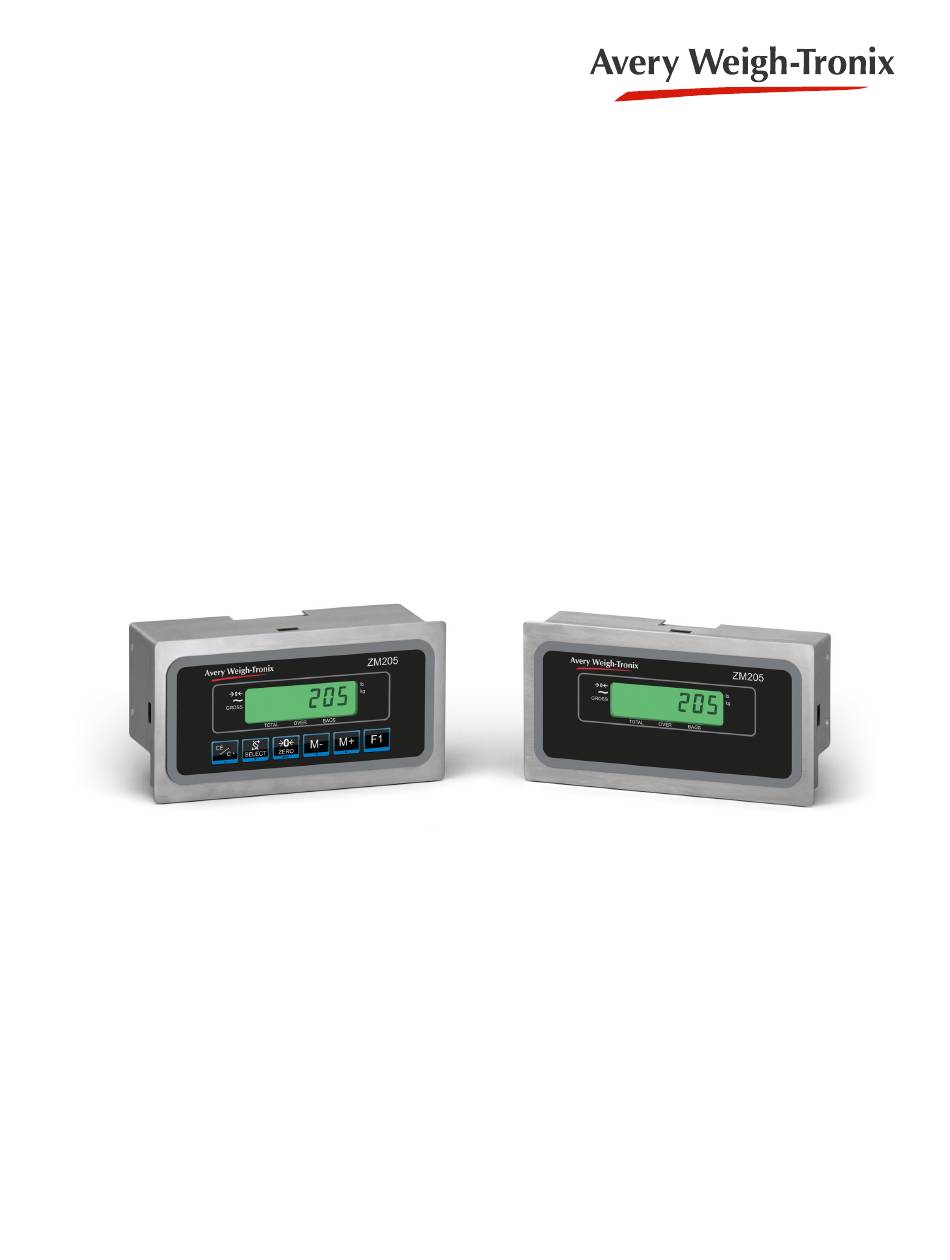

- Page 1 ZM205 Baggage Scale Indicators User Instructions AWT35-501093 Issue AD...
- Page 2 This publication was correct at the time of going to print, however Avery Weigh-Tronix reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service at any time.
-
Page 3: Table Of Contents
Declaration of Conformity ....................9 Chapter 2 Introduction ..........................10 Front panel ........................11 Annunciators ......................12 Powering up the ZM205 ....................12 Numeric entry procedure ....................13 Chapter 3 Indicator Operation ........................ 14 Gross Weighing ....................... 14 Accumulator Weighing ..................... 14 Chapter 4 Error messages ........................ - Page 4 ZM205 Baggage Indicator Service Manual...
-
Page 5: Chapter 1 General Information And Warnings
ELECTRICAL WARNING! THIS IS AN ELECTRICAL WARNING SYMBOL. ELECTRICAL WARNINGS MEAN THAT FAILURE TO FOLLOW SPECIFIC PRACTICES OR PROCEDURES MAY RESULT IN ELECTROCUTION, ARC BURNS, EXPLOSIONS OR OTHER HAZARDS THAT MAY CAUSE INJURY OR DEATH. ZM205 Baggage Scale Indicators User Instructions... -
Page 6: Installation
Application and usage will determine the frequency of calibration required for safe operation. Always isolate the indicator from the power supply before starting any routine maintenance to avoid the possibility of electric shock. ZM205 Baggage Scale Indicators User Instructions... -
Page 7: Cleaning The Machine
To avoid the risk of RSI (Repetitive Strain Injury), place the machine on a surface which is ergonomically satisfactory to the user. Take frequent breaks during prolonged usage. 1.6 Sharp objects Do not use sharp objects such as screwdrivers or long fingernails to operate the keys. ZM205 Baggage Scale Indicators User Instructions... -
Page 8: Fcc And Emc Declarations Of Compliance
Classe A prescrites dans le Règlement sur le brouillage radioélectrique edicté par le ministère des Communications du Canada. European Countries WARNING: This is a Class A product. In a domestic environment, this product may cause radio interference in which the user may be required to take adequate measures. ZM205 Baggage Scale Indicators User Instructions... -
Page 9: Declaration Of Conformity
Declaration of Conformity 1.8 Declaration of Conformity ZM205 Baggage Scale Indicators User Instructions... -
Page 10: Chapter 2 Introduction

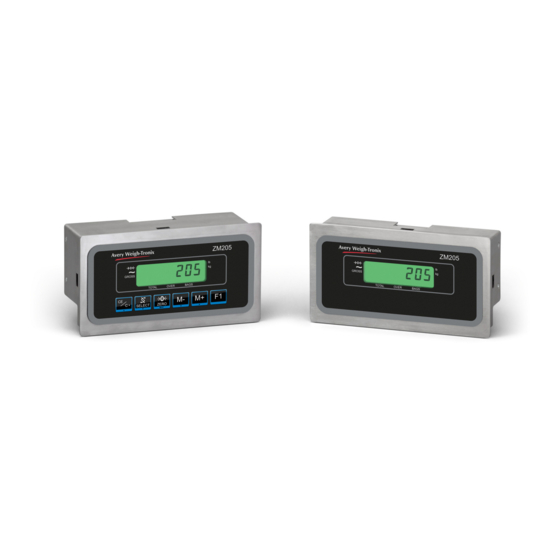

Introduction Introduction The ZM205 baggage scale indicators consist of a main indicator with six keys and digital display and a keyless remote display. The front panels of both indicators are shown in Figure 2.1, The indicator has two serial COM ports and an Ethernet port. -
Page 11: Front Panel
User menu. Press the M+ key to accumulate. Also acts as a Right arrow key in the User menu. Press and hold the F1 key to access the User menu. ZM205 Baggage Scale Indicators User Instructions... -
Page 12: Annunciators
The indicator is always active as long as power is received. Power can be supplied by an AC to DC power converter - (12 to 36 VDC). The remote display is powered via the ethernet connection to the main indicator. ZM205 Baggage Scale Indicators User Instructions... -
Page 13: Numeric Entry Procedure
Press the M-() key to move the entry function one digit to the left. This effectively deletes the current value in that position and allows you to enter a new value in that position. ZM205 Baggage Scale Indicators User Instructions... -
Page 14: Chapter 3 Indicator Operation
Indicator Operation Indicator Operation The ZM205 performs weighing and accumulation. Below are instructions for each. 3.1 Gross Weighing To perform gross weighing, power up the unit and follow these steps: Empty the scale and press ZERO key to zero the display …... - Page 15 Press the M- key to remove the last accumulated weight from the total, if necessary. The annunciator shown below lights momentarily when the key is pressed. The remote or passenger indicator will display the same values shown on the main or operator indicator. ZM205 Baggage Scale Indicators User Instructions...
-
Page 16: Chapter 4 Error Messages
Can’t Entry not in valid range Password entry failed Remote display not receiving data from the master indicator Indicator did not reach a stable zero weight within time window set for automated weighing process. ZM205 Baggage Scale Indicators User Instructions... -
Page 17: Chapter 5 Menus
Menus provide a method for auditing the indicator or supervisor configurations. 5.1 Accessing the menus Follow these steps to access the menus in the ZM205. With the indicator powered up and in normal operating mode, press and hold F1 …... -
Page 18: Exiting The Menus
CE/C = M- = Press and hold F1 key M+ = ZERO = Enter 111 F1 = Escape or & press ZERO User About Audit page page page Figure 5.1 USER level (password 111) menus ZM205 Baggage Scale Indicators User Instructions... -
Page 19: User Menu
Use this to set the time and clock style. Press SELECT … SEt is displayed. Press SELECT … h- x is displayed, with the x flashing. This is a numeric entry screen for the hour value. ZM205 Baggage Scale Indicators User Instructions... -
Page 20: Date
Key in the month value and press ZERO to accept … d- x is displayed, with the x flashing. This is a numeric entry screen for the day value. Key in the day value and press ZERO to accept … SEt is displayed. ZM205 Baggage Scale Indicators User Instructions... -
Page 21: Site Id
If the unit is sealed, no changes can be made to the configuration of the indicator. Press F1 to return to the SEAL display. To exit the menu, see Exiting the menus on page ZM205 Baggage Scale Indicators User Instructions... -
Page 22: About Menu
PArtno is displayed Press SELECT … The 1st half of the bootloader PN is displayed. Press M+ to view the 2nd half. Press ZERO to return to the PArtno display. Press M+ … VErSion is displayed. ZM205 Baggage Scale Indicators User Instructions... -
Page 23: Firm And App
The currently installed option card name is displayed. Press ZERO … tYPE is displayed. Press M+ … VErSion is displayed. This stands for the software version of the currently installed option card. This can be useful service information. ZM205 Baggage Scale Indicators User Instructions... -
Page 24: Enet
Press ZERO … iP Addr is displayed. Press M+ … Subnet is displayed. Repeat this sequence of key presses for the Subnet, Gateway and MAC addresses. When finished press CE/C … EnEt is displayed. ZM205 Baggage Scale Indicators User Instructions... -
Page 25: Dload
Press ZERO to show the 2nd half. Press F1 … dSEriAL is displayed. Press CE/C until About is displayed. To exit the menu, see Exiting the menus on page ZM205 Baggage Scale Indicators User Instructions... -
Page 26: Audit Menu
A number appears showing how many times the indicator has been calibrated. Press ZERO … cALib is displayed. Press CE/C … countEr is displayed. This completes the Audit menu. To exit the menu, see Exiting the menus on page ZM205 Baggage Scale Indicators User Instructions... -
Page 27: Chapter 6 Communications
Communications The ZM205 remote display is connected to the main indicator and powered through the ethernet cable. If the indicator has the PROFIBUS option, there is no operator involvement required to transmit weight. If the indicator has the Relay output option, this is tied to setpoint #3 and can be used to activate any number of peripheral devices. -
Page 28: Chapter 7 Supervisor Menu
Out1 Out2 Out3 value value value None Print Units Select Tare Zero Accu PrntHld Figure 7.1 Supervisor menu for the General Weighing application Follow these steps to set the items in the Supervisor menu. ZM205 Baggage Scale Indicators User Instructions... -
Page 29: Setpoint
If the optional Relay output is installed, it is tied to setpoint 3. The circuit will close when the weight is under the target weight and will be open above the target weight. Press SELECT … The current setting is displayed (oFF or on). ZM205 Baggage Scale Indicators User Instructions... - Page 30 Press M+ to scroll through the choices and when your choice is displayed, press ZERO to accept … in1 is displayed. Press M+ … in2 is displayed. Repeat steps through for in2 and in3. Press CE/C when finished … Edit is displayed. ZM205 Baggage Scale Indicators User Instructions...
- Page 31 Press F1 to abort the print process or press M+ to scroll to the desired port and press ZERO to print the information … Print is displayed after either action. Reset Setpoint Edit Print Reset ZM205 Baggage Scale Indicators User Instructions...
- Page 32 Supervisor menu ZM205 Baggage Scale Indicators User Instructions...
- Page 34 Avery Weigh-Tronix USA 1000 Armstrong Dr. Fairmont MN 56031 USA Tel:507-238-4461 Fax:507-238-4195 Email: usinfo@awtxglobal.com www.averyweigh-tronix.com Avery Weigh-Tronix UK Foundry Lane, Smethwick, West Midlands, England B66 2LP Tel:+44 (0) 8453 66 77 88 Fax:+44 (0)121 224 8183 Email: info@awtxglobal.com www.averyweigh-tronix.com...
