Avery Weigh-Tronix ZT350 User Instructions

Mobile dimensioning unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

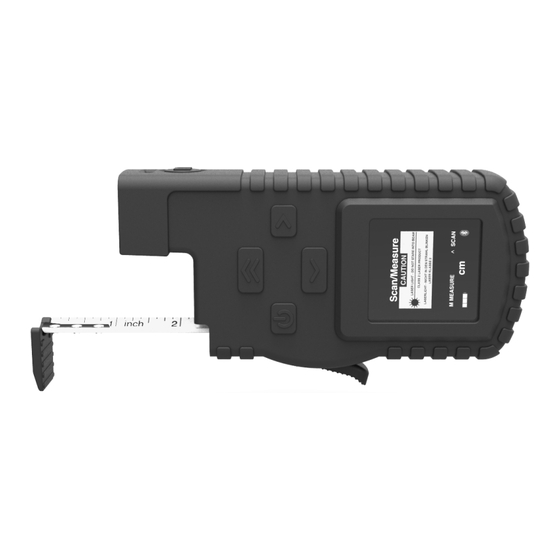

ZT350
Mobile Dimensioning Unit
User Instructions
AWT35-501609
Issue AB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZT350 and is the answer not in the manual?

Questions and answers

Related Manuals for Avery Weigh-Tronix ZT350

Summary of Contents for Avery Weigh-Tronix ZT350

  • Page 1 ZT350 Mobile Dimensioning Unit User Instructions AWT35-501609 Issue AB...
  • Page 2 This publication was correct at the time of going to print, however Avery Weigh-Tronix reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service at any time.

  • Page 3: Table Of Contents

    Installing CDM software .................... 18 ZT350 Application USB Transfer ..................21 ZT350 Application Bluetooth Transfer ................22 ZT350 Application ......................24 ZT350 Application & ZT350 device connection problems ..........24 Chapter 4 Maintenance ........................... 27 Charging the ZT350 ......................27 Battery replacement ......................27 Replacing the tape cassette .....................
  • Page 4 ZT350 Dimensioner User Instructions...

  • Page 5: Chapter 1 General Information And Warnings

    NOTE: This is a Note symbol. Notes give additional and important information, hints and tips that help you to use your product. 1.2 Installation NO USER SERVICEABLE PARTS. REFER TO QUALIFIED SERVICE PERSONNEL FOR SERVICE. 1.3 Safety instructions Caution: Class 2 Laser Product, do not stare into beam. ZT350 Dimensioner User Instructions...

  • Page 6: Disposal Of Electrical And Electronic Equipment

    Electronic Equipment (WEEE) this device may not be disposed of in domestic waste. This also applies to countries outside the EU, per their specific requirements. Please dispose of this product in accordance with local regulations at the collecting point specified for electrical and electronic equipment. ZT350 Dimensioner User Instructions...

  • Page 7: Chapter 2 Introduction

    The ZT350 can be paired via Bluetooth to a scale to record weights, it can scan barcodes and download all the size, weight and barcode information to a PC or other smart device, which can help to optimize assets and costs in parcel handling and shipping situations.

  • Page 8: Buttons

    Power Off/Release Now and hear a series of 5 quick beeps. Release the button and the unit will power off. The ZT350 will automatically power off after 10 minutes of no use. 2.1.3 ZT350 Battery The battery level icon, shown in Figure 2.2, appears in the lower left of the screen.

  • Page 9: Chapter 3 Operation

    ZT350. 3.1 ZT350 Tasks The ZT350 is programmed with a set of five tasks. Tasks are functions that capture the dimensions, barcode and weights to perform the required job function. To access the Tasks menu: Press to power up the ZT350 …...

  • Page 10: Quick Check

    3.1.2 Measure This task allows you to scan a barcode, enter in the number of pieces and the dimensions. The records are stored in the ZT350. You can store 600 records. Follow these steps: If you access the Measure task you will see the following screen: Press to trigger the scan laser.
  • Page 11 Repeat the operation for the W (width) and H (height) dimensions. If at any time the measurement was incorrectly taken you can press recapture the measurement. When complete the measurements are on the screen, as shown below. To save the dimensions and clear the screen press ZT350 Dimensioner User Instructions...

  • Page 12: Weigh

    Use this task to capture the weight from an SMA protocol connected scale. This information plus the scanned barcode and saved dimensions are stored on the device. You must have your ZT350 paired to the scale prior to this task. See BT Pair on page 13 for information on pairing.

  • Page 13: Upload

    Use this task to send the captured records on the device to the ZT350 application. See ZT350 Application on page 3.1.5 BT Pair Use this task to pair the ZT350 with a scale display. You must scan a created ‘pair’ barcode to make the pairing. See ZT350 Bluetooth pairing on page 13 for details.

  • Page 14: Pairing With Pc

    3.2.2 Pairing with PC Ensure the PC has Bluetooth installed and enabled and obtain the MAC Address of the Bluetooth Radio. You need to create and print a barcode to allow the ZT350 to pair with the Bluetooth module. ZT350 Dimensioner User Instructions...
  • Page 15 <Fnc 4>. Example barcode: <Fnc 4>00066649CAAE Free barcode generator can be found at http://www.barcode- generator.org/ Once the barcode has been generated and printed, power on the ZT350. Press & to access the Tasks Menu. Highlight BT Pair and press …...
  • Page 16 The ZT350 will start the pairing process with the Bluetooth module. You will see this display: The ZT350 may not show that it paired until the PC is setup and the application is looking for the device On the PC, depending on the operating system and security settings you may be prompted to allow the ZT350 to pair with the PC.
  • Page 17 ZT350 Bluetooth pairing Once accepted to connect there is no pairing pin. The PC will install the required drivers. Follow prompts as required. Windows 7 Examples: ZT350 Dimensioner User Instructions...

  • Page 18: Zt350 Application

    Operation Windows 10 Example: 3.3 ZT350 Application ZT350 application requires Microsoft Windows 7 32/64 bit or greater to operate. Before connecting the ZT350 device to the PC, please install CDM v2.12.00 WHQL Certified.exe. 3.3.1 Installing CDM software Launch CDM v2.12.00 WHQL Certified.exe.
  • Page 19 ZT350 Application Click on Extract … Click on Next … ZT350 Dimensioner User Instructions...
  • Page 20 When complete click Finish. Turn on the ZT350 device. Plug the USB cable into the ZT350 and then to an available USB port on the The drivers will start installing. Depending on the operating system and PC hardware, the installation may take several minutes.

  • Page 21: Zt350 Application Usb Transfer

    Power on the ZT350 device and press & to get to the Tasks menu. Highlight Upload and press Press On the ZT350 application, the records will transfer over. ZT350 Dimensioner User Instructions...

  • Page 22: Zt350 Application Bluetooth Transfer

    Launch ZT350.exe. Select File, Connect via Bluetooth. The screen will show the ZT350 devices that the PC has paired with. They are identified by Cubetape followed by the serial number. Select the device in the menu and click on Next...
  • Page 23 Tasks menu. Highlight Upload and press On the ZT350 device press SEND On the ZT350 application, the records will transfer over. On the ZT350 device the screen will ask of the records transferred. ZT350 Dimensioner User Instructions...

  • Page 24: Zt350 Application

    File, Settings. 3.7 ZT350 Application & ZT350 device connection problems The ZT350 device will reconfigure its COMM method if it was paired with a Bluetooth. If USB is needed to connect to the ZT350 application, follow the steps below. The device will automatically switch to Bluetooth when you perform the pairing.
  • Page 25 ZT350 Application & ZT350 device connection problems Highlight Config and press Press to get in to the Comm Method menu, The Comm Method menu will display the current configured communication setting. To use USB press the twice to get set the device to USB, once selected, press the to set.
  • Page 26 Operation The device will reconfigure to USB. When complete press to exit the Config menu. Press & to return to the Tasks menu. ZT350 Dimensioner User Instructions...

  • Page 27: Chapter 4 Maintenance

    Maintenance 4.1 Charging the ZT350 The ZT350 is charged when connected to a PC’s USB port. Connect the supplied USB cable between the ZT350 USB connector, shown below, and a PC’s USB port. The device will charge while off. The charging LED will be amber when charging and off when complete.

  • Page 28: Replacing The Tape Cassette

    Dispose of the battery in accordance with local regulations. 4.3 Replacing the tape cassette To replace the tape cassette in the ZT350 Remove the silicone cover. On the back of the unit, remove the cover by pushing down the index triangle in the upper right corner and slide the cover in the direction of the arrow, as shown below.

  • Page 29: Chapter 5 Zt350 Replacement Parts List

    ZT350 Replacement Parts List Consumable Parts AWT05-508846 ZT350 Silicone Cover AWT05-508842 ZT350 Battery AWT05-509261 ZT350 Tape Cassette AWT05-508844 ZT350 Rear Cover ZT350 Dimensioner User Instructions...
  • Page 30 ZT350 Replacement Parts List ZT350 Dimensioner User Instructions...
  • Page 32 Avery Weigh-Tronix USA 1000 Armstrong Dr. Fairmont MN 56031 USA Tel: 507-238-4461 Fax: 507-238-4195 Email: usinfo@awtxglobal.com www.averyweigh-tronix.com Avery Weigh-Tronix UK Foundry Lane, Smethwick, West Midlands, England B66 2LP Tel: +44 (0) 8453 66 77 88 Fax: +44 (0)121 224 8183 Email: info@awtxglobal.com...
