Switch actuator, 1-gang
Switch actuator, 1-gang
Art. no.: 230011SU
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
The device may not be opened or operated outside the technical specifications.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock. Make sure during the installation that there is always sufficient insula-
tion between the mains voltage and the bus. A minimum distance of at least 4 mm must be
maintained between bus conductors and mains voltage cores.
Danger of electric shock on the KNX installation. Do not connect any external voltage to the in-
puts. The device might be damaged, and the SELV potential on the KNX bus line will no longer
be available.
These instructions are an integral part of the product, and must remain with the end customer.
2

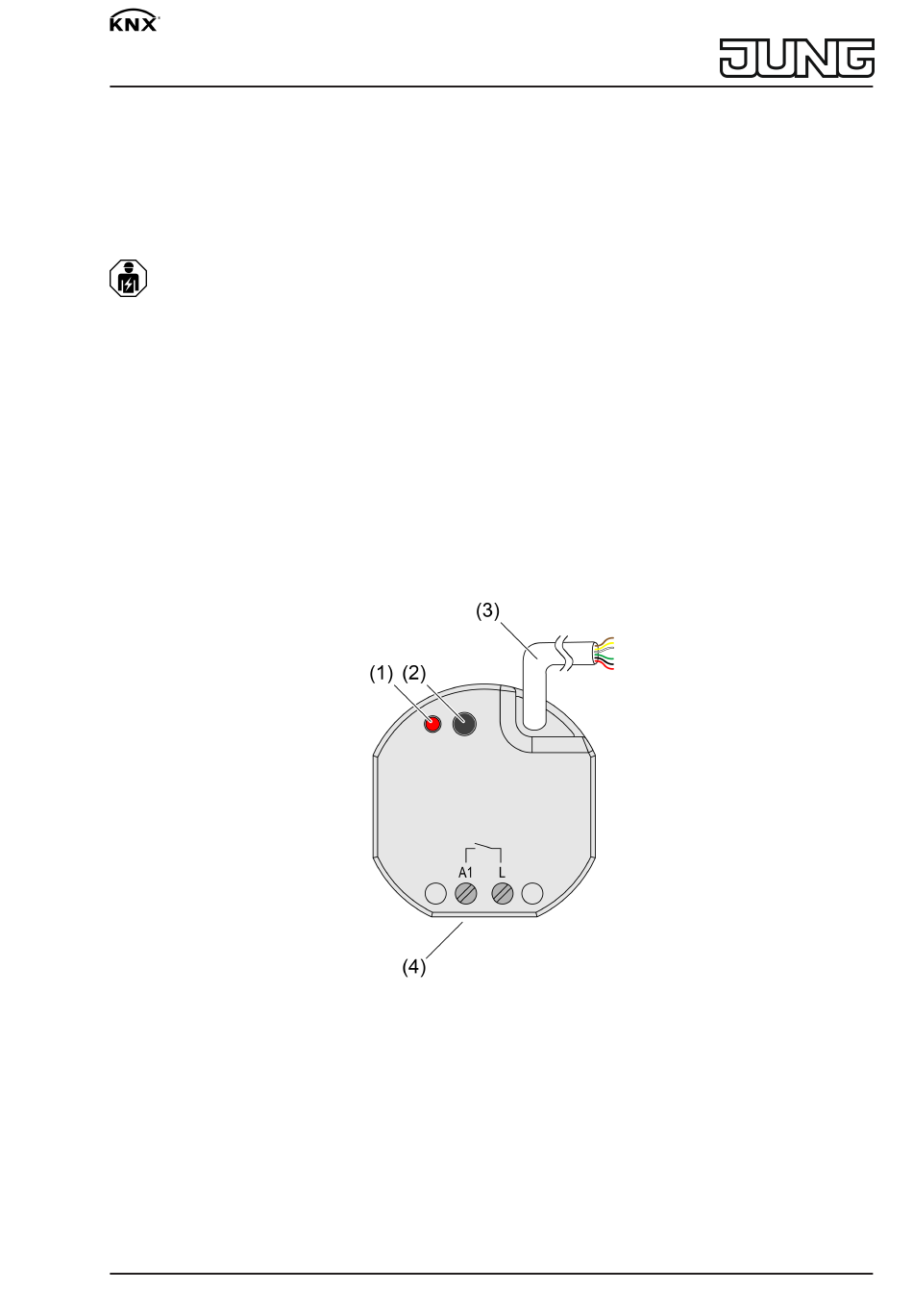

Device components
(1)
Programming LED
(2)
Programming button
(3)
Control cable (KNX connection and extension inputs)
(4)
Load connection (relay output)
82404303
J0082404303
Figure 1: Device components
1 / 8
28.01.2021
Advertisement
Table of Contents
Related Manuals for Jung KNX 230011 SU
Summary of Contents for Jung KNX 230011 SU
- Page 1 Switch actuator, 1-gang Switch actuator, 1-gang Art. no.: 230011SU Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. The device may not be opened or operated outside the technical specifications. Danger of electric shock.
- Page 2 The device can be updated. Firmware can be easily updated with the Jung ETS Service App (additional software). The device is KNX Data Secure capable. KNX Data Secure offers protection against manipula- tion in building automation and can be configured in the ETS project.
- Page 3 Switch actuator, 1-gang – Updateable with Jung ETS Service App Characteristics switch operation – Operation as NO or NC contacts – Feedback function – Logic and restraint function – Central switching functions – Time functions: switch-on delay, switch-off delay, staircase lighting timer with run-on time –...
- Page 4 Switch actuator, 1-gang – Device certificate entered/scanned or added to the ETS project. A high resolution camera should be used to scan the QR code. – Document all passwords and keep them safe. Mounting in suitable appliance box (recommendation: electronic device box with partition). Ob- serve cable routing and spacing (Figure 3)! Figure 3: Mounting example in electronic device box with partition wall, series push-button and NTC temperature sensor...
- Page 5 Switch actuator, 1-gang Figure 5: Connection of load Observe ambient temperature. Ensure adequate cooling. ￭ Connect the device to KNX with the correct polarity. ￭ Connect load as shown in the connection example (Figure 5). ￭ If required, connect potential-free contacts or dew/leakage sensors to inputs 1...3, or NTC temperature sensors to input 3 (Figure 2).
- Page 6 5 s. Restoring the device to factory settings Devices can be reset to factory settings with the Jung ETS Service App. This function uses the firmware contained in the device that was active at the time of delivery (delivery state). Restor- ing the factory settings causes the devices to lose their physical address and configuration.
- Page 7 Switch actuator, 1-gang Connection mode Screw terminals Switching voltage AC 250 V ~ Switching current 16 A Fluorescent lamps 16 AX Switch-on current 200 μs max. 800 A Switch-on current 20 ms max. 165 A Connected load Ohmic load 3000 W Capacitive load max.
- Page 8 Switch actuator, 1-gang Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de 82404303 28.01.2021...
