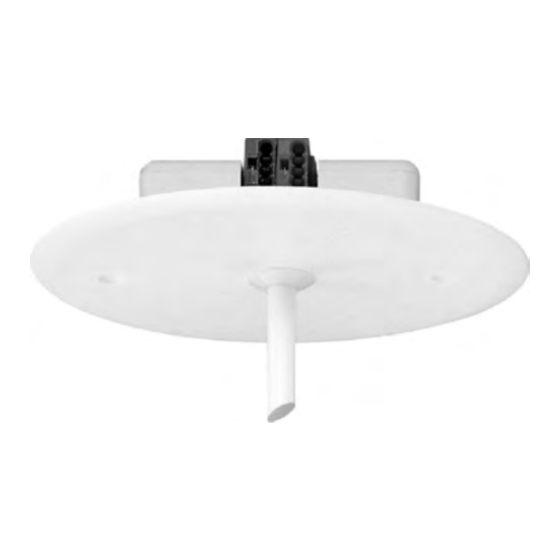

Flush-mounted brightness controller
Flush-mounted brightness controller
Art. No. 2095 LUX
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Do not shorten or grind the rigid fibre-optic rod nor use it for any other purpose.
These instructions are an integral part of the product, and must remain with the end
customer.

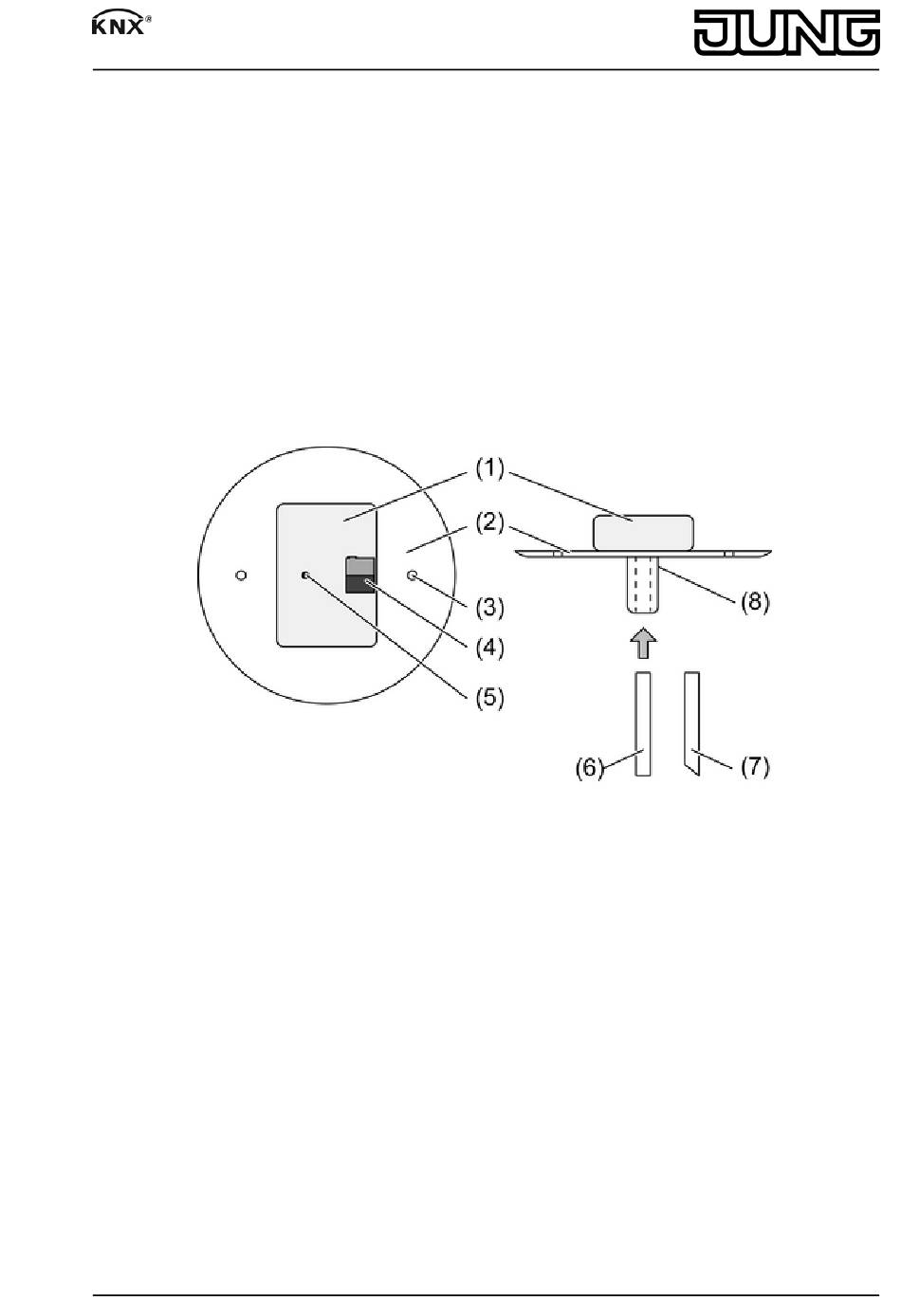

2 Device components
(1) Brightness controller
(2) Lid
(3) Screwholes
(4) Bus connecting terminal
(5) Programming button
(6) Rigid fibre-optic rod with straight incidence
(7) Rigid fibre-optic rod with sloping incidence
(8) Sensor opening
3 Function
Intended use
-
Measurement and control of lighting in interior areas
-
Ceiling installation on fixed ceilings
-
Installation in appliance box to DIN 49073
Product characteristics
-
Continuous constant light control for dimmable lighting
-
Switching two-point control for switched lighting
-
Integrated bus coupling
82573023
J:0082573023
Figure 1: Brightness controller, concealed
1/5
25.09.2012
Advertisement
Table of Contents
Related Manuals for Jung KNX 2095 LUX
Summary of Contents for Jung KNX 2095 LUX
- Page 1 Flush-mounted brightness controller Flush-mounted brightness controller Art. No. 2095 LUX Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
- Page 2 Flush-mounted brightness controller Supply via bus Transmission of measured values, switching and dimming values Setpoint changeable in operation Control can be switched on and off in operation 4 Information for qualified electricians 4.1 Installation and electrical connection DANGER! Electrical shock on contact with live parts in the installation environment. Electrical shocks can be fatal.
- Page 3 Flush-mounted brightness controller Figure 3: Rigid fibre-optic rod with sloping incidence Width of the measuring surface: w = (H – a) · 0.6 Depth of the measuring surface d = (H – a) · 0.56 Connecting and installing a concealed device Use an appliance box to DIN 49073.
- Page 4 Flush-mounted brightness controller Align the rigid fibre-optic rod (7) in such a way that the longer side of the rod points towards the work surface to be measured (figure 3). i Calibrate the controller when using the rigid fibre-optic rod with sloping incidence (7). Calibrate the controller The installation height, lighting situation and degree of reflection influence the controller.
- Page 5 Flush-mounted brightness controller ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04 kundencenter@jung.de www.jung.de Service Center Kupferstr. 17-19 44532 Lünen Germany 82573023 25.09.2012 J:0082573023...
