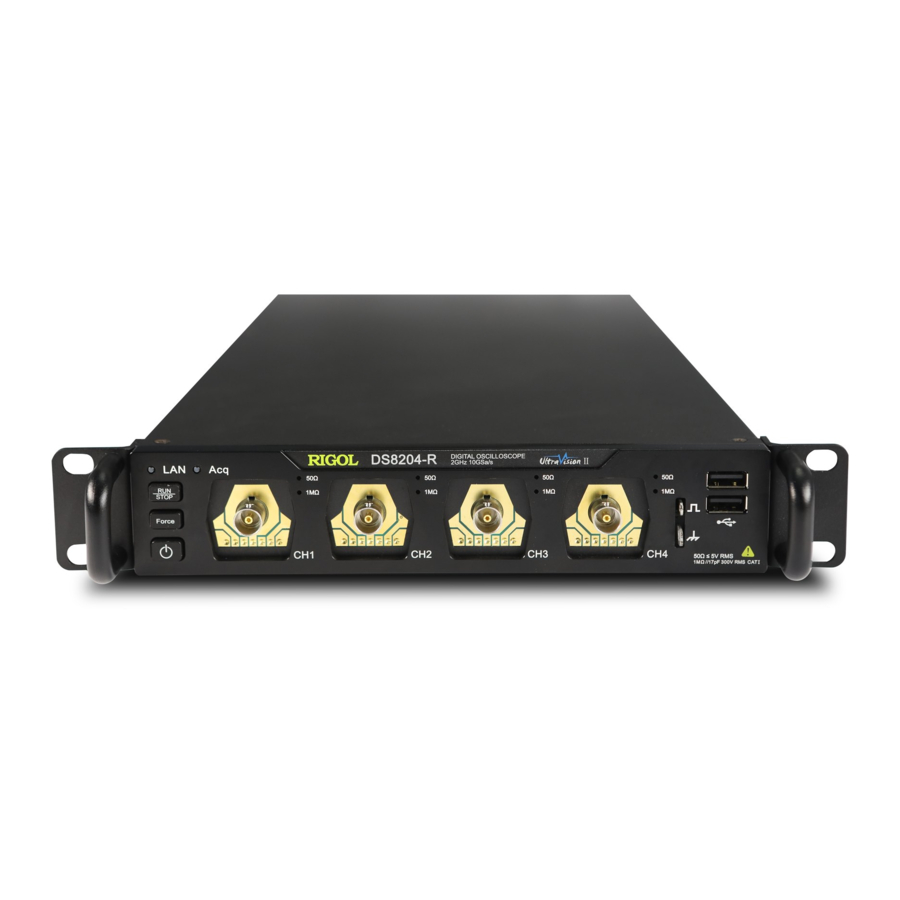

- Page 1 Service Guide DS8000-R Series Digital Oscilloscope Jul. 2020 RIGOL TECHNOLOGIES CO., LTD.
-
Page 3: Guaranty And Declaration
Notices RIGOL products are covered by P.R.C. and foreign patents, issued and pending. ⚫ RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies ⚫ at the company’s sole decision. Information in this publication replaces all previously released materials. -
Page 4: Safety Requirement
Do not touch exposed junctions and components when the unit is powered on. Do Not Operate with Suspected Failures. If you suspect that any damage may occur to the instrument, have it inspected by RIGOL authorized personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel. - Page 5 Use the Battery Properly. Do not expose the battery (if available) to high temperature or fire. Keep it out of the reach of children. Improper change of a battery (lithium battery) may cause an explosion. Use the RIGOL specified battery only.
-
Page 6: Safety Notices And Symbols
RIGOL Safety Notices and Symbols Safety Notices in this Manual: WARNING Indicates a potentially hazardous situation or practice which, if not avoided, will result in serious injury or death. CAUTION Indicates a potentially hazardous situation or practice which, if not avoided, could result in damage to the product or loss of important data. -
Page 7: Document Overview
Manuals of this Product The manuals of this product mainly include Quick Guide, User Guide, Programming Guide, Data Sheet, and etc. For the latest version of this manual, download it from the official website of RIGOL (www.rigol.com). DS8000-R Service Guide... -
Page 8: Table Of Contents
Contents RIGOL Contents Guaranty and Declaration ....................I Safety Requirement ......................II General Safety Summary....................II Safety Notices and Symbols ....................IV Document Overview ......................V Chapter 1 Disassembly and Assembly ................1 Notices to Disassembly and Assembly ................. 1 Exploded View Drawing ..................... -
Page 9: Chapter 1 Disassembly And Assembly
Chapter 1 Disassembly and Assembly RIGOL Chapter 1 Disassembly and Assembly Notices to Disassembly and Assembly Notices: Do not disassemble the instrument unless for working requirement. ⚫ Only authorized personnel are allowed to disassemble the instrument. ⚫ Cut off the power supply before disassembling the instrument. -
Page 10: Exploded View Drawing
This manual mainly introduces the disassembly and assembly methods for the DS8000-R series digital oscilloscope. The exploded view drawing of DS8000-R (installed with the function/arbitrary waveform generator option) is shown in Figure 1-1. - Page 11 Chapter 1 Disassembly and Assembly RIGOL Table 1-1 Replacement Parts List Part No. Qty. Name/Description 2010004774 Front Panel 1020004713 Rubber Keypad 2010004764 Probe Board 2010004767 Handle 1020004722 Metal Front Panel 1020004724 Hanging Ear 1020003428 M4x8 Torx Pan Head Screw 1020004764...
-
Page 12: Disassemble The Metal Cover
Chapter 1 Disassembly and Assembly RIGOL Disassemble the Metal Cover ① ① ① ① Metal Cover ① ① ① ① ① ① ① ① Figure 1-1 Disassemble the Metal Cover Part Description: ① 6 screws (M3x6 torx flat head countersunk screw, used for fastening the metal cover) Disassembly Steps: 1. -
Page 13: Disassemble The Hanging Ear
Chapter 1 Disassembly and Assembly RIGOL Disassemble the Hanging Ear ① ① ① ① ① ① Hanging Ear ① ① Figure 1-3 Disassemble the Hanging Ear Part Description: ① 6 screws (M3x6 torx flat head countersunk screw, used for fastening the two hanging ears); not all screws are indicated in the above figure. -
Page 14: Disassemble The Front Panel Assembly
Chapter 1 Disassembly and Assembly RIGOL Disassemble the Front Panel Assembly Front Panel Assembly ① ① ① ① Figure 1-4 Disassemble the Front Panel Assembly Part Description: ① 2 screws (M3x6 torx flat head countersunk screw, used for fastening the front panel assembly) Disassembly Steps: Use the T10 screwdriver to remove 2 screws (①) that secure the front panel assembly. -
Page 15: Disassemble The Metal Front Panel
Chapter 1 Disassembly and Assembly RIGOL Disassemble the Metal Front Panel ① ① ① ① ① ① Metal Front Panel ① ① Figure 1-5 Disassemble the Metal Front Panel Part Description: ① 4 screws (M3x6 torx pan head combination screw, used for fastening the metal front panel) Disassembly Steps: 1. -
Page 16: Disassemble The Probe Board
Chapter 1 Disassembly and Assembly RIGOL Disassemble the Probe Board ① ① ① ① Probe Board ① ① ① ① ① ① Figure 1-6 Disassemble the Probe Board Part Description: ① 5 screws (M3x6 torx flat head countersunk screw, used for fastening the probe board) Disassembly Steps: Use the T10 screwdriver to remove 5 screws (①) that secure the probe board. -
Page 17: Disassemble The Fan Components
Chapter 1 Disassembly and Assembly RIGOL Disassemble the Fan Components Fan Components ① ① ① ① ① ① ① ① Figure 17 Disassemble the Fan Components Part Description: ① 4 screws (M3x6 torx flat head countersunk screw, used for fastening the fan components) Disassembly Steps: Use the T10 screwdriver to remove 4 screws (①) that secure the fan component. -
Page 18: Disassemble The Main Board
Chapter 1 Disassembly and Assembly RIGOL Disassemble the Main Board ② X 12 ① ① ① ② Main Board ① ① Figure 1-8 Disassemble the Main Board Part Description: ① 3 screws (M3x20 torx pan head combination screw, used for fastening the main board) ②... -
Page 19: Disassemble The Power Supply Board
Chapter 1 Disassembly and Assembly RIGOL Disassemble the Power Supply Board ① ① Isolation Board ① ① ① ① ① ② ② ② Power Supply Board Figure 19 Disassemble the Power Supply Board Part Description: ① 4 screws (M3x6 torx pan head combination screw, used for fastening the isolation board) ②... -
Page 20: Disassemble The Sma Cable
Chapter 1 Disassembly and Assembly RIGOL Disassemble the SMA Cable ① ① ① Figure 1-10 Disassemble the SMA Cable Part Description: ① 3 screws (used for fastening the SMA cable) Disassembly Steps: Use the 8mm hexagon wrench socket to remove 3 screw (①) that secure the SMA cable. -
Page 21: Disassemble The Interface Board
Chapter 1 Disassembly and Assembly RIGOL Disassemble the Interface Board ① Interface Board ① ① ① Figure 1-11 Disassemble the Interface Board Part Description: ① 4 screws (M3x6 torx pan head combination screw, used for fastening the interface board) Disassembly Steps: Use the T10 screwdriver to remove 4 screws (①) that secure the interface board. -
Page 22: Assembly Procedures
Chapter 1 Disassembly and Assembly RIGOL Assembly Procedures The assembly procedures are simply the reversal of the disassembly procedures. Check whether the cables are correctly connected and whether all the screws are installed after completing each assembly procedure. DS8000-R Service Guide... -
Page 23: Chapter 2 Troubleshooting&Maintenance
USB storage device should not exceed 8 GB for this oscilloscope. (4) Restart the instrument and insert the USB storage device to check it. (5) If the USB storage device still cannot work normally, please contact RIGOL. DS8000-R Service Guide... -
Page 24: Maintenance
Keep instrument accessories properly for future use. Warranty RIGOL TECHNOLOGIES CO., LTD. (hereinafter referred to as RIGOL) warrants that the product will be free from defects in materials and workmanship within the warranty period. If a product proves defective within the warranty period, RIGOL guarantees free replacement or repair for the defective product. -
Page 25: Care And Cleaning
Chapter 2 Troubleshooting&Maintenance RIGOL Care and Cleaning Care Do not store or leave the instrument where it may be exposed to direct sunlight for long periods of time. Cleaning Clean the instrument regularly according to its operating conditions. Disconnect the instrument from all power sources.
