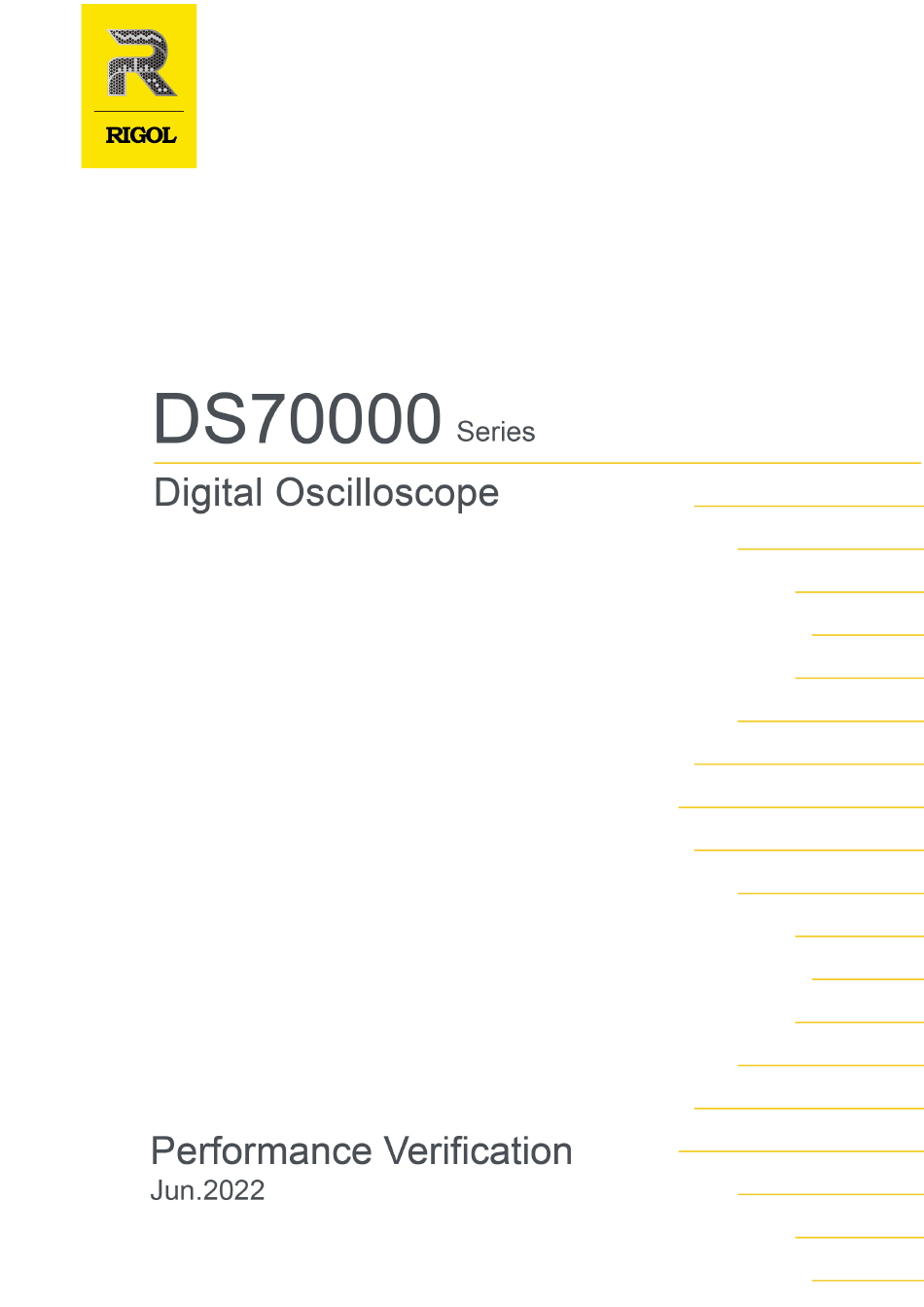

Rigol DS70000 Series Manual

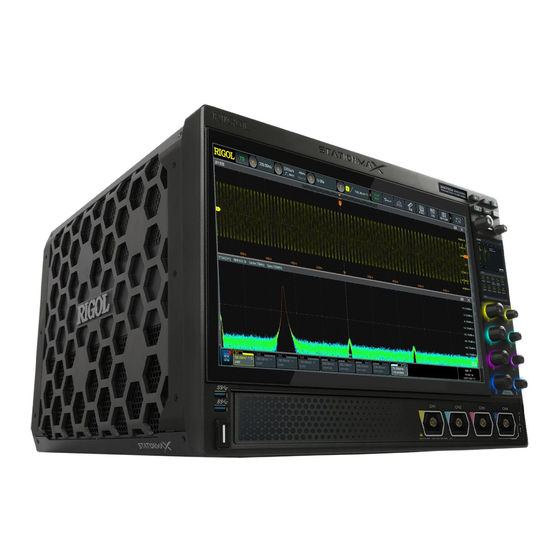

Digital oscilloscope
Hide thumbs Also See for DS70000 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Rigol DS70000 Series

Summary of Contents for Rigol DS70000 Series

  • Page 2 • RIGOL products are covered by P.R.C. and foreign patents, issued and pending. • RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at the company's sole decision. • Information in this publication replaces all previously released materials.

  • Page 3: Table Of Contents

    Test Connection Diagram..................5.3.3 Test Procedures......................5.3.4 Test Record Form....................... Bandwidth Test........................23 5.4.1 Specification........................ 5.4.2 Test Connection Diagram..................5.4.3 Test Procedures......................5.4.4 Test Record Form....................... Timebase Accuracy Test....................25 5.5.1 Specification........................ Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...
  • Page 4 5.5.2 Test Connection Diagram..................5.5.3 Test Procedures......................5.5.4 Test Record Form....................... Random Noise Test......................5.6.1 Test Procedures......................5.6.2 Test Record Form....................... Appendix: Test Record Form....................30 Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...
  • Page 5 List of Tables Table 2.1 Specifications ......................Table 5.1 Test Devices ......................11 Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...
  • Page 6 Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 7: Safety Requirement

    Do Not Insert Objects Into the Air Outlet. Do not insert objects into the air outlet, as doing so may cause damage to the instrument. • Use Proper Fuse. Please use the specified fuses. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 8: Safety Notices And Symbols

    Do Not Operate With Suspected Failures. If you suspect that any damage may occur to the instrument, have it inspected by RIGOL authorized personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel.
  • Page 9 It calls attention to an operation, if not correctly performed, could result in damage to the product or other devices connected to the product. Safety Symbols on the Product: Hazardous Safety Warning Protective Earth Chassis Ground Test Ground Voltage Terminal Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 10: Specification

    Specification This chapter lists the technical specifications of the DS70000 series oscilloscope. The maximum sample rate of DS70000 series digital oscilloscope is 20 GSa/s, the highest bandwidth is 5 GHz. RIGOL's brand new UltraVison III technical platform guarantees the specifications to reach the advanced level in the industry, with the capture rate up to 1,000,000 wfms/s, 2 Gpts memory depth, and 8 bit ~ 16 bit adjustable resolution.
  • Page 11 Specification Overview of the DS70000 Series Technical Specifications Sampling Mode Real-time sampling half-channel : 20 GSa/s Max. Analog Channel Sample Rate full-channel : 10 GSa/s Standard: 500 Mpts Max. Memory Depth Option: 2 Gpts (half-channel ), 1 Gpts (full- channel >1,000,000 wfms/s...

  • Page 12: Document Overview

    RIGOL DS70000 series digital oscilloscope. For the operation methods mentioned in the test procedures, refer to User Guide of this product. http:// For the latest version of this manual, download it from the official website of RIGOL ( www.rigol.com Publication Number...
  • Page 13 Document Overview Content Conventions in this Manual DS70000 series includes the following models. Unless otherwise specified, this manual takes DS70504 as an example to illustrate the methods for the performance verification of DS70000 series. Model Max. Analog Bandwidth No. of Analog Channels...

  • Page 14: Overview

    Make sure that the oscilloscope has been warmed up or operating for more than 30 minutes before the self-calibration. 1. Disconnect all the input channels. 2. In "Utility" menu, click or tap SelfCal, the following self-calibration interface is shown below. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 15: Test Result Record

    It is recommended that users photocopy the test record form before each test and record the test results in the copy so that the form can be used repeatedly. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 16: Specifications

    Overview Specifications The specification of each test item is provided in this manual. For other technical DS70000 DataSheet (available to download them from RIGOL parameters, refer to http://www.rigol.com website: All the specifications are only valid when the oscilloscope has been warmed up for more than 30 minutes.

  • Page 17: Performance Verification Test

    Performance Verification Test This chapter takes DS70504 as an example to illustrate the performance verification test methods and procedures of DS70000 series digital oscilloscope. The recommended test devices in this manual is shown below. You can also use other devices that fulfill the "Specification" in the following table.

  • Page 18: Test Connection Diagram

    In the Vertical system menu, click or tap 1 MΩ under Impedance to set the input impedance of CH1 to 1 MΩ. c. Set the vertical scale of CH1 to 100 mV/div. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 19: Test Record Form

    0.99 MΩ to 1.01 MΩ 100 mV/div 0.99 MΩ to 1.01 MΩ 500 mV/div 0.99 MΩ to 1.01 MΩ 100 mV/div 0.99 MΩ to 1.01 MΩ 500 mV/div 0.99 MΩ to 1.01 MΩ Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 20: Dc Gain Accuracy Test

    Test Connection Diagram DS70000 Fluke 9500B 5.2.3 Test Procedures WARNING Before connecting, disconnecting, or moving the test hookup, disable the output of the signal generator to avoid causing the dangerous voltage. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...
  • Page 21 8. Calculate the relative error of this vertical scale: |(Vavg1 - Vavg2) - (Vout1 - Vout2)|/ Full Scale × 100%. 9. Keep the other settings of the oscilloscope unchanged. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...
  • Page 22 Then click or tap the input field for the Averages menu item to set it by using the pop-up numeric keypad. Set the number of averages to 32. h. Adjust the trigger level to avoid that the signals are being triggered by mistake. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 23: Test Record Form

    50 mV/div ≤2% 100 mV/div ≤2% 200 mV/div ≤2% 500 mV/div ≤2% 1 V/div ≤2% 2 V/div ≤2% 5 V/div ≤2% 10 V/div ≤2% 1 mV/div ≤2% 2 mV/div ≤2% Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...
  • Page 24 2 mV/div ≤2% 5 mV/div ≤2% 10 mV/div ≤2% 20 mV/div ≤2% 50 mV/div ≤2% 100 mV/div ≤2% 200 mV/div ≤2% 500 mV/div ≤2% 1 V/div ≤2% 1 mV/div ≤2% Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...
  • Page 25 [1]: The calculation formula is |(Vavg1 - Vavg2) - (Vout1 - Vout2)|/Full Scale × 100%; wherein, Vout1 and Vout2 are 3 × the current vertical scale and -3 × the current vertical scale respectively. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 26: Dc Offset Accuracy Test

    Click or tap the channel status label at the bottom of the screen. The "Vertical" system menu is displayed. Click or tap to select 50 Ω for Impedance to set the input impedance of CH1 to 50 Ω. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 27: Test Record Form

    20 MHz BW 200 mV/div -22.000 mV 22.000 mV 200 mV/div -30 V 29.528 V 30.472 V 500 mV/div 100 V -101.05 V -98.948 V 500 mV/div -52.000 mV 52.000 mV Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...
  • Page 28 -982.90 mV 1 mV/div -2.1000 mV 2.1000 mV CH4, 1 MΩ, 20 MHz BW 1 mV/div -1 V 982.90 mV 1.0171 V 200 mV/div 30 V -30.472 V -29.528 V Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 29: Bandwidth Test

    DS70304 3 GHz (50 Ω) -3 dB, all-channel mode DS70504 5 GHz (50 Ω) -3 dB, half-channel 5.4.2 Test Connection Diagram DS70000 DSG3000B Power Meter Power Sensor Power Splitter Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 30: Test Procedures

    Read the value from the "result" list and record the measurement result as Vout 6. Record the power meter reading P , and convert the power to V according to 1 MHz the following formula. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 31: Test Record Form

    [2]: Clock Drift. [3]: For the number of years that the instrument has been used, please calculate according to the date in the verification certificate provided when the instrument leaves factory. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 32: Test Connection Diagram

    Click or tap the horizontal menu at the top of the screen. Then the Horizontal system menu is displayed. In this menu, you can set the horizontal timebase to 1 ns/div. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 33: Test Record Form

    [4]: Calculation Result = Test Result ΔT/1 ms. Random Noise Test This test checks the random noise for each channel at the normal sampling mode. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 34: Test Procedures

    Test Record Form Max. Vertical Scale Bandwidth Test Result DS70304 DS70504 50 Ω 1 mV/div 20 MHz 400 μV 500 μV 2 mV/div 20 MHz 400 μV 500 μV Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...
  • Page 35 500 mV/div Full BW 30.0 mV 1 V/div Full BW 60.0 mV 2 V/div Full BW 110 mV 5 V/div Full BW 300 mV 10 V/div Full BW 600 mV Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...

  • Page 36: Appendix: Test Record Form

    Appendix: Test Record Form Appendix: Test Record Form RIGOL DS70000 Series Digital Oscilloscope Performance Verification Test Record Form Model: ________________ Tested by: ________________ Test Date: ________________ Impedance Test Record Form: 1 MΩ Input Impedance Channel Vertical Scale Test Result Limit...
  • Page 37 2 V/div ≤2% 5 V/div ≤2% 10 V/div ≤2% 1 mV/div ≤2% 2 mV/div ≤2% 5 mV/div ≤2% 10 mV/div ≤2% 20 mV/div ≤2% 50 mV/div ≤2% 100 mV/div ≤2% Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...
  • Page 38 500 mV/div ≤2% 1 V/div ≤2% 1 mV/div ≤2% 2 mV/div ≤2% 5 mV/div ≤2% 10 mV/div ≤2% 20 mV/div ≤2% 50 mV/div ≤2% 100 mV/div ≤2% 200 mV/div ≤2% Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...
  • Page 39 -982.90 mV 1 mV/div -2.1000 mV 2.1000 mV CH2, 1 MΩ, 20 MHz BW 1 mV/div -1 V 982.90 mV 1.0171 V 200 mV/div 30 V -30.472 V -29.528 V Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...
  • Page 40 982.90 mV 1.0171 V CH4, 50 Ω, 20 MHz BW 200 mV/div -4.0820 V -3.9180 V 200 mV/div -22.000 mV 22.000 mV 200 mV/div -4 V 3.9180 V 4.0820 V Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...
  • Page 41 2 mV/div 20 MHz 500 μV 5 mV/div Full BW 600 μV 10 mV/div Full BW 900 μV 20 mV/div Full BW 2.00 mV 50 mV/div Full BW 4.00 mV Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...
  • Page 42 500 mV/div Full BW 30.0 mV 1 V/div Full BW 60.0 mV 2 V/div Full BW 110 mV 5 V/div Full BW 300 mV 10 V/div Full BW 600 mV Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DS70000 Performance Verification...
