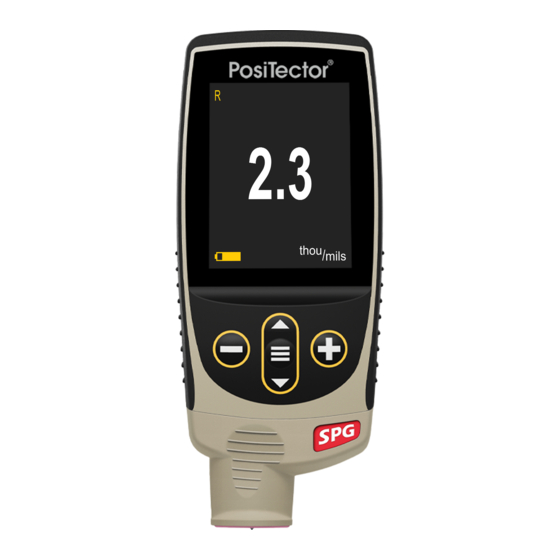

DeFelsko PosiTector SPG Reference

Surface profile gage
Hide thumbs Also See for PosiTector SPG:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for DeFelsko PosiTector SPG

Summary of Contents for DeFelsko PosiTector SPG

  • Page 2 For an overview of the use and operation of your instrument, refer to its included Instruction Manual or download a digital PDF at www.defelsko.com/manuals. Update your gage to ensure your PosiTector includes these latest help references.

  • Page 3: Table Of Contents

    Contents Memory ........................Open ........................View ........................Display ........................Annotate ........................ Print ........................Smart Batch ......................New Batch ......................Close ........................Delete ........................Batch Summary ..................... Statistics ........................Statistics ........................ Clear ........................HiLo Alarm ......................Zero ..........................Setup ........................... Set Clock ....................... Reset ........................
  • Page 4 WiFi ........................Setup Options ....................AP Channel ....................Gage Name ....................Server Enable .................... IP Settings ....................AP Passphrase ..................WiFi Reset ....................WiFi Stream ..................... Auto Sync .net ....................Access Point ....................Enabled ......................Networks ......................WiFi Information ....................Sync .net Now ....................

  • Page 5: Memory

    Memory The PosiTector SPG Advanced has internal memory storage for recording measurement data. Stored measurements can be reviewed on-screen or accessed via computers, tablets and smart phones. Measurements are date and time-stamped. Store up to 250,000 readings in up to 1,000 batches.

  • Page 6: Print

    To cancel printing, simultaneously press and hold the (-) and (+) buttons. Smart Batch Each PosiTector SPG measurement represents the distance between the highest local peaks in the profile and the particular valley into which the tip has projected. Since each measurement represents the distance between the peaks and a specific valley, multiple measurements are required to accurately read the surface profile.

  • Page 7: Close

    Shortcut: When a batch is open, press (+) to create a new batch NOTE: Remove the last reading from the current open batch by pressing (-). Close Stops the recording process, closes the current batch, and removes batch information from the display. Delete Removes a batch or sub-batch completely from memory.

  • Page 8: Statistics

    Statistics Menu option for configuring Statistics and HiLo Alarm modes. Statistics When selected, a statistical summary will appear on the display. Remove the last measurement by pressing the (-) button. Press (+) to clear statistics. Clear Clears all on-screen Statistics and HiLo tabulations. HiLo Alarm Allows the Gage to visibly and audibly alert the user when measurements exceed user-specified limits.

  • Page 9: Zero

    Zero The PosiTector SPG has only one adjustment point at zero. The zero point can be set using one of two methods. Both methods are found under the Zero menu option. Glass Plate Zero Zeroing on the included glass plate is the preferred method for best accuracy: 1.

  • Page 10: Setup

    - M11.1.0 is the end of EDT. ‘M’ specifies that the date will follow a ‘Month.Week.Day’ format. 11.1.0 is the eleventh month, first week, first day (Sunday) Detailed NTP instructions available at: www.defelsko.com/NTP Reset Restores factory settings and returns the Gage to a known condition. The following occurs: All batches, stored datasets, batch names and screen captures are erased.

  • Page 11: Units

    The Zero adjustment is returned to the factory setting. Menu settings are returned to the following: Memory = OFF Statistics Mode = OFF HiLo Alarm = OFF Auto Dim = ON Bluetooth & Stream = OFF Bluetooth BLE Keyboard = OFF WiFi &...

  • Page 12: Battery Type

    Battery Type Selects the type of batteries used in the Gage from a choice of Alkaline, Lithium or NiMH (nickel-metal hydride rechargeable). The battery state indicator symbol is calibrated for the selected battery type. No damage will occur if the battery type used in the Gage does not match the selected battery type.

  • Page 13: Od Mode

    OD mode is the default operating mode. When enabled, OD is displayed in the top icon bar of the Gage screen. In Normal mode, the probe operates like the PosiTector SPG, taking a reading immediately after the probe tip touches the test surface. Normal mode is recommended for measuring on flat surfaces.

  • Page 14: Connect

    SPC data collection software. See www.defelsko.com/update Pairing The instrument and receiving device must be paired before readings can be transmitted. For pairing instructions, see www.defelsko.com/bluetooth Info Lists information about your current Bluetooth connection, including the currently paired device and MAC address.

  • Page 15: Sync.net Now

    NOTE: While connected, power is supplied through the included USB-C cable. The batteries are not used and the body will not automatically power down. Sync.net Now When selected, the Gage immediately synchronizes stored measurement data to PosiSoft.net (USB connection required to a computer running PosiSoft Desktop). Alternatively, select Auto Sync.net from within the USB connect menu to automatically synchronize upon connection to a PC.

  • Page 16: Html Report

    USB keyboard. Each reading is typed, followed by a carriage return (enter). This provides a simple way to capture readings as they are taken without any special software, drivers or complex setup. For more information on USB Keyboard mode visit: www.defelsko.com/connect Page 14...

  • Page 17: Wifi

    WiFi Allows connection to your local wireless network or mobile hot spot. Ideal for using your network’s internet connection for synchronizing stored measurements with PosiSoft.net. See www.defelsko.com/wifi Setup Options Setup WiFi configuration options for the Gage. AP Channel The access point channel corresponding to a frequency range. (Default Channel: 6) For most users the default channel will not have to be altered.

  • Page 18: Ap Passphrase

    Internet of Things device and is ideal for users with an existing WiFi network and a desire to stream live readings to a central application or database. For more information on WiFi Streaming visit: www.defelsko.com/connect Auto Sync .net When enabled, the Gage automatically attempts to synchronize stored measurement data with PosiSoft.net upon power-up (internet connected WiFi network required).

  • Page 19: Enabled

    Securing your Access Point To ensure the PosiTector is only accessible to authorized devices, it is important that you enter a passphrase (password) for the Access Point. The default Passphrase is password. In the Connect > WiFi > Setup menu, select AP Passphrase to modify the default passphrase.

  • Page 20: Bluetooth Smart

    (enter). This provides a simple way to capture readings as they are taken without any special software, drivers or complex setup. For more information on BLE Keyboard mode visit: www.defelsko.com/connect Smart Probes Displays available PosiTector DPM-L and PosiTector CMM-IS Smart Probes within range of the PosiTector gage.

  • Page 21: Enabled

    Determines if a software update is available for your Gage. To perform an update the Gage must be connected to an internet connected computer running PosiSoft Desktop, or a WiFi network. See www.defelsko.com/update WARNING: The Gage will perform a Hard Reset after an update. All stored measurements will be erased from memory.

  • Page 22: Help

    Press (+) or touch the (i) icon to display the help. Update your gage to ensure that you have the latest on-gage help information. A formatted PDF containing all on-gage help items is available at www.defelsko.com/help. Menu Operation To access the Menu, power-up the gage, then press the center navigation button. Either the keypad or touch screen can be used to navigate the menu.

  • Page 23: Power Off

    Power Off To conserve battery life, the gage will automatically go to sleep after 5 minutes of inactivity and enter Sleep Mode. While in Sleep Mode the gage powers up significantly faster— convenient when moving between parts or locations. The gage will completely power off after 4 hours of inactivity.
