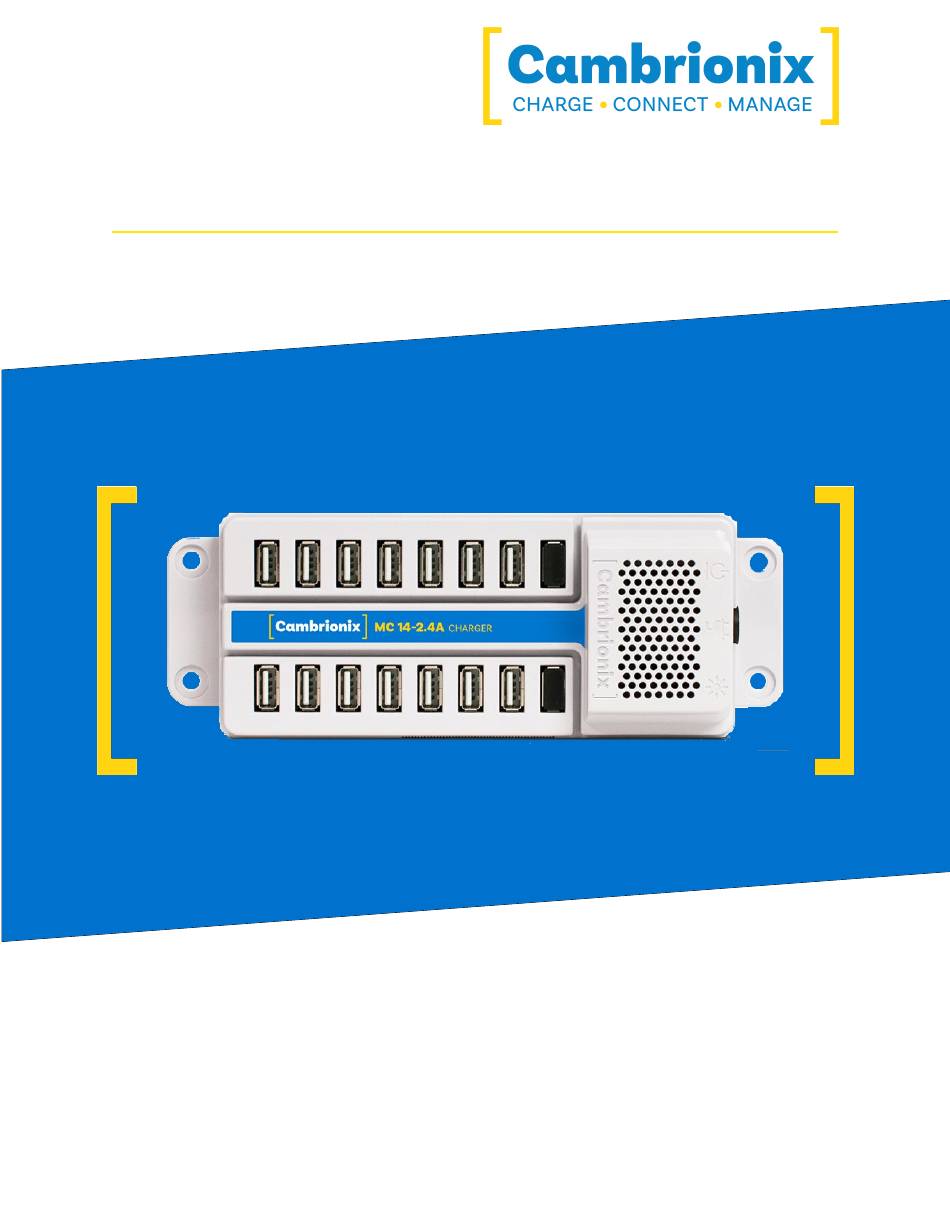

- Page 1 User Manual MC14-2.4A...
-
Page 2: Table Of Contents
1.Table of Contents 1.Table of Contents 2.Your MC14-2.4A at a glance 3.Safety 3.1.Signal word panel 3.2.Safety alert symbol 3.3.Pictograms 3.4.Product modification 3.5.Power supply 3.6.Storage and Installation 4.Getting Started 4.1.What's Included 4.2.Connecting to the mains 4.3.Registration 4.4.Help and Support 4.5.Cleaning your MC14-2.4A 5.Product Specifications... -
Page 3: Your Mc14-2.4A At A Glance
2.Your MC14-2.4A at a glance The MC14-2.4A has been designed primarily for desktop use, being highly compact and quiet. It provides 12W of charging power to each of its 14 USB 2.0 Type-A ports, allowing mobile devices to be charged quickly, safely and reliably. All ports can be controlled using Cambrionix software to allow charging and/or data transfer while monitoring important port and device information. -
Page 4: Safety
Indicates a potentially hazardous situation which, if not avoided, may result in moderate or minor (reversible) injury. Indicates a potentially hazardous situation which, if not avoided, may result in damage to the product and/ or its functions or of a property in its proximity. MC14-2.4A Page 3 of 12... -
Page 5: Safety Alert Symbol
Mandatory regulation 3.4.Product modification Cambrionix products are designed and manufactured to meet the requirements of UK and International safety regulations. Modifications to the product could affect safety and render the product non-compliant to relevant safety standards, which could result in injury or damage to the product. -
Page 6: Power Supply
Do not short circuit the Power Supply Unit (PSU) supplied with your product Do not disconnect the power cord while the product is being used Do not bend or pull the power cord with excessive force MC14-2.4A Page 5 of 12... -
Page 7: Storage And Installation
Do not place the power cord near heat sources Connect the plug to an earthed socket Damage to your Cambrionix product may occur Operate the product only in an environment where the ambient temperature is inside the operating temperature range... -
Page 8: Getting Started
4.Getting Started 4.1.What's Included 2m Mains power cable (Country specified on order) MC14-2.4A Hub Power Supply Unit 4.2.Connecting to the mains Connect the Power Supply Unit (PSU) to the hub using the 4-pin DIN plug. Connect the power cable to the PSU. Making sure you adhere to local safety regulations, connect the power cable to the 100 –... -
Page 9: Cleaning Your Mc14-2.4A
If there is a dirt/ spillage over a ventilation slot, external data/ power connector or product aperture, please remove power from the unit without touching the liquid and contact Cambrionix immediately Ensure that the product is switched off and the power cord is removed from the product. -
Page 10: Product Specifications
Output Power (Total) 174.72W 5.3.Physical specifications Input Connectors Output Connectors 14 USB 2.0 Type-A Maximum Data Speed Ambient Operating Temperature range 0-35 °C Relative humidity 5% to 95% non-condensing Dimensions 198.3 x 73 x 40mm Weight 1.6kg MC14-2.4A Page 9 of 12... -
Page 11: Power Supply
5.4.Power Supply Input Voltage 100-240VAC 4A @ 115VAC Input Current (Typical) 2A @ 230VAC Input Frequency 50-60Hz Input Connector Output Voltage Output Current Output Power (Max) 180W Output Connector 4-pin DIN MC14-2.4A Page 10 of 12... -
Page 12: Disposal
Directive, is marked as being put on the market after August 12, 2005, and should not be disposed of as unsorted municipal waste. Please utilize your local WEEE collection facilities in the disposition of this product and otherwise observe all applicable requirements. MC14-2.4A Page 11 of 12... -
Page 13: Compliance And Standards
7.Compliance and Standards CB Certificate CE Tested and marked FCC Part 15 Tested and marked RoHS Compliant Independently safety tested by the Underwriters Laboratory (UL) under file #E346549 Complies with EN60950 safety requirements for IT equipment MC14-2.4A Page 12 of 12... - Page 14 Cambrionix Ltd The Maurice Wilkes Building Cowley Road Cambridge CB4 0DS United Kingdom +44 (0) 1223 755 520 enquiries@cambrionix.com www.cambrionix.com 08/2021 © 2021 Cambrionix Ltd. All rights reserved.
