- Page 1 User Manual PP15C...
-
Page 2: Table Of Contents
1.Table of Contents 1.Table of Contents 2.Your PP15C at a glance 3.Safety 3.1.Signal word panel 3.2.Safety alert symbol 3.3.Pictograms 3.4.Product modification 3.5.Power supply 3.6.Storage and Installation 4.Getting Started 4.1.What's Included 4.2.Connecting to the mains 4.3.Connecting to Host 4.4.Previous versions of Windows 4.5.Registration 4.6.Help and Support 5.Using your PP15C... -
Page 3: Your Pp15C At A Glance

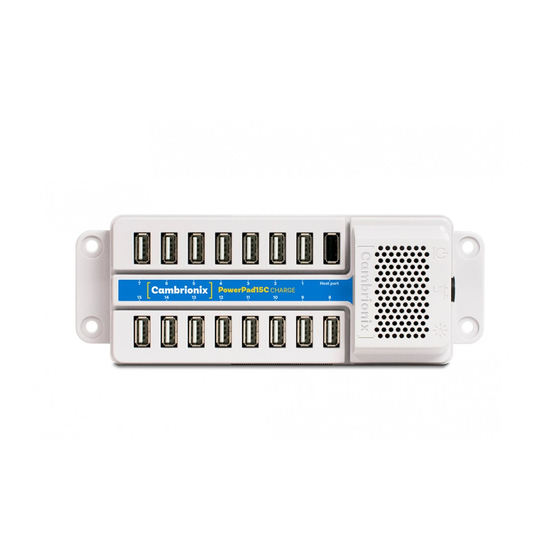

10W of charging power to each of its 15 x USB 2.0 Type-A ports, allowing mobile devices to be charged quickly, safely and reliably. All ports can be controlled using Cambrionix software to allow charging and/or data transfer while monitoring important port and device information. -
Page 4: Safety
3.Safety This user manual is for informational purposes only, it contains information for start-up and operation of this product. Note: the contents and the product described are subject to change without notice. To avoid injuries and damage observe the safety instructions of the user manual. -
Page 5: Safety Alert Symbol
Mandatory regulation 3.4.Product modification Cambrionix products are designed and manufactured to meet the requirements of UK and International safety regulations. Modifications to the product could affect safety and render the product non-compliant to relevant safety standards, which could result in injury or damage to the product. -
Page 6: Power Supply
CAUTION Do not modify the product in any way Do not dismantle the product CAUTION Fire or personal injury may occur Do not obstruct air vents on the product Do not cover the product in combustible material CAUTION Damage to your product may occur Do not bend or compress any part of the product 3.5.Power supply This section describes safety precautions you must follow when using the power supply. -
Page 7: Storage And Installation
Do not place the power cord near heat sources Connect the plug to an earthed socket CAUTION Damage to your Cambrionix product may occur Operate the product only in an environment where the ambient temperature is inside the operating temperature range... -
Page 8: Getting Started
If you are using a version of Microsoft Windows™ prior to Microsoft Windows 10™ you will need to install Cambrionix CDC drivers for enabling the full functionality of the hub. To install the drivers please detach the hub from the PC before executing the downloaded installer. Once the installer has completed the installation of the drivers you may attach your hub. - Page 9 You can raise a support ticket for more in depth support here https://cambrionix.atlassian.net/servicedesk/customer/portals You can also download any of our manuals and keep up to date at the link here www.cambrionix.com/product-user-manuals PP15C Page 8 of 16...
-
Page 10: Using Your Pp15C
In this section you can find information information on how to use your hub in a charge only or a charge and sync application. You can also find information on managing your hub and changing port modes, connecting multiple hubs to one host and using Cambrionix Software. 5.1.Using without connecting to a host computer When the Hub is switched on and is not connected to a local host computer it is automatically configured to charge devices using its intelligent charging algorithm. -
Page 11: Cleaning Your Pp15C
If there is a dirt/ spillage over a ventilation slot, external data/ power connector or product aperture, please remove power from the unit without touching the liquid and contact Cambrionix immediately Ensure that the product is switched off and the power cord is removed from the product. -
Page 12: Product Specifications
6.Product Specifications 6.1.Input Power Requirements Input Voltage 12Vdc Input Current Input Connection 4-pin DIN 6.2.Output Power Output Voltage 5.0V +/-5% Output Current (Max per Port) 2.1A Output Power (Max per Port) Output Power (Total) 163.8W 6.3.Physical specifications Input Connectors USB 2.0 Type-A Output Connectors 15 x USB 2.0 Type-A Maximum Data Speed... -
Page 13: Power Supply
6.5.Power Supply Input Voltage 100-240VAC 4A @ 115VAC Input Current (Typical) 2A @ 230VAC Input Frequency 50-60Hz Input Connector Output Voltage Output Current Output Power (Max) 180W Output Connector 4-pin DIN Dimensions 210 x 85 x 46mm PP15C Page 12 of 16... -
Page 14: Disposal
7.Disposal Disposal of Old Electrical & Electrical Equipment (Applicable in the European Union and other European countries with separate collection systems) This product is subject to Directive 2012/19/EU of the European Parliament and the Council of the European Union on the waste electrical and electronic equipment (WEEE), and in jurisdictions adopting that Directive, is marked as being put on the market after August 12, 2005, and should not be disposed of as unsorted... -
Page 15: Returns And Damaged Products
If you have not purchased the Product(s) direct from Cambrionix please contact the vendor the item was originally purchased from for their returns process. Once you have notified Cambrionix of your return, Cambrionix will arrange for collection of the Product(s) or provide instructions and details for you to return the Product direct. -
Page 16: Compliance And Standards
9.Compliance and Standards CB Certificate CE Tested and marked FCC Part 15 Tested and marked Complies with EN60950 safety requirements for IT equipment Housed within a UL94-VO specification fire enclosure RoHS Compliant Independently safety tested by the Underwriters Laboratory (UL) under file #E346549 PP15C Page 15 of 16... - Page 17 This manual may make reference to trademarks, registered trademarks, and other protected names and /or symbols of third-party companies not related in any way to Cambrionix. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by Cambrionix, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
- Page 18 Cambrionix Ltd The Maurice Wilkes Building Cowley Road Cambridge CB4 0DS United Kingdom +44 (0) 1223 755 520 enquiries@cambrionix.com www.cambrionix.com 10/2021 © 2021 Cambrionix Ltd. All rights reserved.
