- Page 1 Manual de usuario traducido SP54 2023-01 © 2022 Cambrionix Ltd. Todos los derechos reservados.
-
Page 2: Table Of Contents
1. Table of Contents 1. Table of Contents 2. Your SP54 at a glance 2.1. Key Features 3. Safety 3.1. Signal word panel 3.2. Safety alert symbol 3.3. Pictograms 3.4. Product modification 3.5. Power supply 3.6. Storage and Installation 4. Getting Started 4.1. - Page 3 9. Returns and Damaged Products 9.1. What do I do if my order arrives and something the product is faulty or is physically damaged? 9.2. What happens after I have requested a Return? 10. Compliance and Standards SP54 Página 2 de 28...
-

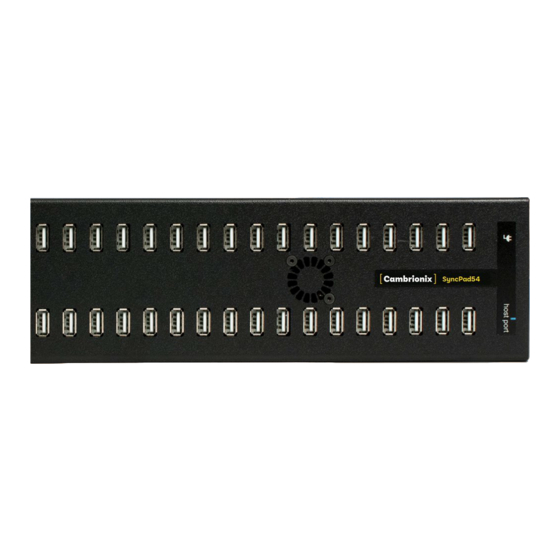

Page 4: Your Sp54 At A Glance
(up to 0,5 A). The firmware can be updated to enable new charging profiles, ensuring the SP54 can charge the latest devices. It is ready to charge out-of-the-box and sync devices when attached to a host computer. -
Page 5: Safety
This manual has been arranged to follow IEC/ICEE 82079-1 standard. This is to facilitate the easier understanding and location of information relating to the SP54. Any errors or omissions can be reported using our support ticket system (seeHelp and Support). -
Page 6: Safety Alert Symbol
Mandatory regulation 3.4. Product modification Cambrionix products are designed and manufactured to meet the requirements of UK and International safety regulations. Modifications to the product could affect safety and render the product non-compliant with relevant safety standards, resulting in injury or damage to the product. -
Page 7: Power Supply
Do not disconnect the power cord while the product is being used. Do not bend or pull the power cord with excessive force. Do not use a power supply that exceeds the power supply specifications within this manual SP54 Página 6 de 28... -
Page 8: Storage And Installation
Do not place the power cord near heat sources. Connect the plug to an earthed socket. PRECAUCIÓN Damage to your Cambrionix product may occur Operate the product only in an environment where the ambient temperature is inside the operating temperature range. -
Page 9: Getting Started
As well as a guide for product safety-related information. The SP54 is intended to be used in an indoor static environment in which the environment falls within the tested specifications to provide charge, sync and management functionality. Please see the physical specifications section of this manual for information on the environment specifications. -
Page 10: Conexión A La Red Eléctrica
0,5 A while transferring data. 4.5. Charging Your SP54 will allow your device to charge at the maximum rate possible up to 0,5 A. The way that charging takes place is the SP54 will provide the device with a capability to charge and the devices USB charging controller will determine the maximum amount of charge it wants to draw down. -
Page 11: Cables
Device Information Plate which is either on the underside or back of the unit. Providing serial and Purchase order numbers, can help identify the product in question faster, and speed up the process. SP54 Página 10 de 28... -
Page 12: Using Your Sp54
5.2.1 Connecting the Hub to a host computer Connect the SP54 to your host system using a USB 2.0 tipo B cable. Using an incorrect host cable may result in the hub and all subsequent ports not being recognised by your host. -
Page 13: Data Transfer
5.2.4 Protocolo e interfaz de comunicación The SP54 appears as a virtual serial port (also called a UART or VCP). En Microsoft Windows™, el sistema aparecerá como un puerto COM, el número de puerto COM se puede encontrar en el administrador de dispositivos. - Page 14 La configuración de comunicaciones predeterminada debe establecerse en 115200 baudios, 8 bits de datos, sin paridad y un bit de parada. Esto a veces se denomina "115200,8,N,1". No se utiliza control de flujo. Se debe seleccionar la emulación de terminal ANSI SP54 Página 13 de 28...
-
Page 15: Cleaning Your Sp54
If there is a dirt/ spillage over a ventilation slot, external data/ power connector or product aperture, please remove power from the unit without touching the liquid and contact Cambrionix immediately Asegúrese de que el producto esté apagado y de que el cable de alimentación se haya desconectado del producto. -
Page 16: Product Specifications
6. Product Specifications The SP54 is manufactured in the UK 6.1. Requisitos de la alimentación entrante Voltaje de entrada 12 V CC Corriente de entrada 13 A Conexión de entrada DIN de 4 pines 6.2. Potencia de salida Voltaje de salida 5,0 ... -
Page 17: Consumibles Y Realización De Pedidos
6.5. Consumibles y realización de pedidos Below is a list of any Consumable products you may require for your SP54 including the cables you will require to connect devices to the hub. Cables 54 x USB 2.0 tipo A If you require any spare parts, such as the power cables or USB 2.0 tipo B cable, these can be... - Page 18 Alfiler Función *-V está conectado a tierra de entrada de CA. SP54 Página 17 de 28...
-
Page 19: Troubleshooting
7. Troubleshooting If you experience any issues with your SP54; please try the following solutions, if your issue is not addressed in this section, please get in touch with your local vendor or Cambrionix. 7.1. Initial troubleshooting tips Some tips and information to check first. -
Page 20: Device Connection
0000000000000000 Conexión de dispositivo inestable Some devices can have unstable connections with your host system through the SP54. We have only observed this behaviour in a very few amount of devices, disabling CDP this has resolved all issues and the connections are stable. -
Page 21: Hub Connection Issues
Una forma mucho más sencilla es usar cables USB2 en lugar de cables USB3, limitando la conexión a USB2. 7.5. Hub connection issues If you have issues with the hub and connecting to your host system, please see below troubleshooting solutions. SP54 Página 20 de 28... -
Page 22: No Gui
El concentrador no se conecta al host If you see that the SP54 is not connecting to the host system, one of the issues may be caused by the USB drivers on your host system not being up to date. Es una buena práctica asegurarse de que tiene instalados los últimos controladores y actualizaciones en su sistema host, que... -
Page 23: Software Troubleshooting
Some users have noted that the API can cause a high level of CPU usage. This can sometimes be linked to the API recorder service. If you are finding this and you are not using it then we would reccommend to uninstall it from your system entirely. SP54 Página 22 de 28... -
Page 24: Disposal
August 12, 2005, and should not be disposed of as unsorted municipal waste. Please utilize your local WEEE collection facilities in the disposition of this product and otherwise observe all applicable requirements. Cambrionix PRN (Producer Registration Number) For the UK is "WEE/BH191TT". SP54 Página 23 de 28... -
Page 25: Returns And Damaged Products
9.2. What happens after I have requested a Return? If you have not purchased the Product(s) direct from Cambrionix please contact the vendor the item was originally purchased from for their returns process. -
Page 26: Compliance And Standards
Probado y marcado según la Parte 15 de la FCC Alojado en una envolvente a prueba de incendios de la especificación UL94-VO Cumplimiento de RoHS Probado independientemente por Underwriters Laboratory (UL) con el número de expediente #E346549 SP54 Página 25 de 28... - Page 27 This manual may make reference to trademarks, registered trademarks, and other protected names and /or symbols of third-party companies not related in any way to Cambrionix. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by Cambrionix, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
- Page 28 Cambrionix Patents Application Title Link Grant Number Number Syncing and Charging GB2489429 1105081.2 2489429 Port CAMBRIONIX UK00002646615 2646615 00002646615 CAMBRIONIX VERY UK00002646617 2646617 00002646617 INTELLIGENT... MOD IT DS GB2591233 6089600 6089600 MOD IT eSearch 007918669 007918669 MOD IT 90079186690001 007918669-0001 90079186690001...
- Page 29 MOD IT STACK 29/735,475 D936,000 MOD IT DS LUGS 6089601 6089601 6089601 MOD IT MM 6089602 6089602 6089602 MOD IT DS LUGS 6089603 6089603 6089603 MOD IT STACK 6089604 6089604 6089604 MOD IT 6089605 6089605 6089605 SP54 Página 28 de 28...
- Page 30 The Maurice Wilkes Building Cowley Road Cambridge CB4 0DS Reino Unido +44 (0) 1223 755 520 enquiries@cambrionix.com www.cambrionix.com Cambrionix Ltd es una empresa registrada en Inglaterra y Gales con el número de empresa 06210854 2023-01 © 2022 Cambrionix Ltd. Todos los derechos reservados.
