- Page 1 User Manual PDS-C4 2023-01 © 2022 Cambrionix Ltd. Todos los derechos reservados.
-
Page 2: Table Of Contents
1. Table of Contents 1. Table of Contents 2. Your PDS-C4 at a glance 2.1. Key Features 3. Safety 3.1. Signal word panel 3.2. Safety alert symbol 3.3. Pictograms 3.4. Product modification 3.5. Power supply 3.6. Storage and Installation 4. Getting Started 4.1. - Page 3 5.5.2 LiveViewer 5.5.3 Cambrionix API 5.5.4 Updating Software 5.5.5 Removing Software 5.5.6 Command Line Instructions (CLI) 5.6. Cleaning your PDS-C4 6. Product Specifications 6.1. Requisitos de la alimentación entrante 6.2. Potencia de salida 6.3. Valores de riel de bandera de error 6.4.
-

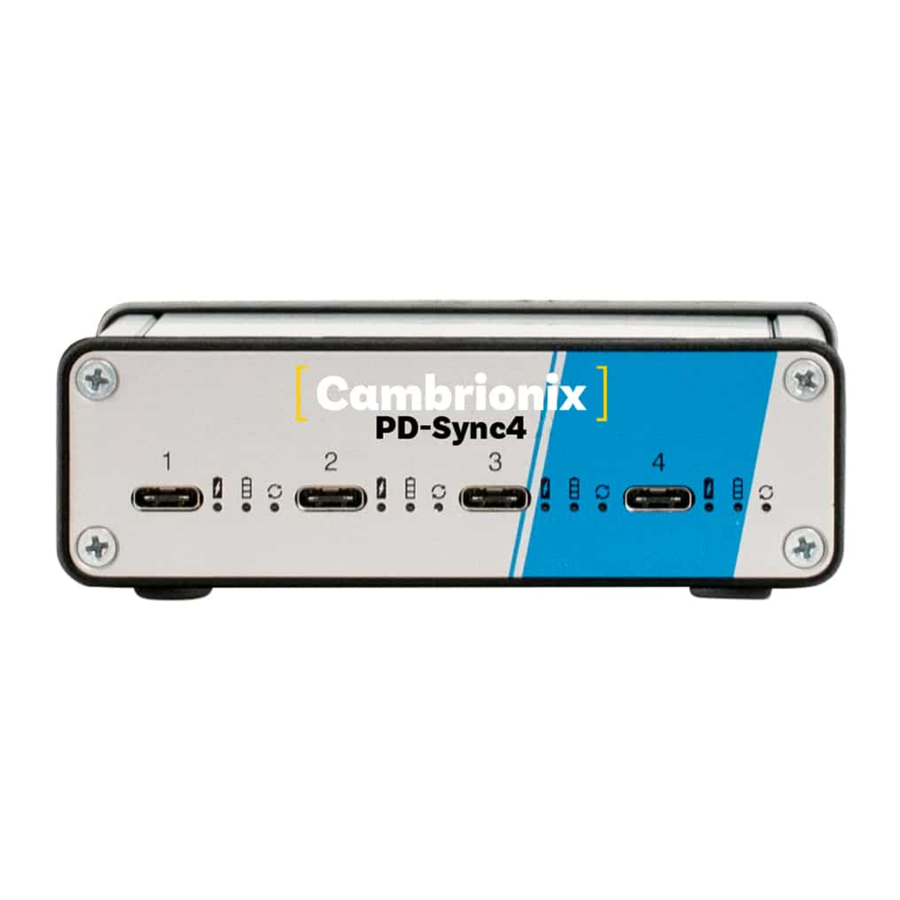

Page 4: Your Pds-C4 At A Glance
(up to 3 A). The firmware can be updated to enable new charging profiles, ensuring the PDS-C4 can charge the latest devices. It is ready to charge out-of-the-box and sync devices when attached to a host computer. -
Page 5: Safety
This manual has been arranged to follow IEC/ICEE 82079-1 standard. This is to facilitate the easier understanding and location of information relating to the PDS-C4. Any errors or omissions can be reported using our support ticket system (seeHelp and Support). -
Page 6: Safety Alert Symbol
Mandatory regulation 3.4. Product modification Cambrionix products are designed and manufactured to meet the requirements of UK and International safety regulations. Modifications to the product could affect safety and render the product non-compliant with relevant safety standards, resulting in injury or damage to the product. -
Page 7: Power Supply
Do not disconnect the power cord while the product is being used. Do not bend or pull the power cord with excessive force. Do not use a power supply that exceeds the power supply specifications within this manual PDS-C4 Página 6 de 38... -
Page 8: Storage And Installation
Do not place the power cord near heat sources. Connect the plug to an earthed socket. PRECAUCIÓN Damage to your Cambrionix product may occur Operate the product only in an environment where the ambient temperature is inside the operating temperature range. -
Page 9: Getting Started
This manual provides a reference for end-users installing for the first time and using their hub after that. As well as a guide for product safety-related information. The PDS-C4 is intended to be used in an indoor static environment in which the environment falls within the tested specifications to provide charge, sync and management functionality. -
Page 10: Conexión A La Red Eléctrica
3 A while transferring data. 4.5. Charging Your PDS-C4 will allow your device to charge at the maximum rate possible up to 3 A. The way that charging takes place is the PDS-C4 will provide the device with a capability to charge and the devices USB charging controller will determine the maximum amount of charge it wants to draw down. -
Page 11: Cables
Device Information Plate which is either on the underside or back of the unit. Providing serial and Purchase order numbers, can help identify the product in question faster, and speed up the process. PDS-C4 Página 10 de 38... -
Page 12: Using Your Pds-C4
Cambrionix Software. 5.0.1 LED Configuration Your PDS-C4 has inbuilt LEDs used to show the state of the ports or devices. These LEDs can be configured to support your use case; this can be controlled either by using the API to send commands directly or through separate software. -
Page 13: Using When Connected To Host
5.2.1 Connecting the Hub to a host computer Connect the PDS-C4 to your host system using a USB 2.0 tipo C cable. Using an incorrect host cable may result in the hub and all subsequent ports not being recognised by your host. -
Page 14: Protocolo E Interfaz De Comunicación
5.2.4 Protocolo e interfaz de comunicación The PDS-C4 appears as a virtual serial port (also called a UART or VCP). En Microsoft Windows™, el sistema aparecerá como un puerto COM, el número de puerto COM se puede encontrar en el administrador de dispositivos. -
Page 15: Scalability
"puerto de host" del concentrador. El puerto host del siguiente concentrador en la conexión en cadena se conecta a cualquiera de los puertos USB descendentes del primer concentrador. Para añadir más hubs, se procede de la misma manera. PDS-C4 Página 14 de 38... -
Page 16: Manage Ports & Your Pds-C4
5.4. Manage Ports & Your PDS-C4 Each port on your PDS-C4 can be managed either individually, or all together. You can turn the ports off and on, change the port mode, or change the charging profiles. This can be done either through LiveViewer, or by connecting to the hub via the API. -
Page 17: Firmware
To install the firmware onto the hub click the hub/ hubs connected that you want to update, then select the firmware version you want to upgrade to. Once selected press the update button at the top and the update will commence. PDS-C4 Página 16 de 38... - Page 18 Firmware versions and hardware We advise not to change the firmware version on any new products you receive as this may cause compatibility issues and stop your PDS-C4 from functioning. PRECAUCIÓN Your PDS-C4 may not function correctly Do not install old firmware onto a new product PRECAUCIÓN...
-
Page 19: Software
The PDS-C4 uses string commands to communicate with the host system. These can be sent via the virtual serial port of the PDS-C4 directly, or the API can be used to provide other protocols that send translated string commands. LiveViewer can use the API to interact with the devices through a user-friendly application. -
Page 20: Liveviewer
Dentro de su concentrador, hay algunas configuraciones controlables específicas llamadas "configuraciones de RAM no volátiles", que se conocen como configuraciones de NVRAM. These control a variety of different settings on your PDS-C4. Puede navegar a la configuración de NVRAM abriendo LiveViewer y seleccionando el concentrador al que desea conectarse. -
Page 21: Cambrionix Api
5.5.3 Cambrionix API Cambrionix API allows you to monitor and control each port in more detail and to integrate these functions into your own workflow processes. The API comprises a daemon (which is a program running in the background) that can be downloaded from www.cambrionix.com/products/api... -
Page 22: Removing Software
5.5.5 Removing Software If you wish to uninstall the software (Cambrionix LiveViewer and Cambrionix API) from your host system, the following steps can do this. One thing to note when removing the API is to check you have also removed the recorder service which will install alongside it. -
Page 23: Command Line Instructions (Cli)
Two example commands can be seen below, you can use these commands to check hub information and health. Command Action system Show hardware and firmware information health Show voltages, temperatures, errors and boot flag PDS-C4 Página 22 de 38... -
Page 24: Cleaning Your Pds-C4
If there is a dirt/ spillage over a ventilation slot, external data/ power connector or product aperture, please remove power from the unit without touching the liquid and contact Cambrionix immediately Asegúrese de que el producto esté apagado y de que el cable de alimentación se haya desconectado del producto. -
Page 25: Product Specifications
6. Product Specifications The PDS-C4 is manufactured in the UK 6.1. Requisitos de la alimentación entrante Voltaje de entrada 24 V CC Corriente de entrada 15 A Conexión de entrada DIN de 4 pines 6.2. Potencia de salida Voltaje de salida Máximo 21 ... -
Page 26: Consumibles Y Realización De Pedidos
Esto es puramente cosmético y no afectará el producto. 6.5. Consumibles y realización de pedidos Below is a list of any Consumable products you may require for your PDS-C4 including the cables you will require to connect devices to the hub. -
Page 27: Power Supply
6.6. Power Supply Input Voltage 100-250Vdc 4A @ 115VAC Input Current 2A @ 230VAC Input Frequency 50-60Hz Input Connector Output Voltage Output Current 0 - 9.2A PDS-C4 Página 26 de 38... - Page 28 Output Power (Max) 221W Output Connector 4-pin DIN Dimensions 210 x 85 x 46mm Alfiler Función *-V está conectado a tierra de entrada de CA. PDS-C4 Página 27 de 38...
-
Page 29: Troubleshooting
7. Troubleshooting If you experience any issues with your PDS-C4; please try the following solutions, if your issue is not addressed in this section, please get in touch with your local vendor or Cambrionix. 7.1. Initial troubleshooting tips Some tips and information to check first. -
Page 30: Device Connection
0000000000000000 Conexión de dispositivo inestable Some devices can have unstable connections with your host system through the PDS-C4. We have only observed this behaviour in a very few amount of devices, disabling CDP this has resolved all issues and the connections are stable. -
Page 31: Hub Connection Issues
Una forma mucho más sencilla es usar cables USB2 en lugar de cables USB3, limitando la conexión a USB2. 7.5. Hub connection issues If you have issues with the hub and connecting to your host system, please see below troubleshooting solutions. PDS-C4 Página 30 de 38... -
Page 32: No Gui
El concentrador no se conecta al host If you see that the PDS-C4 is not connecting to the host system, one of the issues may be caused by the USB drivers on your host system not being up to date. Es una buena práctica asegurarse de que tiene instalados los últimos controladores y actualizaciones en su sistema... -
Page 33: Software Troubleshooting
Some users have noted that the API can cause a high level of CPU usage. This can sometimes be linked to the API recorder service. If you are finding this and you are not using it then we would reccommend to uninstall it from your system entirely. PDS-C4 Página 32 de 38... -
Page 34: Disposal
August 12, 2005, and should not be disposed of as unsorted municipal waste. Please utilize your local WEEE collection facilities in the disposition of this product and otherwise observe all applicable requirements. Cambrionix PRN (Producer Registration Number) For the UK is "WEE/BH191TT". PDS-C4 Página 33 de 38... -
Page 35: Returns And Damaged Products
9.2. What happens after I have requested a Return? If you have not purchased the Product(s) direct from Cambrionix please contact the vendor the item was originally purchased from for their returns process. -
Page 36: Compliance And Standards
Probado y marcado según la Parte 15 de la FCC Alojado en una envolvente a prueba de incendios de la especificación UL94-VO Cumplimiento de RoHS Probado independientemente por Underwriters Laboratory (UL) con el número de expediente #E346549 PDS-C4 Página 35 de 38... - Page 37 This manual may make reference to trademarks, registered trademarks, and other protected names and /or symbols of third-party companies not related in any way to Cambrionix. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by Cambrionix, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
- Page 38 Cambrionix Patents Application Title Link Grant Number Number Syncing and Charging GB2489429 1105081.2 2489429 Port CAMBRIONIX UK00002646615 2646615 00002646615 CAMBRIONIX VERY UK00002646617 2646617 00002646617 INTELLIGENT... MOD IT DS GB2591233 6089600 6089600 MOD IT eSearch 007918669 007918669 MOD IT 90079186690001 007918669-0001 90079186690001...
- Page 39 MOD IT STACK 29/735,475 D936,000 MOD IT DS LUGS 6089601 6089601 6089601 MOD IT MM 6089602 6089602 6089602 MOD IT DS LUGS 6089603 6089603 6089603 MOD IT STACK 6089604 6089604 6089604 MOD IT 6089605 6089605 6089605 PDS-C4 Página 38 de 38...
- Page 40 The Maurice Wilkes Building Cowley Road Cambridge CB4 0DS Reino Unido +44 (0) 1223 755 520 enquiries@cambrionix.com www.cambrionix.com Cambrionix Ltd es una empresa registrada en Inglaterra y Gales con el número de empresa 06210854 2023-01 © 2022 Cambrionix Ltd. Todos los derechos reservados.
