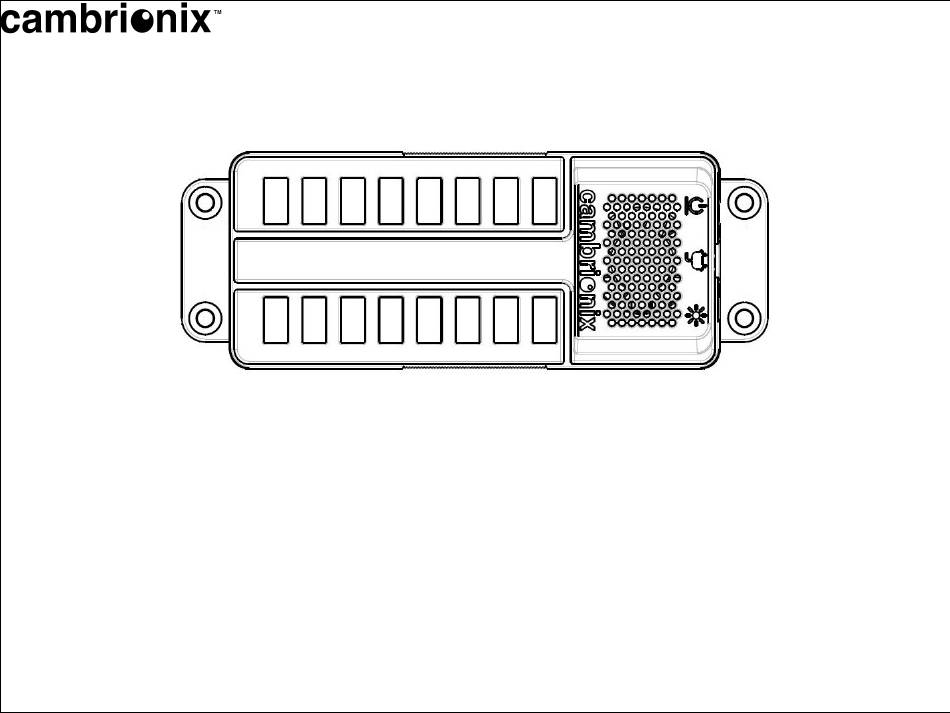

- Page 1 PowerPad16 User guide V1...
- Page 2 Introduction The PowerPad16 is a device used to charge 16 USB devices simultaneously. It's a compact and safe device suited to home and office use. The PowerPad16 can be supplied either with or without a power supply. Important note: If in any doubt about how to operate or install the PowerPad16 please contact Cambrionix Ltd at support@cambrionix.com...
-
Page 3: Table Of Contents
Contents 1. Operating 2. Installation 3. Safety messages 4. Electrical specifications 5. Warranty 6. Contact details... -
Page 4: Operating
1. Operating • Connect a suitable power cord between the power supply (PSU) and receptacle (socket outlet). The PSU is shown below. Power supply for PowerPad16 PSU output connector. Connect a suitably rated cord between here and your receptacle (socket... - Page 5 1. Operating • Connect the output of the power supply to the PowerPad16. Correctly fitted power connector.
- Page 6 1. Operating • Switch the PowerPad16 'on' using the on/off switch as shown below. The red 'power LED' will illuminate when the PowerPad16 is switched 'on'. ON/OFF switch. Move this slide switch towards the power connector to switch the PowerPad16 'ON'.
- Page 7 1. Operating • Connect your USB devices to the PowerPad16 using suitable USB cables. These are normally supplied by the USB device manufacturer. USB device cable connected to one of the 16 USB ports on PowerPad16.
-
Page 8: Installation
2. Installation • The PowerPad16 can either be used on a desk/bench or mounted to a surface using the mounting holes on either end of the device. Under all mounting conditions it is essential to avoid covering/blocking the ventilation holes indicated below. - Page 9 2. Installation • To mount the PowerPad16 to a surface you will require four M5 screws (suitable for the material you are mounting the PowerPad16 to). You will also require a suitable tool for driving your chosen screws. Do not use countersunk head screws as these will damage the plastic flanges, we recommend a 'pan head' screw type.
- Page 10 2. Installation • The PowerPad16 dimensions and mounting hole locations are shown below.
- Page 11 • The PowerPad16 can be mounted in a number of vertical orientations as shown below. The PowerPad16 can also be mounted horizontally to a flat surface such as a desk. Care should always be taken to ensure that the ventilation holes are not blocked or obstructed.
-
Page 12: Safety Messages
• Do not attempt to modify or open the PowerPad16 enclosure. • The plug on the power supply cord is considered the 'disconnect device' and as such the receptacle (socket outlet) should be located near the PowerPad16 and shall be easily accessible should the power supply need to be isolated from the 100-240VAC input for whatever reason. - Page 13 4. Electrical specifications of PSU if supplied. Parameter Specification Notes Part number FSP180-AHAN1 Manufactured by FSP Group Inc. PSU input voltage 100-240 VAC 50-60Hz PSU input current 2.5A PSU output voltage 12 VDC PSU output current Input connector Output connector 4pin DIN On the end of a 90cm cable.
-
Page 14: Electrical Specifications
4. Electrical specifications of PowerPad16. Parameter Specification Notes Model number CBRX1055 Manufactured by Cambrionix Ltd. Input voltage 12VDC Input current Port output voltage 5.2VDC PSU output current 2.1A Power in connector 4pin DIN See product label for pinout. Output connectors 'USB A' Female There are 16 output ports. -
Page 15: Warranty
5. Warranty • The PowerPad16 is provided with a 12 month RTB warranty from date of purchase. • Details of our standard warranty terms are available at www.cambrionix.com... -
Page 16: Contact Details
6. Contact details • Address: Cambrionix Ltd, St Johns Innovation Centre, Cowley Road, Cambridge, CB4 0WS, • Telephone: +44 (0) 1223 422 249 • Email: support@cambrionix.com • Web: www.cambrionix.com...
