  • Page 1 Manual de usuario traducido PP15C 2023-01 © 2022 Cambrionix Ltd. Todos los derechos reservados.

  • Page 2: Table Of Contents

    1. Table of Contents 1. Table of Contents 2. Your PP15C at a glance 3. Safety 3.1. Signal word panel 3.2. Safety alert symbol 3.3. Pictograms 3.4. Product modification 3.5. Power supply 3.6. Storage and Installation 4. Getting Started 4.1. Opening your product 4.2.
  • Page 3 9. Returns and Damaged Products 9.1. What do I do if my order arrives and something the product is faulty or is physically damaged? 9.2. What happens after I have requested a Return? 10. Compliance and Standards PP15C Página 2 de 27...

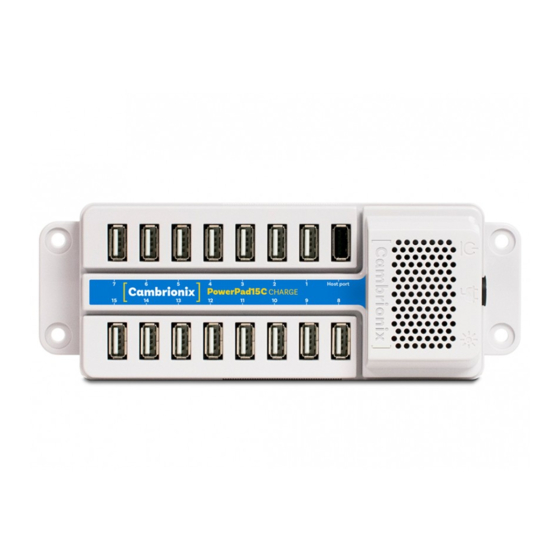

  • Page 4: Your Pp15C At A Glance

    (up to 2,1  A). The firmware can be updated to enable new charging profiles to be added, ensuring the PP15C can charge the latest devices. It is ready to charge out-of-the-box.

  • Page 5: Safety

    This manual has been arranged to follow IEC/ICEE 82079-1 standard. This is to facilitate the easier understanding and location of information relating to the PP15C. Any errors or omissions can be reported using our support ticket system (seeHelp and Support).

  • Page 6: Safety Alert Symbol

    Mandatory regulation 3.4. Product modification Cambrionix products are designed and manufactured to meet the requirements of UK and International safety regulations. Modifications to the product could affect safety and render the product non-compliant with relevant safety standards, resulting in injury or damage to the product.

  • Page 7: Power Supply

    Do not disconnect the power cord while the product is being used. Do not bend or pull the power cord with excessive force. Do not use a power supply that exceeds the power supply specifications within this manual PP15C Página 6 de 27...

  • Page 8: Storage And Installation

    Do not place the power cord near heat sources. Connect the plug to an earthed socket. PRECAUCIÓN Damage to your Cambrionix product may occur Operate the product only in an environment where the ambient temperature is inside the operating temperature range.

  • Page 9: Getting Started

    As well as a guide for product safety-related information. The PP15C is intended to be used in an indoor static environment in which the environment falls within the tested specifications to provide charge, sync and management functionality. Please see the physical specifications section of this manual for information on the environment specifications.

  • Page 10: Conexión A La Red Eléctrica

    2,1  A while transferring data. 4.4. Charging Your PP15C will allow your device to charge at the maximum rate possible up to 2,1  A. The way that charging takes place is the PP15C will provide the device with a capability to charge and the devices USB charging controller will determine the maximum amount of charge it wants to draw down.

  • Page 11: Registration

    Device Information Plate which is either on the underside or back of the unit. Providing serial and Purchase  order numbers, can help identify the product in question faster, and speed up the process. PP15C Página 10 de 27...

  • Page 12: Using Your Pp15C

    In this section, you can find information using your hub in charge or sync application. You can also find information on managing your hub, changing port modes, connecting multiple hubs to one host and using Cambrionix Software. 5.1. Using without connecting to host When the Hub is switched on and is not connected to a local host computer it is automatically configured to charge devices using its intelligent charging algorithm.

  • Page 13: Cleaning Your Pp15C

    If there is a dirt/ spillage over a ventilation slot, external data/ power connector or product aperture, please remove power from the unit without touching the liquid and contact Cambrionix immediately Asegúrese de que el producto esté apagado y de que el cable de alimentación se haya desconectado del producto.

  • Page 14: Product Specifications

    6. Product Specifications The PP15C is manufactured in the UK 6.1. Requisitos de la alimentación entrante Voltaje de entrada 12  V  CC Corriente de entrada 15  A Conexión de entrada DIN de 4 pines 6.2. Potencia de salida Voltaje de salida 5,0 ...

  • Page 15: Información Empaquetada

    Dimensiones en caja 0,47 x 0,12 x 0,31 m 6.6. Consumibles y realización de pedidos Below is a list of any Consumable products you may require for your PP15C including the cables you will require to connect devices to the hub. Cables 15 x USB 2.0 tipo A...

  • Page 16: Power Supply

    6.7. Power Supply Input Voltage 100-240VAC 4A @ 115VAC Input Current 2A @ 230VAC Input Frequency 50-60Hz Input Connector Output Voltage Output Current Output Power (Max) 180W Output Connector 4-pin DIN Dimensions 210 x 85 x 46mm PP15C Página 15 de 27...
  • Page 17 Alfiler Función *-V está conectado a tierra de entrada de CA. PP15C Página 16 de 27...

  • Page 18: Troubleshooting

    7. Troubleshooting If you experience any issues with your PP15C; please try the following solutions, if your issue is not addressed in this section, please get in touch with your local vendor or Cambrionix. 7.1. Initial troubleshooting tips Some tips and information to check first.

  • Page 19: Device Connection

    0000000000000000 Conexión de dispositivo inestable Some devices can have unstable connections with your host system through the PP15C. We have only observed this behaviour in a very few amount of devices, disabling CDP this has resolved all issues and the connections are stable.

  • Page 20: Hub Connection Issues

    Una forma mucho más sencilla es usar cables USB2 en lugar de cables USB3, limitando la conexión a USB2. 7.5. Hub connection issues If you have issues with the hub and connecting to your host system, please see below troubleshooting solutions. PP15C Página 19 de 27...

  • Page 21: No Gui

    El concentrador no se conecta al host If you see that the PP15C is not connecting to the host system, one of the issues may be caused by the USB  drivers on your host system not being up to date. Es una buena práctica asegurarse de que tiene instalados los últimos controladores y actualizaciones en su sistema...

  • Page 22: Software Troubleshooting

    Some users have noted that the API  can cause a high level of CPU  usage. This can sometimes be linked to the API  recorder service. If you are finding this and you are not using it then we would reccommend to uninstall it from your system entirely. PP15C Página 21 de 27...

  • Page 23: Disposal

    August 12, 2005, and should not be disposed of as unsorted municipal waste. Please utilize your local WEEE  collection facilities in the disposition of this product and otherwise observe all applicable requirements. Cambrionix PRN (Producer Registration Number) For the UK is "WEE/BH191TT". PP15C Página 22 de 27...

  • Page 24: Returns And Damaged Products

    9.2. What happens after I have requested a Return? If you have not purchased the Product(s)  direct from Cambrionix please contact the vendor the item was originally purchased from for their returns process.

  • Page 25: Compliance And Standards

    Cumple los requisitos de seguridad de la norma EN  60950 para equipos informáticos Alojado en una envolvente a prueba de incendios de la especificación UL94-VO Cumplimiento de RoHS Probado independientemente por Underwriters Laboratory (UL) con el número de expediente #E346549 PP15C Página 24 de 27...
  • Page 26 This manual may make reference to trademarks, registered trademarks, and other protected names and /or symbols of third-party companies not related in any way to Cambrionix. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by Cambrionix, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
  • Page 27 Cambrionix Patents Application Title Link Grant Number Number Syncing and Charging GB2489429 1105081.2 2489429 Port CAMBRIONIX UK00002646615 2646615 00002646615 CAMBRIONIX VERY UK00002646617 2646617 00002646617 INTELLIGENT... MOD IT DS GB2591233 6089600 6089600 MOD IT eSearch 007918669 007918669 MOD IT 90079186690001 007918669-0001 90079186690001...
  • Page 28 MOD IT STACK 29/735,475 D936,000 MOD IT DS  LUGS 6089601 6089601 6089601 MOD IT MM 6089602 6089602 6089602 MOD IT DS  LUGS 6089603 6089603 6089603 MOD IT STACK 6089604 6089604 6089604 MOD IT 6089605 6089605 6089605 PP15C Página 27 de 27...
  • Page 29 The Maurice Wilkes Building Cowley Road Cambridge CB4 0DS Reino Unido +44 (0) 1223 755 520 enquiries@cambrionix.com www.cambrionix.com Cambrionix Ltd es una empresa registrada en Inglaterra y Gales con el número de empresa 06210854 2023-01 © 2022 Cambrionix Ltd. Todos los derechos reservados.
